直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4114NHU-295FAN AXIAL 119X38MM 24VDC WIRE |
233 | - |
|
数据表 |
4100NU | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | - | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 57.0dB(A) | 11 W | UL | 4400 RPM | -4 ~ 131°F (-20 ~ 55°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
8214J/2H4PFAN AXIAL 80MM BALL 24VDC WIRE |
65 | - |
|
数据表 |
8200J | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 129.4 CFM (3.62m³/min) | 2.850 in H2O (709.9 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 71.0dB(A) | 37 W | CE, CSA, UL, VDE | 14000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

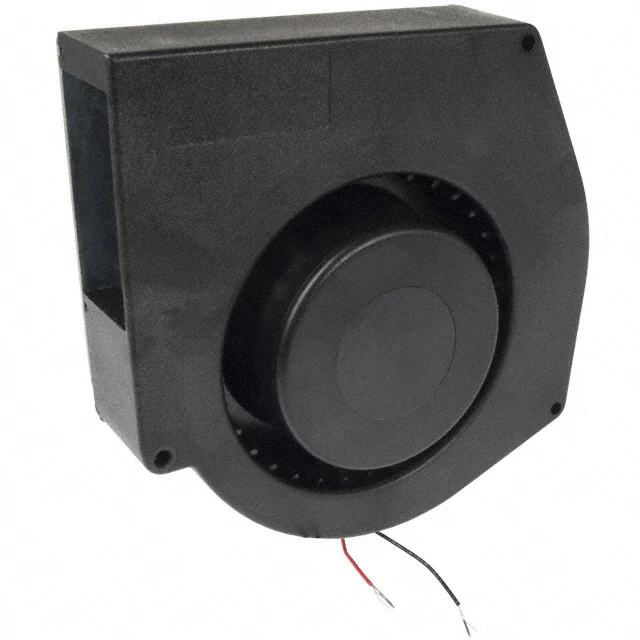

19032183AFAN BLOWER 160.7X50.2MM SPD24B1 |
92 | - |
|
数据表 |
Spinnaker | Bulk | Active | 24VDC | Rectangular/Rounded - 160.7mm L x 161.3mm H | 60.0 CFM (1.68m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 2.1 lbs (952.5 g) | Blower | Auto Restart, Locked Rotor Protection | 50.20mm | 57.0dB(A) | 30 W | UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

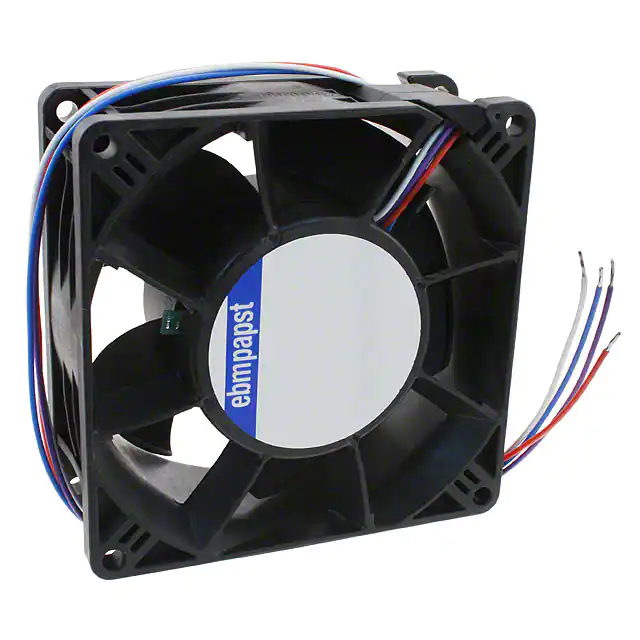

3214J/2H4PFAN AXIAL 92X38MM 24VDC WIRE |
43 | - |
|
数据表 |
3200J | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 165.0 CFM (4.62m³/min) | - | Ball | 0.62 lb (281.23 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 76.0dB(A) | 50 W | CE, CSA, EAC, UL, VDE | 13000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
QG030-303/14FAN BLOWER CF 363X47.5MM 24VDC |
258 | - |
|
数据表 |
QG030 | Box | Active | 24VDC | Rectangular - 363mm L x 50mm H | 82.2 CFM (2.30m³/min) | - | Ball | 0.838 lb (380.11 g) | Blower, Cross Flow | - | 47.50mm | 51.0dB(A) | 8.7 W | CE, CSA, UL, VDE | - | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
3212J/2H4PFAN AXIAL 92X38MM 12VDC WIRE |
365 | - |
|
数据表 |
3200J | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 165.0 CFM (4.62m³/min) | - | Ball | 0.62 lb (281.23 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 76.0dB(A) | 50 W | CSA, UL, VDE | 13000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
3214JH3FAN AXIAL 92X38MM 24VDC WIRE |
592 | - |
|
数据表 |
3200J | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 139.5 CFM (3.91m³/min) | - | Ball | 0.617 lb (279.87 g) | Tubeaxial | - | 38.00mm | 69.0dB(A) | 30 W | CSA, UL, VDE | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
QG030-198/14FAN BLOWER CF 258X47.5MM 24VDC |
809 | - |
|
数据表 |
QG030 | Box | Active | 24VDC | Rectangular - 258mm L x 50mm H | 59.0 CFM (1.65m³/min) | - | Ball | 0.639 lb (289.85 g) | Blower, Cross Flow | - | 47.50mm | 51.0dB(A) | 8 W | CE, CSA, UL, VDE | - | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
9WL0912P1H001FAN AXIAL 92X38MM 12VDC WIRE |
94 | - |
|
数据表 |
San Ace 92W | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 130.6 CFM (3.66m³/min) | 1.726 in H2O (429.9 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 61.0dB(A) | 22.8 W | cURus, TUV | 9000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL0924P1H001FAN AXIAL 92X38MM 24VDC WIRE |
51 | - |
|
数据表 |
San Ace 92W | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 130.6 CFM (3.66m³/min) | 1.726 in H2O (429.9 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 61.0dB(A) | 22.8 W | cURus, TUV | 9000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
RG125-19/12N/12FAN BLOWER CF 180X40MM 12VDC |
87 | - |
|
数据表 |
RG125N | Bulk | Active | 12VDC | Square - 180mm L x 180mm H | 51.5 CFM (1.44m³/min) | - | Ball | 1.6 lbs (725.7 g) | Blower, Centrifugal | Speed Sensor (Tach) | 40.00mm | - | 5.2 W | - | 2550 RPM | -22 ~ 167°F (-30 ~ 75°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
MD4028U12B1-RSRFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 21.1 CFM (0.591m³/min) | 0.906 in H2O (225.6 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.00mm | 50.0dB(A) | - | cUL, TUV, UL | 13000 RPM | - | 3 Wire Leads | - |
|
|
DC0922548U2B-BT0FAN 92X25MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 14.4 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0351012W2B-3T3FAN 35X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 840 mW | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
03828DA-12R-AT-00DC AXIAL FAN |
0 | - |
|
数据表 |
03828DA | Box | Active | 12VDC | Square - 38mm L x 38mm H | 21.8 CFM (0.610m³/min) | 2.610 in H2O (650.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 58.0dB | 7.56 W | - | 22000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
03828DA-12R-AL-00DC AXIAL FAN |
0 | - |
|
数据表 |
03828DA | Box | Active | 12VDC | Square - 38mm L x 38mm H | 21.8 CFM (0.610m³/min) | 2.610 in H2O (650.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.00mm | 58.0dB | 7.56 W | - | 22000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602512J2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 960 mW | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0602512L2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.44 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0602512M2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 1.8 W | CE, cURus, TUV | 4250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0602512H2B-3T3FAN 60X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.6 CFM (0.941m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3.36 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
