直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19028935AFAN AXIAL 79.8X41.8MM 48V SD48B1 |
431 | - |
|
数据表 |
Sprite | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

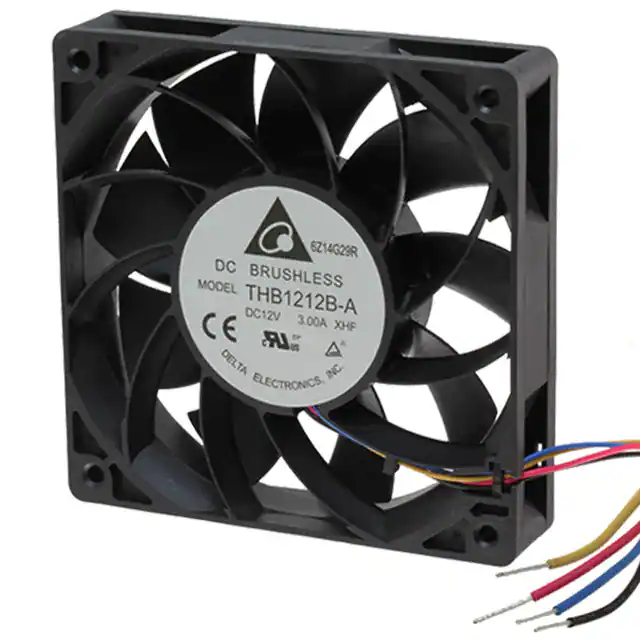

THB1212B-AXHFFAN AXIAL 120X25.4MM 12VDC WIRE |
218 | - |
|
数据表 |
THB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 184.2 CFM (5.16m³/min) | 0.899 in H2O (223.9 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 59.0dB(A) | 19.2 W | CE, cURus, TUV | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

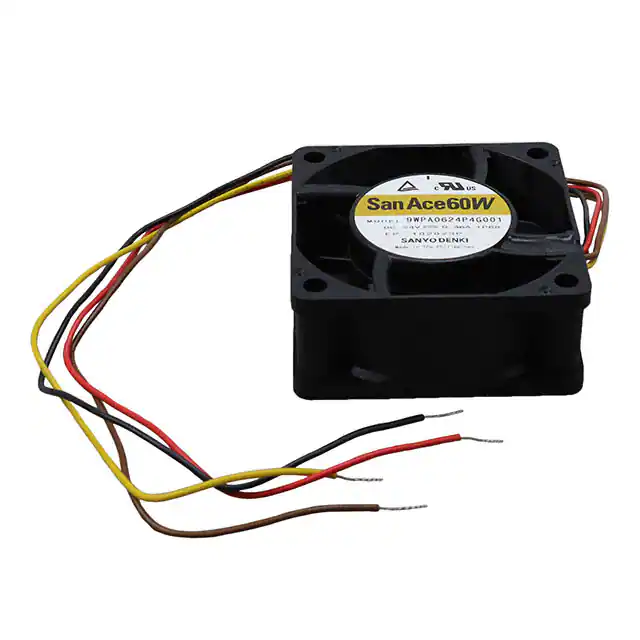

9WPA0624P4G001FAN AXIAL 60X25MM 24VDC WIRE |
256 | - |
|
数据表 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 56.0dB(A) | 11.04 W | - | 12000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

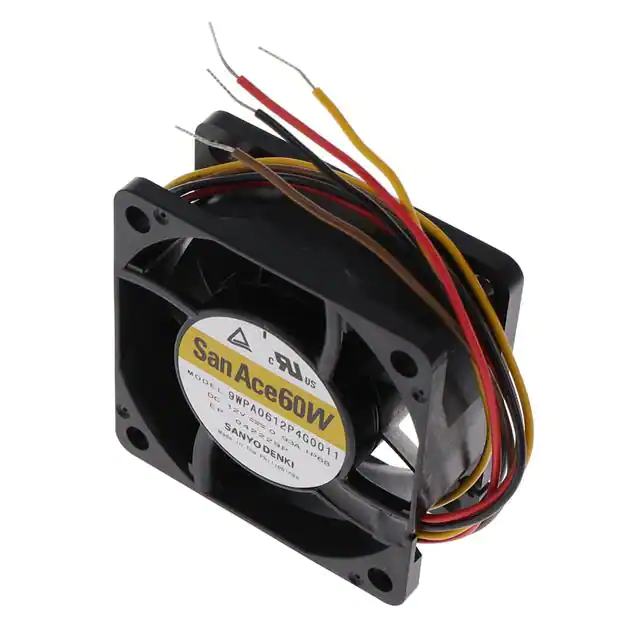

9WPA0612P4G0011FAN AXIAL 60X25MM 12VDC WIRE |
71 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 56.0dB(A) | 11.16 W | - | 12000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
4184NXHFAN AXIAL 119X38MM 24VDC TERM |
611 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 139.5 CFM (3.91m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | - | 38.00mm | 57.0dB(A) | 11 W | CSA, UL, VDE | 4400 RPM | -22 ~ 158°F (-30 ~ 70°C) | 2 Terminals | - |
|
OD4510-05MS01AFAN AXIAL 45X10MM 5VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 5VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-12HS01AFAN AXIAL 45X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-12HS02AFAN AXIAL 45X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-12LS01AFAN AXIAL 45X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-12LS02AFAN AXIAL 45X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-12MS01AFAN AXIAL 45X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-12MS02AFAN AXIAL 45X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 12VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-24HS01AFAN AXIAL 45X10MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 24VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-24LS01AFAN AXIAL 45X10MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 24VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD4510-24MS01AFAN AXIAL 45X10MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 24VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
OD5015-24HHSXC01AFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
OD5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | - | - | UR | - | - | 3 Wire Leads | - |
|
|
OD5015-24HHSXC02AFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
OD5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | - | - | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 15.00mm | - | - | UR | - | - | 3 Wire Leads | - |
|
|
OD5015-24HSXC01AFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
OD5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | - | - | UR | - | - | 3 Wire Leads | - |
|
|
OD5015-24HSXC02AFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
OD5015 | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | - | - | Sleeve | - | Tubeaxial | Locked Rotor Sensor | 15.00mm | - | - | UR | - | - | 3 Wire Leads | - |
|
OD6025-12LBIP55FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.080 in H2O (20.0 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 19.0dB(A) | 1 W | cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
