直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4510-05LS01AFAN AXIAL 45X10MM 5VDC WIRE |
0 | - |
|
数据表 |
OD4510 | Bulk | Active | 5VDC | Square - 45mm L x 45mm H | - | - | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
4414F/2FAN AXIAL 119X25.4MM 24VDC WIRE |
351 | - |
|
数据表 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.386 lb (175.09 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 43.0dB(A) | 5 W | - | 2900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
9GV0824P1G03FAN AXIAL 80X38MM 24VDC WIRE |
365 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 0.485 lb (220.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 38.4 W | CSA, TUV, UL | 10200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

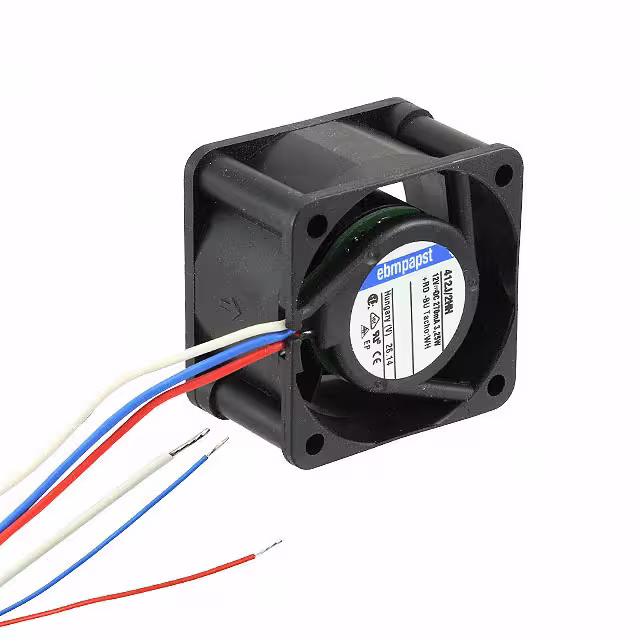

412J/2HHFAN AXIAL 40X25.4MM 12VDC WIRE |
475 | - |
|
数据表 |
400J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 14.1 CFM (0.395m³/min) | - | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 46.0dB(A) | 3.3 W | - | 13000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
9CRA0612P6K001FAN AXIAL DUAL 60X56MM 12VDC |
3,120 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 80.2 CFM (2.25m³/min) | 4.540 in H2O (1130.8 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 56.00mm | 73.0dB(A) | 37.2 W | cURus, TUV | 18300 Front, 15800 Rear | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads per Fan | - |
|

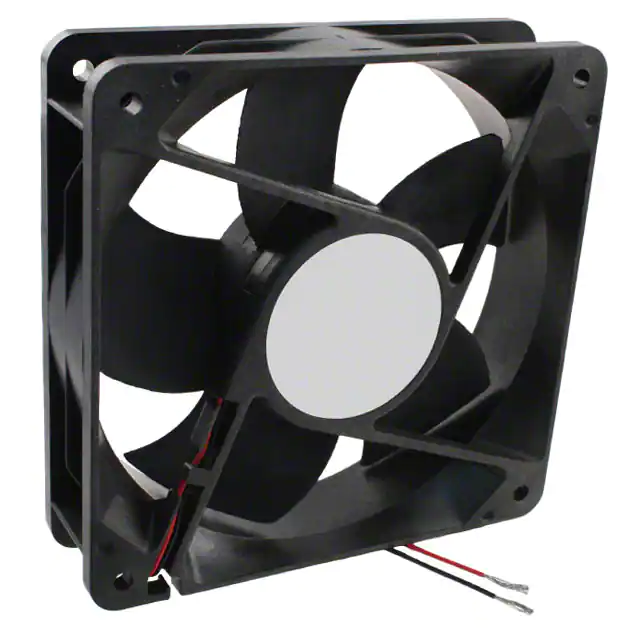

19030572AFAN AXIAL 120X32MM 24VDC MC24B3 |
639 | - |
|
数据表 |
Muffin | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | - | Ball | 0.529 lb (239.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 47.8dB(A) | 6.7 W | CE, cUL, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GV0912P1G03FAN AXIAL 92X38MM 12VDC WIRE |
444 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 189.0 CFM (5.29m³/min) | 1.730 in H2O (430.9 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 68.0dB(A) | 49.2 W | CSA, TUV, UL | 9000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
PFR1212DHE-SP00FAN AXIAL 120X38MM 12VDC WIRE |
2,589 | - |
|
数据表 |
PFR | Box | Active | 12VDC | Square - 120mm L x 120mm H | 254.3 CFM (7.12m³/min) | 1.438 in H2O (358.2 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 68.5dB(A) | 44.4 W | CE, cURus, VDE | 7400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

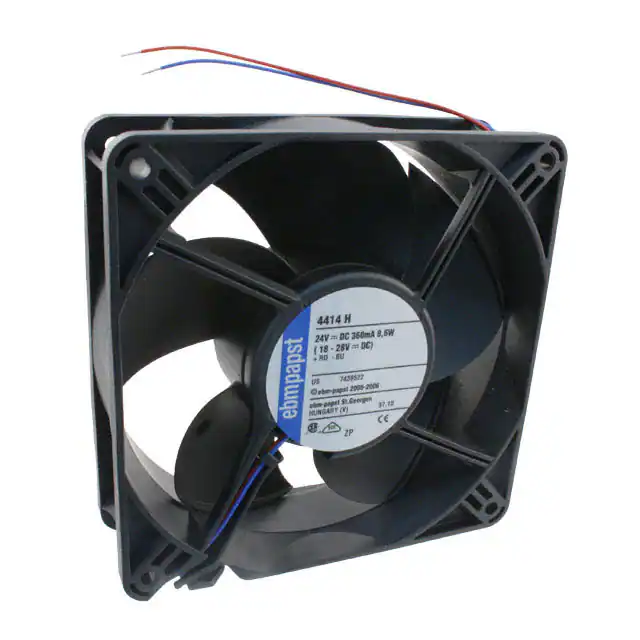

4414HFAN AXIAL 119X38MM 24VDC WIRE |
638 | - |
|
数据表 |
4400 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 141.3 CFM (3.96m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 50.0dB(A) | 8.6 W | CSA, UL, VDE | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9BFB12P2H003FAN BLOWER 120X32MM 12VDC WIRE |
1,067 | - |
|
数据表 |
San Ace B120 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 56.5 CFM (1.58m³/min) | 5.020 in H2O (1250.0 Pa) | Ball | 0.75 lb (340.19 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 62.0dB(A) | 27.6 W | cURus, TUV | 3750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

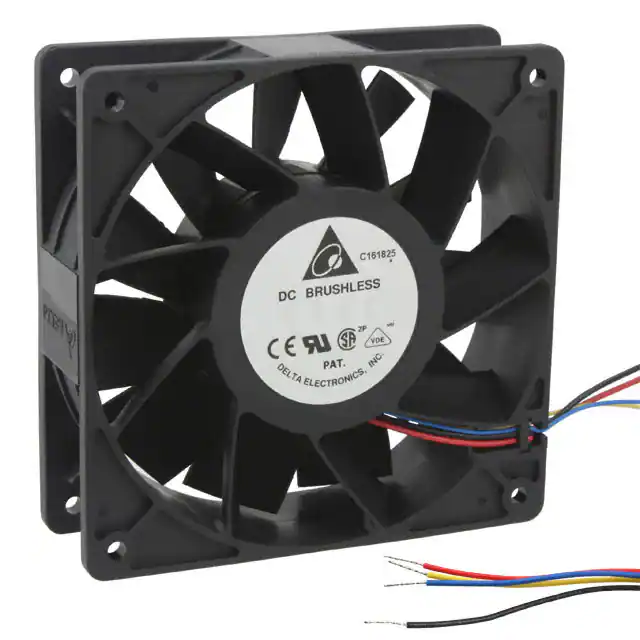

PFC1212DE-F00FAN AXIAL 120X38MM 12VDC WIRE |
471 | - |
|
数据表 |
PFC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.5dB(A) | 48 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
|
9RA1248P1K001120X38MM 48VDC TACH/PWM |
210 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 12 W | cURus, TUV | 4700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
8314/2HFAN AXIAL 80X32MM 24VDC WIRE |
1,075 | - |
|
数据表 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 48.0dB(A) | 6 W | - | 5000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|

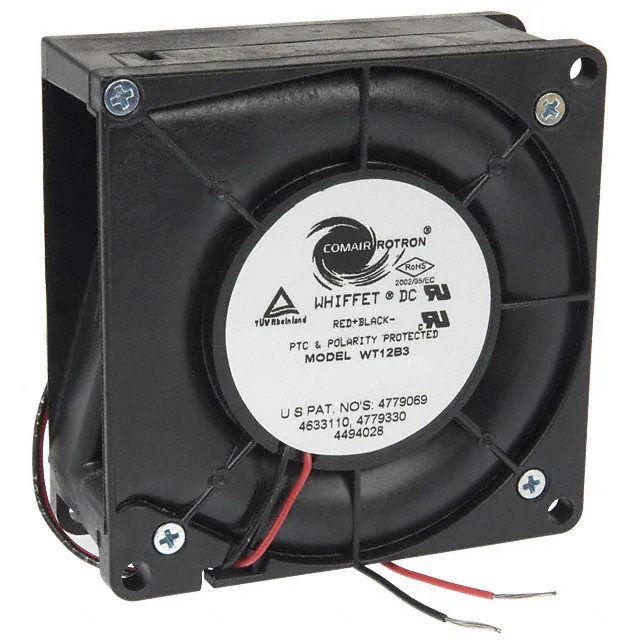

19031101AFAN BLOWER 80X32.4MM 12V WT12B3 |
832 | - |
|
数据表 |
Whiffet | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.0 CFM (0.420m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 0.369 lb (167.38 g) | Blower | Auto Restart, Locked Rotor Protection | 32.40mm | 51.4dB(A) | 5 W | CE, cUL, UL | 4050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
12038VE-24R-GUE-2120X120X38MM, 24VDC, 6,400 RPM, |
147 | - |
|
数据表 |
12038VE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 244.0 CFM (6.90m³/min) | 1.490 in H2O (371.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB | 38.4 W | CE, cURus, VDE | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
AFB1248VHE-TP18FAN AXIAL 120X38MM 48VDC WIRE |
897 | - |
|
数据表 |
AFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 55.5dB(A) | 14.88 W | CE, CSA, UL, VDE | 4100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | - |
|
19032526AFAN AXIAL 120X38.1MM 24V MS24B3 |
252 | - |
|
数据表 |
Muffin XP | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 49.1dB(A) | 7 W | cUL, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9HV0924P4G001FAN AXIAL 92X25.2MM 24VDC WIRE |
81 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 118.0 CFM (3.30m³/min) | 1.120 in H2O (279.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 56.0dB(A) | 14.64 W | cURus, TUV | 7350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

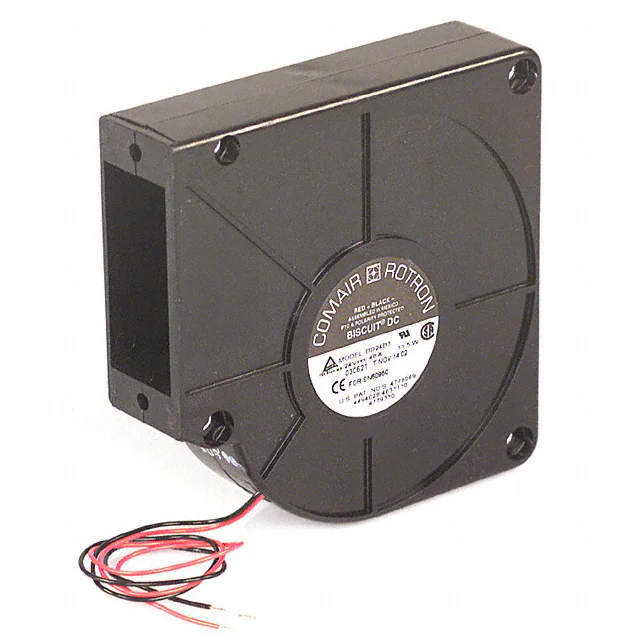

19030621AFAN BLOWER 120.7X31MM 24V BD24B3 |
222 | - |
|
数据表 |
Biscuit | Bulk | Active | 24VDC | Square/Rounded - 120.7mm L x 120.7mm H | 26.0 CFM (0.728m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 0.619 lb (280.77 g) | Blower | Auto Restart, Locked Rotor Protection | 31.00mm | 51.2dB(A) | 11.5 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9WL0412P3G001FAN AXIAL 40X28MM 12VDC WIRE |
2,409 | - |
|
数据表 |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.7 CFM (0.552m³/min) | 1.245 in H2O (310.0 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 47.0dB(A) | 4.8 W | CSA, TUV, UL | 15500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
