直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0922548M2B-3T0FAN 92X25MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 6.72 W | CE, cURus | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
F8025E12B-FSR-CCFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Conformal Coating, Locked Rotor Protection | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
F8025E24B-FHR-CCFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 25.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
05125GS-12N-AAD-0FAN BLOWER 51X25MM 12VDC WIRE |
523 | - |
|
数据表 |
0512GS | Box | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 7.1 CFM (0.199m³/min) | 0.680 in H2O (169.4 Pa) | Ball | - | Blower | Auto Restart | 25.00mm | 39.0dB | 2.4 W | - | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB0312HA-A116FAN BLOWER 30X10MM 12VDC |
3,046 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Protection | 10.00mm | 29.0dB(A) | 720 mW | CE, CSA, UL, VDE | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
AFB0412VHA-AF00FAN AXIAL 40X10MM 12VDC WIRE |
770 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.242 in H2O (60.3 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 35.5dB(A) | 720 mW | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24M-AL-00FAN AXIAL 40X20MM 24VDC WIRE |
402 | - |
|
数据表 |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 29.0dB | 1.2 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
04020VA-12M-AL-00FAN AXIAL 40X20MM 12VDC WIRE |
292 | - |
|
数据表 |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 29.0dB | 1 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

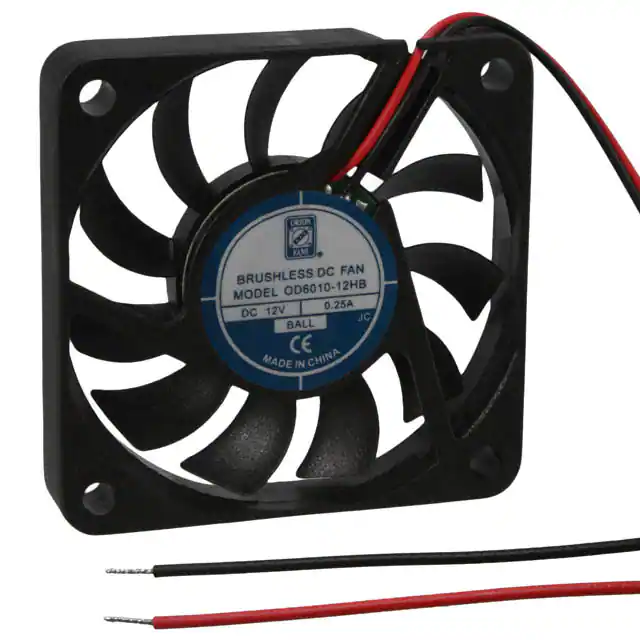

OD6010-12HBFAN AXIAL 60X10.5MM 12VDC WIRE |
1,977 | - |
|
数据表 |
OD6010 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.0 CFM (0.588m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | - | 10.50mm | 36.0dB | - | cURus, TUV | 4600 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
AUC0512DB-AF00FAN AXIAL 50X15MM 12VDC WIRE |
7,578 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.2 CFM (0.566m³/min) | 0.299 in H2O (74.5 Pa) | Superflo | 0.045 lb (20.41 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 38.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 7400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
CFM-4020BG-1165-498FAN AXIAL 40X20MM 12VDC WIRE |
278 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.4 CFM (0.543m³/min) | 1.080 in H2O (269.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 49.8dB(A) | 7.08 W | CE, cURus, TUV | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06025SA-24T-EA-D0FAN AXIAL 60X25MM 24VDC WIRE |
251 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 37.8 CFM (1.06m³/min) | 0.640 in H2O (159.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 47.0dB | 4.3 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

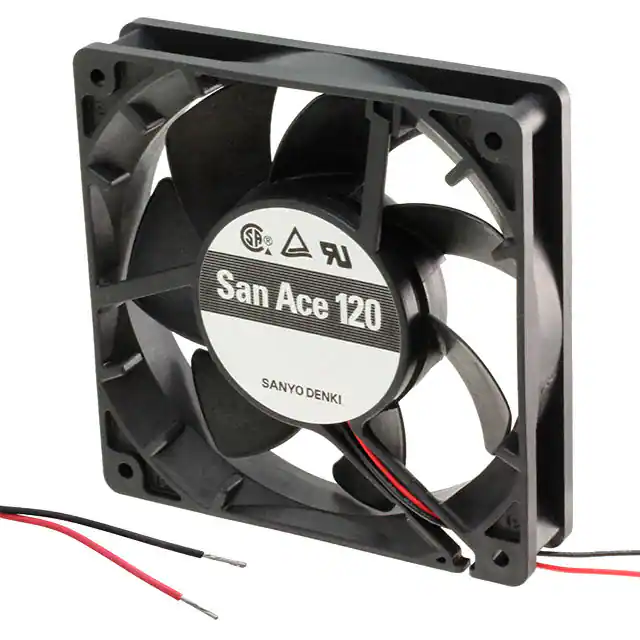

9G1224H102FAN AXIAL 119X38MM 24VDC WIRE |
3,784 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

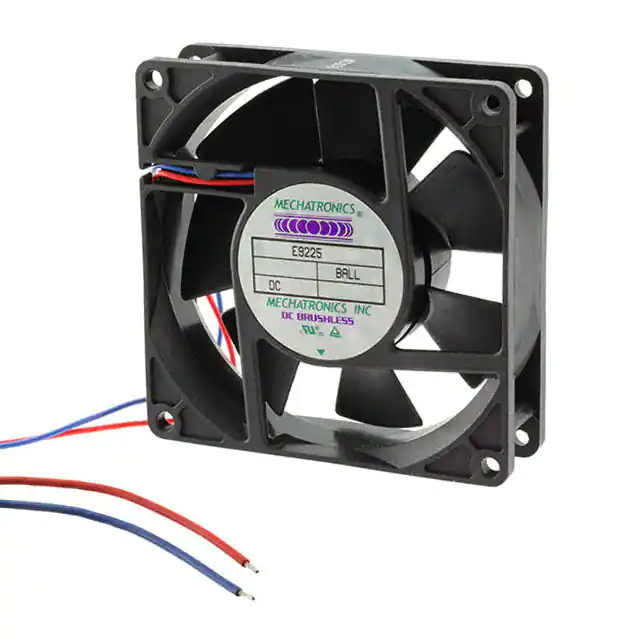

E9225E24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
954 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
E9225X24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
368 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 60.0 CFM (1.68m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 43.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
E9225H24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
232 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 51.0 CFM (1.43m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
DC0401024V2B-BT0FAN 40X10MM 24VDC PWM/TACH |
380 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 39.0dB(A) | 2.16 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
9G1224H1D01FAN AXIAL 119X38MM 24VDC WIRE |
2,101 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

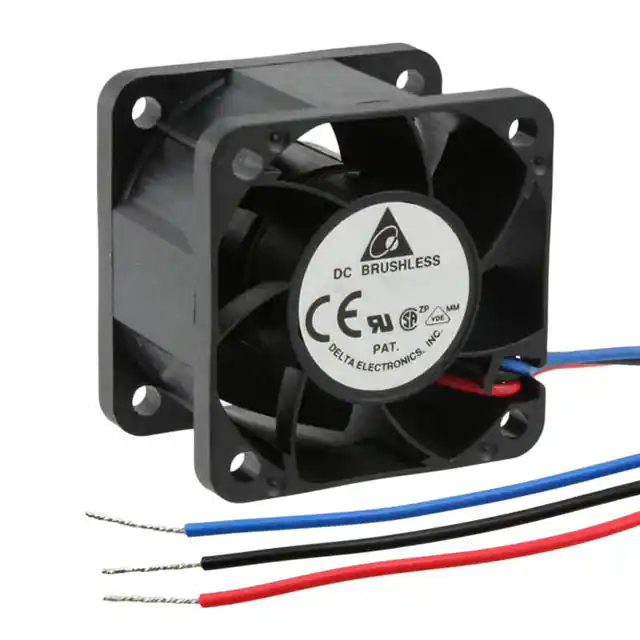

FFB0412VHN-F00FAN AXIAL 40X28MM 12VDC WIRE |
3,415 | - |
|
数据表 |
FFB | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 45.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MEC0251V1-000U-A99FAN AXIAL 120X25MM 12VDC WIRE |
6,005 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 5.5 W | CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
