直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0401524M2B-BT4FAN 40X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.88 W | CE, cURus | 7300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|

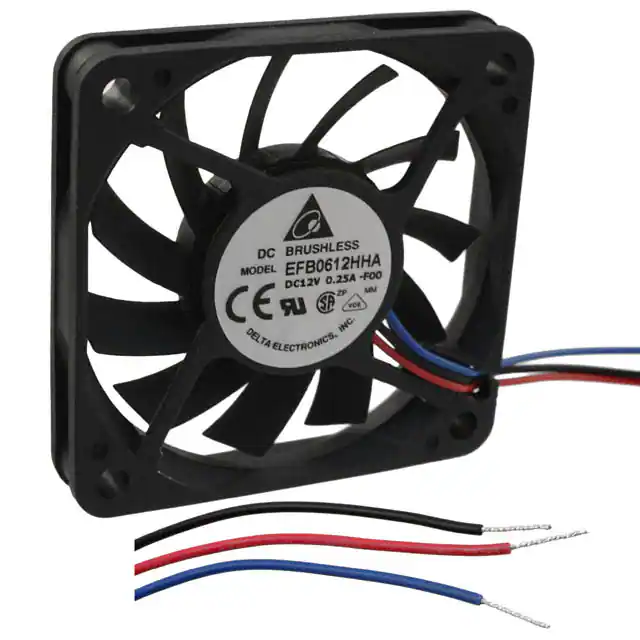

EFB0612HHA-F00FAN AXIAL 60X10MM 12VDC WIRE |
12,143 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 36.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602024J2B-BT4FAN 60X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 24.0dB(A) | 1.68 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
MD4028X24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
3,157 | - |
|
数据表 |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 47.3dB(A) | - | cUL, TUV, UL | 11500 RPM | - | 2 Wire Leads | - |
|

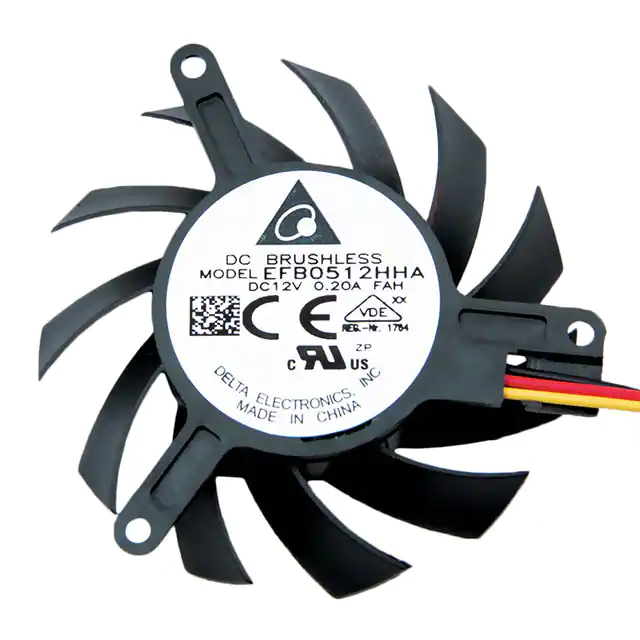

EFB0512HHAFAHFAN AXL FRAMELSS 45X9.8MM 12VDC |
727 | - |
|
数据表 |
EFB - Frameless | Box | Active | 12VDC | Round - 45mm Dia | 7.5 CFM (0.210m³/min) | 0.056 in H2O (14.0 Pa) | Ball | 0.027 lb (12.25 g) | Tubeaxial, Frameless | Locked Rotor Protection, Speed Sensor (Tach) | 9.80mm | 29.5dB(A) | 1.56 W | CE, cURus, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

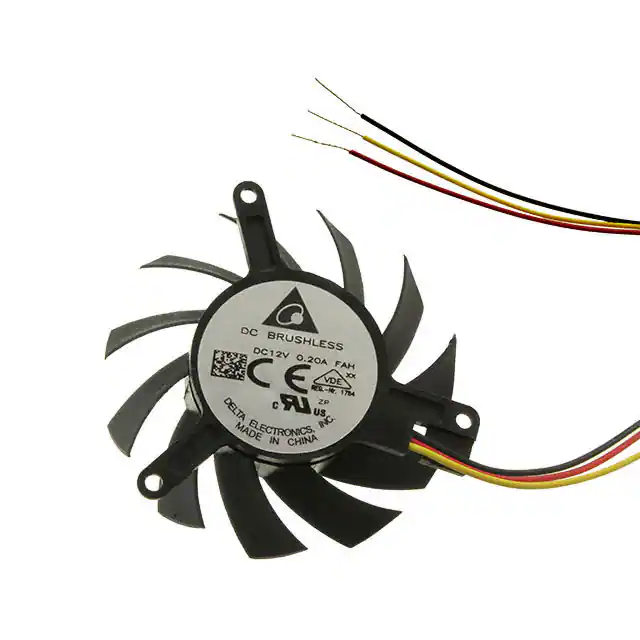

EFB0612HHAF99FAN AXL FRAMELSS 56X10.7MM 12VDC |
272 | - |
|
数据表 |
EFB - Frameless | Box | Active | 12VDC | Round - 56mm Dia | 15.0 CFM (0.420m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.038 lb (17.24 g) | Tubeaxial, Frameless | Locked Rotor Protection, Speed Sensor (Tach) | 10.70mm | 39.0dB(A) | 2.4 W | CE, cURus, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
08020SA-24N-EA-00FAN AXIAL 80X20MM 24VDC WIRE |
794 | - |
|
数据表 |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | 0.176 lb (79.83 g) | Tubeaxial | - | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
04020VA-12N-AA-00FAN AXIAL 40X20MM 12VDC WIRE |
338 | - |
|
数据表 |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.2 CFM (0.286m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 32.5dB | 1.3 W | - | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AUB0812VH-SP00FAN AXIAL 80X25.4MM 12VDC |
102 | - |
|
数据表 |
AUB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Superflo | 0.219 lb (99.34 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 39.0dB(A) | 2.28 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|

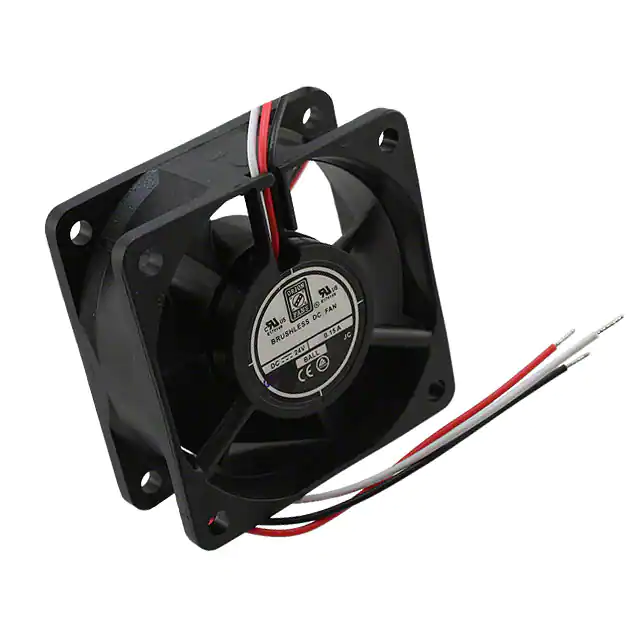

OD6025-24HB01AFAN AXIAL 60X25MM 24VDC WIRE |
5,835 | - |
|
数据表 |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 2.8 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|

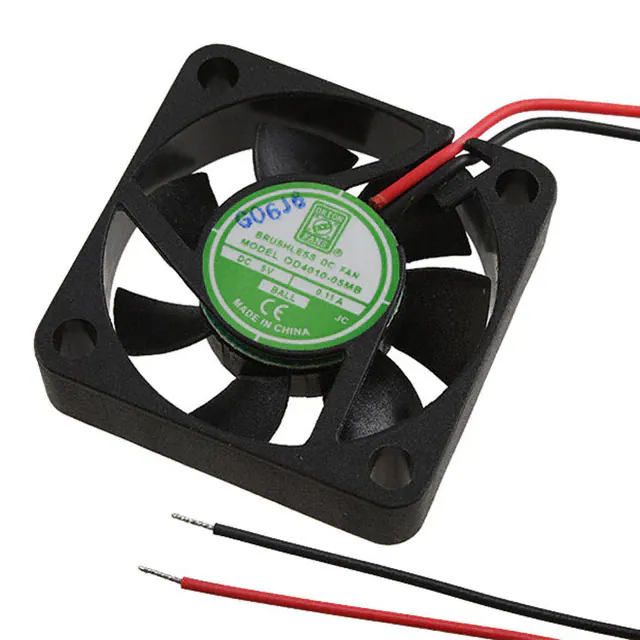

OD4010-05MBFAN AXIAL 40X10.5MM 5VDC WIRE |
161 | - |
|
数据表 |
OD4010 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 26.3dB | - | CE, cURus, TUV, UR | 6000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

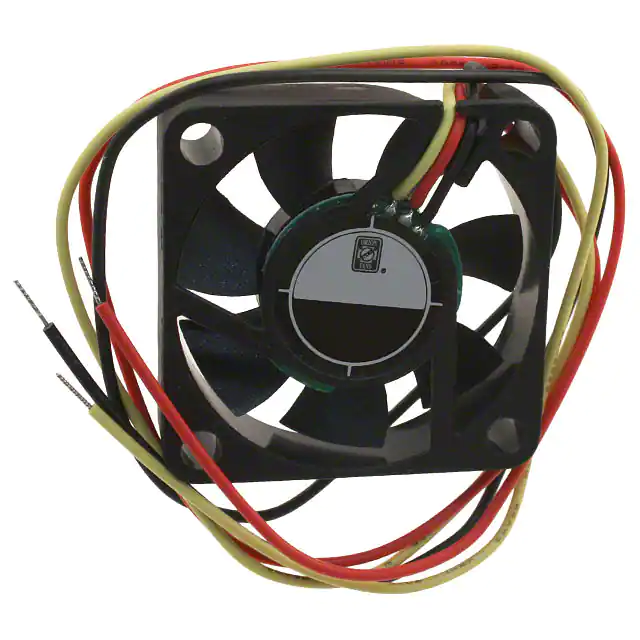

OD4010-24HB02AFAN AXIAL 40X10.5MM 24VDC WIRE |
16,239 | - |
|
数据表 |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 10.50mm | 33.4dB | 1.45 W | CE, cURus, TUV, UR | 8000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|

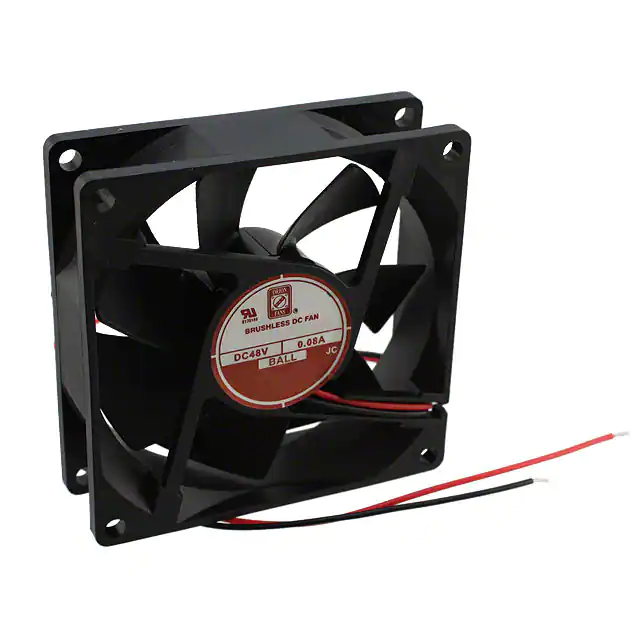

OD8025-48HBFAN AXIAL 80X25MM 48VDC WIRE |
3,642 | - |
|
数据表 |
OD8025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 3.8 W | cURus | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
F17HA-05HCFAN AXIAL 17X8MM 5VDC WIRE |
2,834 | - |
|
数据表 |
F17HA | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 0.636 CFM (0.018m³/min) | 0.068 in H2O (17.0 Pa) | Sleeve | 0.005 lb (2.27 g) | Tubeaxial | - | 8.00mm | 15.0dB(A) | 150 mW | - | 11000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
MH4028H24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
422 | - |
|
数据表 |
MH4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 21.1 CFM (0.591m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, Thermal Overload Protector (TOP) | 28.00mm | 52.0dB(A) | - | - | 13000 RPM | - | 2 Wire Leads | - |
|
OD3510-12MBFAN AXIAL 35X10MM 12VDC WIRE |
561 | - |
|
数据表 |
OD3510 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | - | 10.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD3510-05LLBFAN AXIAL 35X10MM BALL 5VDC WIRE |
153 | - |
|
数据表 |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 3.0 CFM (0.084m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.02 lb (9.07 g) | Tubeaxial | - | 10.00mm | 17.0dB(A) | 300 mW | CE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD6025-24HBIP68FAN AXIAL 60X25MM 24VDC WIRE |
8,851 | - |
|
数据表 |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (55.0 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 3.4 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
DC0602024L2B-BT4FAN 60X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 26.0dB(A) | 2.16 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
05020GA-05L-AT-00DC BLOWER |
0 | - |
|
数据表 |
05020GA | Box | Active | 5VDC | Square/Rounded - 53mm L x 50mm H | 4.6 CFM (0.129m³/min) | 0.498 in H2O (124.0 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 20.00mm | 27.0dB | 1.7 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
