直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

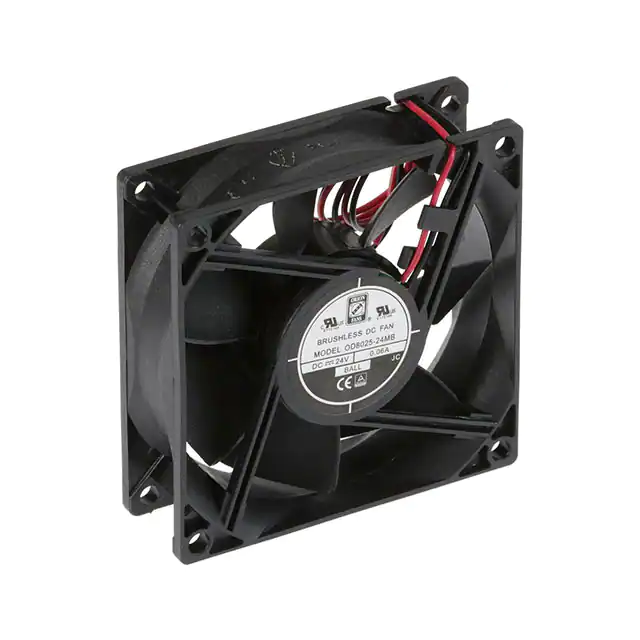

OD8025-24MBFAN AXIAL 80X25MM 24VDC WIRE |
1,202 | - |
|
数据表 |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 28.0dB | 0.96 W | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

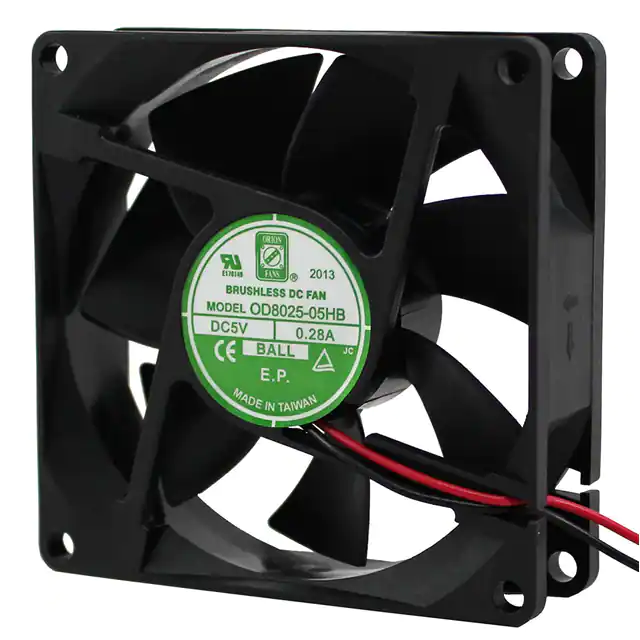

OD8025-05HBFAN AXIAL 80X25MM BALL 5VDC WIRE |
1,115 | - |
|
数据表 |
OD8025-05 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 35.0 CFM (0.980m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 32.0dB | - | CE, cURus, TUV, UR | 2800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD6025-05HBFAN AXIAL 60X25MM BALL 5VDC WIRE |
1,108 | - |
|
数据表 |
OD6025 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 1.8 W | cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

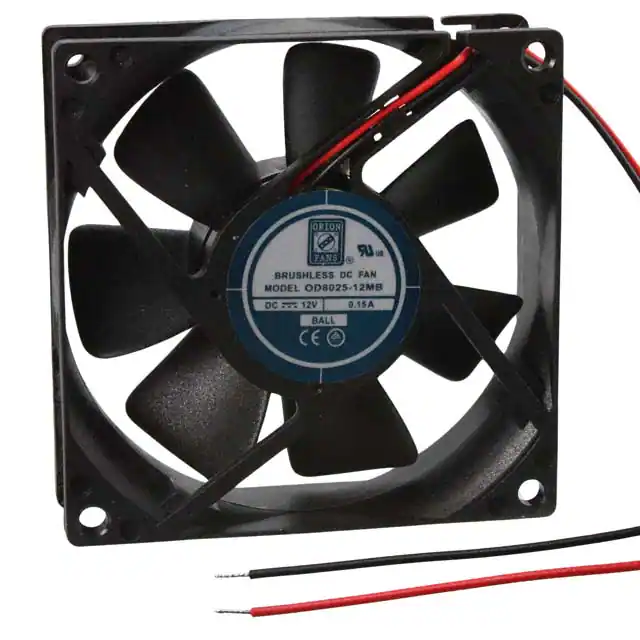

OD8025-12MBFAN AXIAL 80X25MM 12VDC WIRE |
922 | - |
|
数据表 |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 28.0dB | 0.96 W | cURus, TUV | 2500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
OD8015-12HBFAN AXIAL 80X15MM 12VDC WIRE |
862 | - |
|
数据表 |
OD8015 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | - | 15.00mm | 33.0dB | - | cURus, TUV | 3200 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
DC0701524M2B-3T3FAN 70X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 29.6 CFM (0.829m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 4.08 W | CE, cURus | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|

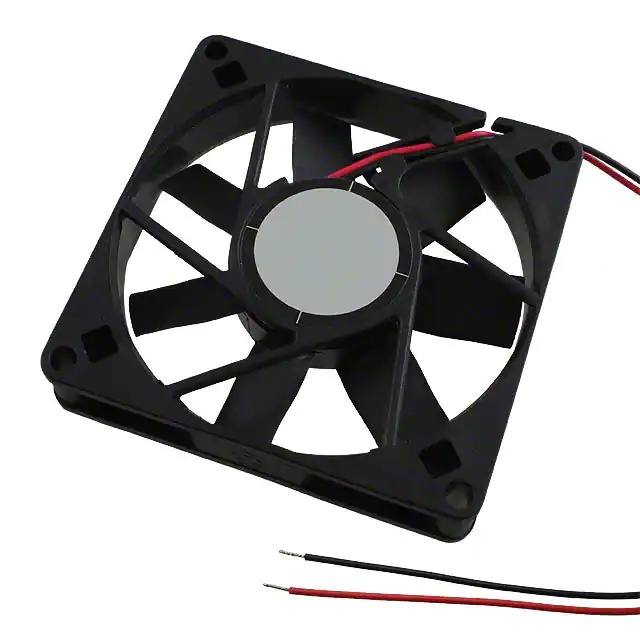

OD8015-24MBFAN AXIAL 80X15MM 24VDC WIRE |
836 | - |
|
数据表 |
OD8015 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | - | 15.00mm | 26.0dB | - | cURus, TUV | 2500 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
DC0601024M2B-3T3FAN 60X10MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 33.0dB(A) | 4.08 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0601024U2B-3T3FAN 60X10MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 37.0dB(A) | 4.8 W | CE, cURus | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0602024H2B-3T3FAN 60X20MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0701524H2B-3T3FAN 70X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 33.5 CFM (0.938m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 39.0dB(A) | 6 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0601524U2B-3T3FAN 60X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 37.0dB(A) | 6.24 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0601005U2B-3T3FAN 60X10MM 5VDC TACH MOLEX 22-0 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 37.0dB(A) | 1 W | CE, cURus | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
OD6015-12HBFAN AXIAL 60X15MM 12VDC WIRE |
721 | - |
|
数据表 |
OD6015 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.079 lb (35.83 g) | Tubeaxial | Auto Restart | 15.00mm | 33.0dB | 1.08 W | cURus, TUV | 4500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
DC0501524U2B-3T3FAN 50X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 3.12 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
OD4015-12HBFAN AXIAL 40X15MM 12VDC WIRE |
720 | - |
|
数据表 |
OD4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | - | 15.00mm | 36.0dB | 1.8 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0401524H2B-BT4FAN 40X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.5 CFM (0.294m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 3.84 W | CE, cURus | 8600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
OD4020-12LBFAN AXIAL 40X20MM 12VDC WIRE |
398 | - |
|
数据表 |
OD4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.5 CFM (0.182m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 24.1dB(A) | 980 mW | CE, cURus, TUV | 5150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
DC0401524L2B-BT4FAN 40X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 28.0dB(A) | 1.92 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|

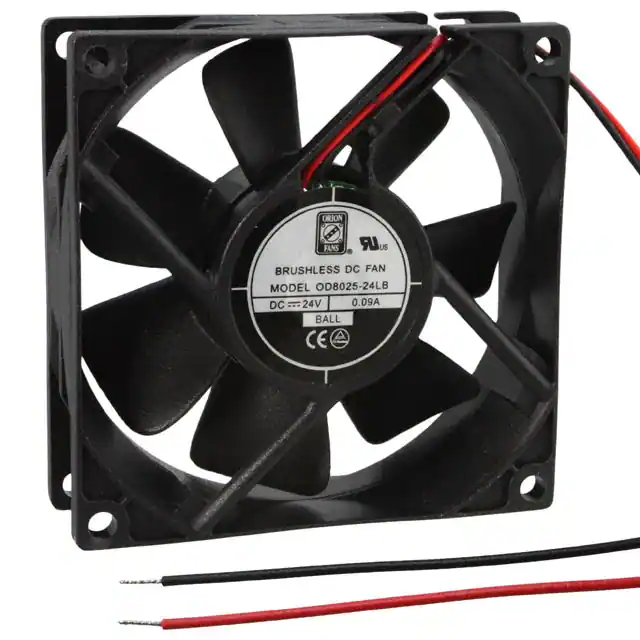

OD8025-24LBFAN AXIAL 80X25MM 24VDC WIRE |
163 | - |
|
数据表 |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 23.0dB | 960 mW | cURus, TUV | 2100 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
