直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

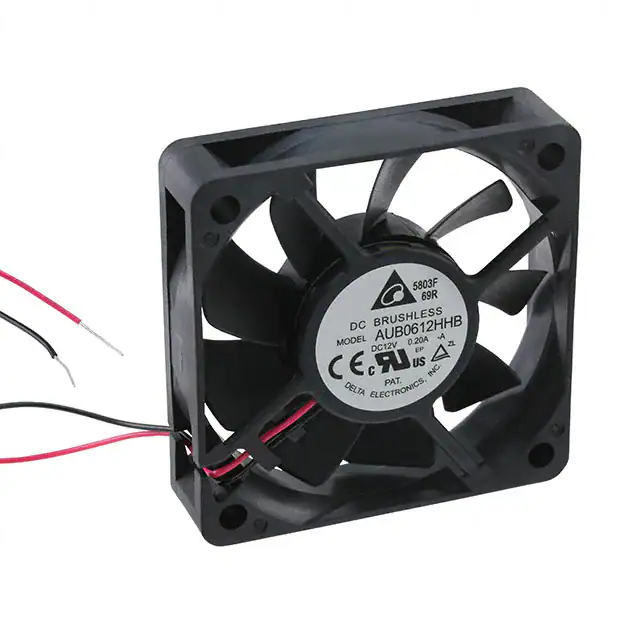

AUB0612HHB-AFAN AXIAL 60X15MM 12VDC WIRE |
2,301 | - |
|
数据表 |
AUB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.190 in H2O (47.3 Pa) | Superflo | 0.084 lb (38.1 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 33.0dB(A) | 1.56 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
DC0401012V2B-2T0FAN AXIAL 40X10MM 12VDC WIRE |
269 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 39.0dB(A) | 2.04 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

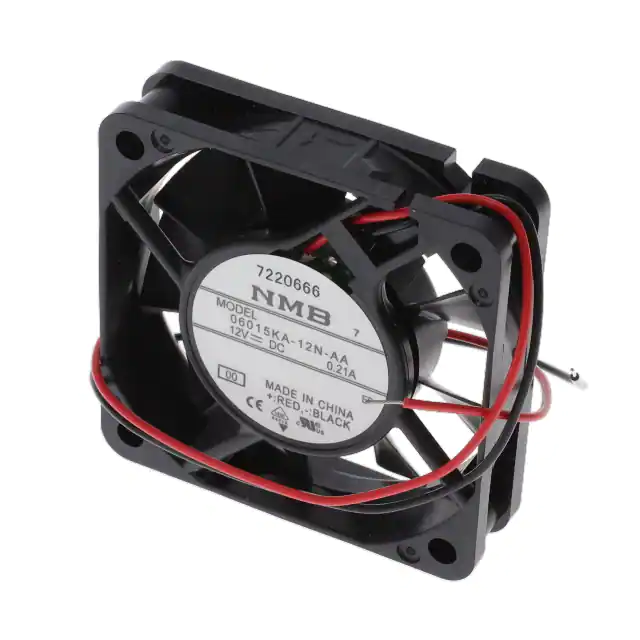

06015KA-12N-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
608 | - |
|
数据表 |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.00mm | 34.0dB | 1.9 W | - | 4600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
BFB0305HHA-CF00FAN BLOWER 30X10MM 5VDC WIRE |
352 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.7 CFM (0.046m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 29.0dB(A) | 1.15 W | CE, cURus, TUV | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB03505LA-CF00FAN BLOWER 35X10MM 5VDC WIRE |
279 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 450 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AUB0912VH-CX09FAN AXIAL 92X25.4MM 12VDC |
7,102 | - |
|
数据表 |
AUB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Superflo | 0.219 lb (99.34 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 45.0dB(A) | 4.56 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
OD9225-05LLB01AFAN AXIAL 92.5X25MM 5VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 5VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-05LLB02AFAN AXIAL 92.5X25MM 5VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 5VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12HB10AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 4 Wire Leads | - |
|
|
OD9225-12HB5FAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | PWM Control | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12HHB01AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12HHB10AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 4 Wire Leads | - |
|
|
OD9225-12HHB5FAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | PWM Control | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12HHB02AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12LB01AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12LB10AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 4 Wire Leads | - |
|
|
OD9225-12LB5FAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | PWM Control | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12LB02AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12LLB01AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD9225-12LLB5FAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | PWM Control | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
