直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD9225-12MB01AFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
ASB0412SA-00FAN AXIAL 40X10.4MM 12VDC WIRE |
2,377 | - |
|
数据表 |
ASB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.9 CFM (0.249m³/min) | 0.233 in H2O (58.0 Pa) | Sleeve | 0.03 lb (13.61 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.40mm | 33.5dB(A) | 840 mW | - | 8000 RPM | -4 ~ 194°F (-20 ~ 90°C) | 3 Wire Leads | - |
|
06020SA-12M-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
383 | - |
|
数据表 |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.123 lb (55.79 g) | Tubeaxial | - | 20.00mm | 28.5dB | 960 mW | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

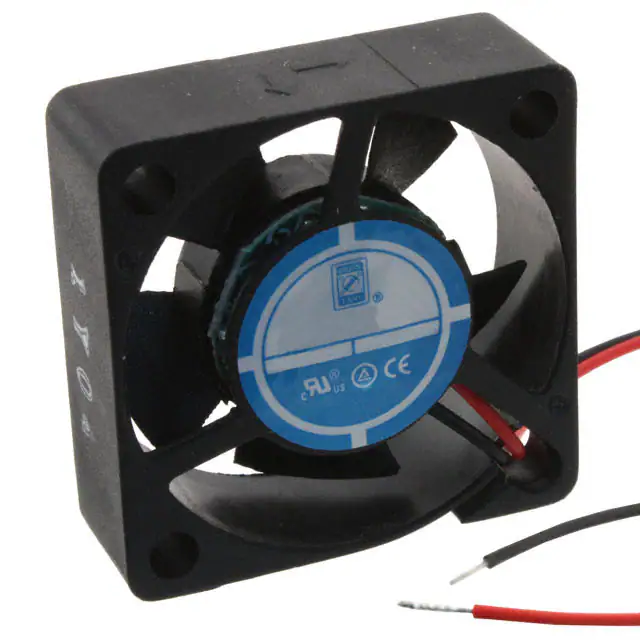

OD3010-12HBFAN AXIAL 30X10.2MM 12VDC WIRE |
7,608 | - |
|
数据表 |
OD3010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | 5.0 CFM (0.140m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | - | 10.20mm | 30.2dB(A) | - | cURus, TUV | 11000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
3161/MEC0251V1-000U-G99FAN AXIAL 120X25MM VAPO 12VDC |
279 | - |
|
数据表 |
MagLev® MEC | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 0.357 lb (161.93 g) | Tubeaxial, Case Fan | Auto Restart, Speed Sensor (Tach) | 25.00mm | 44.5dB(A) | 5.4 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | LP4 Assembly | - |
|
UB5U3-700FAN BLOWER 30X3MM VAPO 5VDC WIRE |
6,076 | - |
|
数据表 |
MagLev® UB, Mighty Mini | Tray | Active | 5VDC | Square - 30mm L x 30mm H | 0.630 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | 0.005 lb (2.27 g) | Blower | Auto Restart | 3.00mm | 36.0dB(A) | 360 mW | CE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

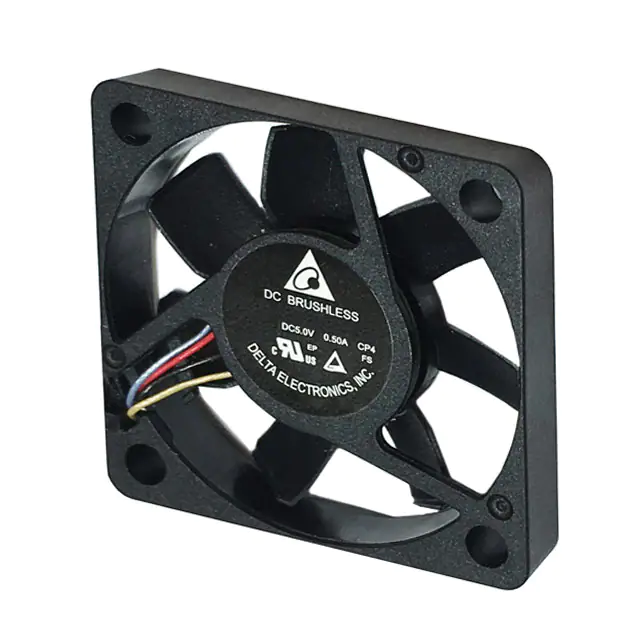

ASB0305HP-00FAN AXL 30X6.9MM 5VDC RECT CONN |
5,579 | - |
|
数据表 |
ASB - Miniature | Box | Active | 5VDC | Square - 30mm L x 30mm H | 5.1 CFM (0.143m³/min) | 0.156 in H2O (38.8 Pa) | Superflo | 0.01 lb (4.54 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 6.90mm | 29.0dB(A) | 1 W | cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
F6025X24B1-FSRFAN AXIAL 60X25MM 24VDC WIRE |
2,588 | - |
|
数据表 |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 3 Wire Leads | - |
|

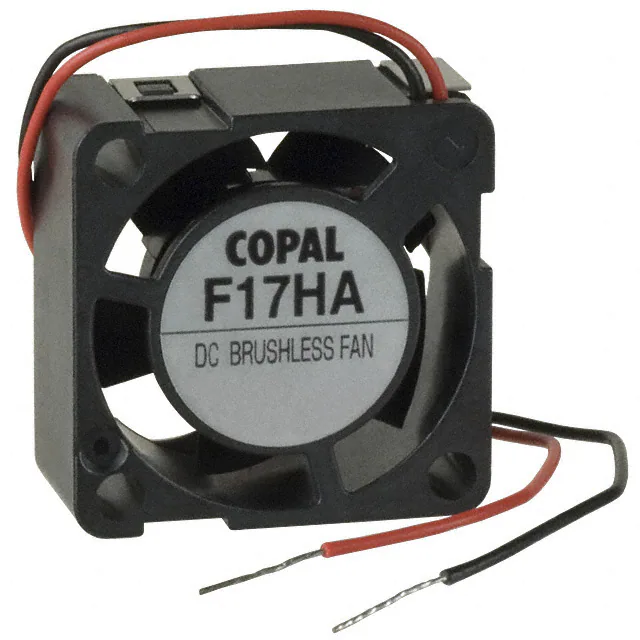

F17HA-05MCFAN AXIAL 17X8MM 5VDC WIRE |
605 | - |
|
数据表 |
F17HA | Bulk | Active | 5VDC | Square - 17mm L x 17mm H | 0.530 CFM (0.015m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | 0.005 lb (2.27 g) | Tubeaxial | - | 8.00mm | 7.0dB(A) | 150 mW | - | 8000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
G8015X12B-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
332 | - |
|
数据表 |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.30mm | 40.0dB(A) | - | CE, cUL, TUV, UL | 4800 RPM | - | 2 Wire Leads | - |
|
|
AFB0405VHA-AFAN AXIAL 40X10MM BALL 5VDC WIRE |
3,700 | - |
|
数据表 |
AFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.242 in H2O (60.3 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 35.5dB(A) | 550 mW | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0412VHA-AFAN AXIAL 40X10MM 12VDC WIRE |
1,182 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.242 in H2O (60.3 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 35.5dB(A) | 720 mW | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0412HA-AFAN AXIAL 40X10MM 12VDC WIRE |
960 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 27.0dB(A) | 480 mW | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
4127/MF30060V1-1000U-A99FAN AXIAL 30X6.5MM VAPO 5VDC |
2,780 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.014 lb (6.35 g) | Tubeaxial | Auto Restart | 6.50mm | 23.6dB(A) | 560 mW | cURus, TUV | 9100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
EEC0252B1-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
504 | - |
|
数据表 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.346 lb (156.94 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 5 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109P0412J3013FAN AXIAL 40X28MM 12VDC WIRE |
1,860 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | 0.115 lb (52.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 44.0dB(A) | 4.2 W | CSA, TUV, UL | 12500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

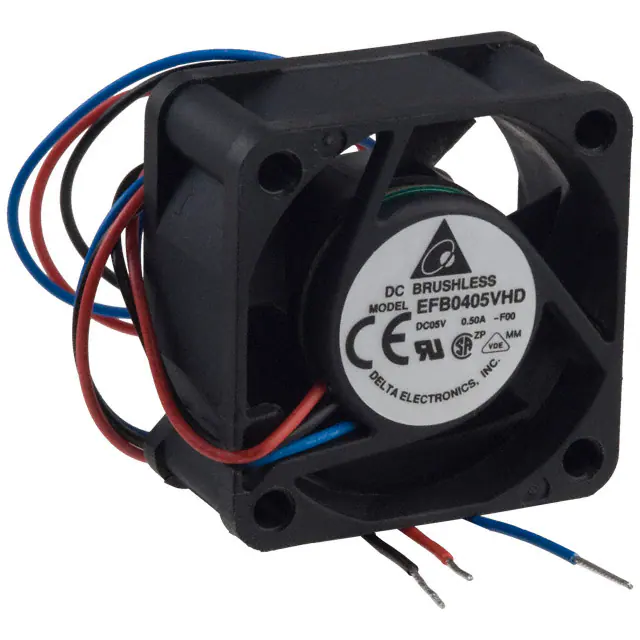

EFB0405VHD-F00FAN AXIAL 40X20MM BALL 5VDC WIRE |
11,152 | - |
|
数据表 |
EFB | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 32.5dB(A) | 1.6 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

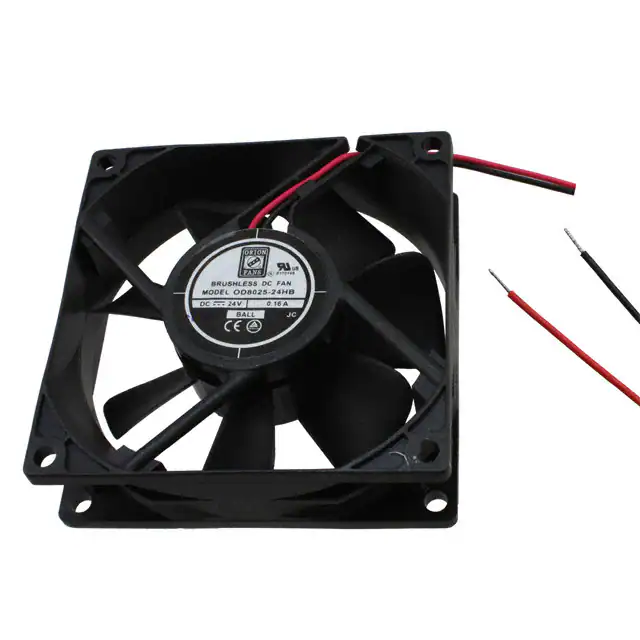

OD8025-24HBFAN AXIAL 80X25MM 24VDC WIRE |
3,251 | - |
|
数据表 |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 35.0dB | 1.44 W | cURus, TUV | 3100 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

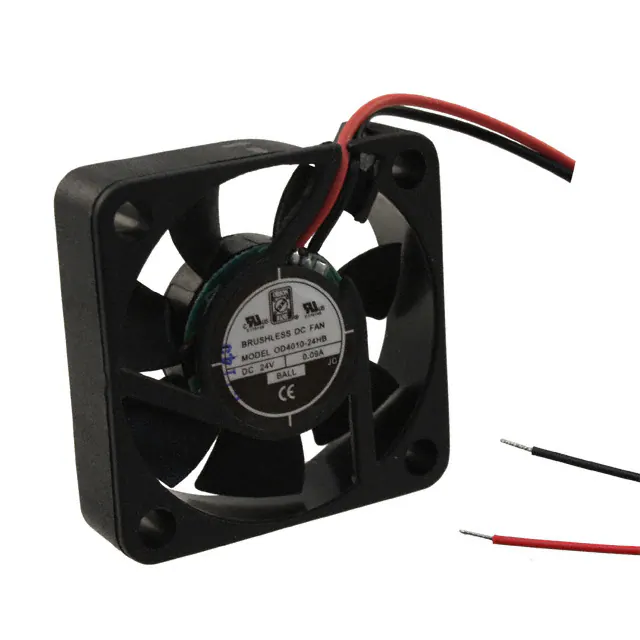

OD4010-24HBFAN AXIAL 40X10.5MM 24VDC WIRE |
3,224 | - |
|
数据表 |
OD4010 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 10.50mm | 33.4dB | 1.45 W | CE, cURus, TUV, UR | 8000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD6025-12HBFAN AXIAL 60X25MM 12VDC WIRE |
3,016 | - |
|
数据表 |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 1.8 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
