直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2G115-AG71-09FAN AXIAL 127X38MM 24VDC TERM |
0 | - |
|
数据表 |
W2G115 | Bulk | Obsolete | 24VDC | Square - 127mm L x 127mm H | 160.0 CFM (4.48m³/min) | - | Ball | 1.6 lbs (725.7 g) | Tubeaxial | - | 38.00mm | 52.0dB(A) | 12 W | - | - | - | 2 Terminals | - |
|
6448-384FAN AXIAL 171.5X50.8MM 48VDC |
0 | - |
|
数据表 |
6400 | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 241.0 CFM (6.75m³/min) | - | Ball | - | Tubeaxial | - | 50.80mm | 57.0dB(A) | 17 W | - | 3400 RPM | -4 ~ 162°F (-20 ~ 72°C) | - | - |
|
MM1865H48B-FSRFAN AXIAL 180X65MM 48VDC WIRE |
4 | - |
|
数据表 |
MM1865 | Bulk | Obsolete | 48VDC | Square - 180mm L x 180mm H | 580.0 CFM (16.24m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | - | 65.00mm | 65.0dB | - | cUL, TUV, UL | 4000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
|
109P1348H101FAN AXIAL 127X38MM 48VDC WIRE |
17 | - |
|
数据表 |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.6 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
OD254AP-48LTBFAN AXIAL 254X89MM 48VDC TERM |
14 | - |
|
数据表 |
OD254AP | Bulk | Active | 48VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 39.4dB(A) | 24 W | CE, cURus, TUV, UR | 1650 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
RER175-42/18/2TDMLPFAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
RER175TD | Bulk | Active | 48VDC | Round - 175mm Dia | 353.0 CFM (9.88m³/min) | - | Ball | 1.7 lbs (771.1 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 42 W | - | 3400 RPM | - | 4 Wire Leads | - |
|
MSI2577H48B1-BBRFAN IMP MTRZD 250X77.3MM 48VDC |
5 | - |
|
数据表 |
MSI2577 | Box | Active | 48VDC | Round - 250mm Dia | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | 4.4 lbs (2 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 77.30mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
TF037C-2000-FFAN BLOWER 54X37.3MM AERO 24VDC |
20 | - |
|
数据表 |
TF037C | Tray | Active | 24VDC | Rectangular/Rounded - 54mm L x 50.5mm H | 3.5 CFM (0.098m³/min) | 16.060 in H2O (4000.0 Pa) | Aerodynamic | 0.198 lb (89.81 g) | Blower, Centrifugal | - | 37.30mm | 67.0dB(A) | 29 W | - | 40000 RPM | 32 ~ 122°F (0 ~ 50°C) | 12 Position Rectangular Connector | - |
|
|
9W2TJ48P0H001FAN IMP MTRZD 133X91MM 48VDC |
6 | - |
|
数据表 |
San Ace 133W | Box | Active | 48VDC | Round - 133mm Dia | 225.0 CFM (6.30m³/min) | 1.590 in H2O (396.1 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 91.00mm | 61.0dB(A) | 26.4 W | - | 4150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
W2G130-AA09-01FAN AXIAL 150X55MM 48VDC WIRE |
0 | - |
|
数据表 |
W2G130 | Bulk | Obsolete | 48VDC | Round - 150mm Dia | 203.0 CFM (5.68m³/min) | - | Ball | 2.2 lbs (997.9 g) | Tubeaxial | - | 55.00mm | 51.0dB(A) | 14 W | - | - | - | 2 Wire Leads | - |
|
G2G097-AA26-09FAN BLOWER 143X41MM 12VDC WIRE |
0 | - |
|
数据表 |
G2G097 | Bulk | Active | 12VDC | Rectangular/Rounded - 143mm L x 137mm H | 50.0 CFM (1.40m³/min) | - | Ball | 2 lbs (907.2 g) | Blower | - | 41.00mm | 57.0dB(A) | 17 W | - | - | - | 2 Wire Leads | - |
|

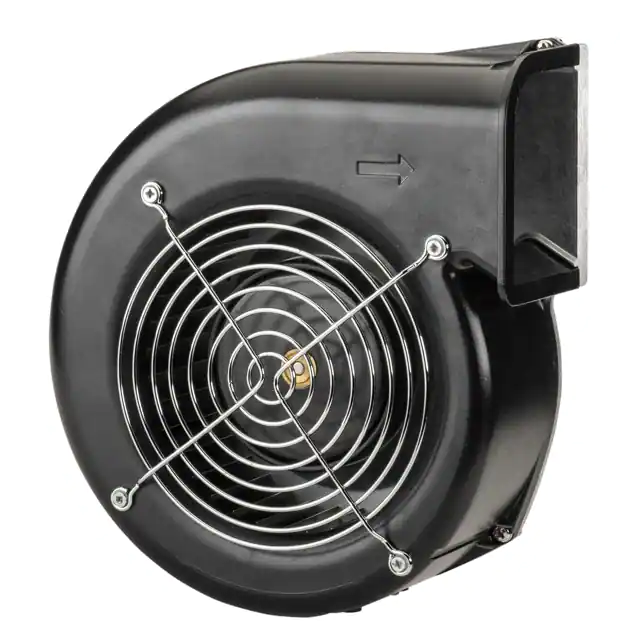

P1970H24BALA2A-38FAN BLOWER 193X72MM 24VDC WIRE |
6 | - |
|
数据表 |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 193mm L x 177mm H | 127.7 CFM (3.62m³/min) | 2.020 in H2O (503.1 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 72.00mm | 55.5dB(A) | 42 W | CE, cUL, UL | 1800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
RG160-28/14NTDFAN BLOWER CF 220X56MM 24VDC |
2 | - |
|
数据表 |
RER160NTD | Bulk | Active | 24VDC | Square - 220mm L x 220mm H | 181.3 CFM (5.08m³/min) | - | Ball | - | Blower, Centrifugal | - | 56.00mm | - | 64 W | CSA, UL, VDE | 4200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
RER225-63/18/17TDMOU-403RER225-63/18/17TDMOU-403 |
22 | - |
|
数据表 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G225-AF11-39FAN IMP MTRZD 225X99MM 48VDC |
7 | - |
|
数据表 |
R1G225 | Bulk | Active | 48VDC | Round - 225mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | - | 95 W | CSA, UL | 2700 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Position Rectangular Connector | IP42 |
|
|
K1G225-RB49-02FAN AXIAL 270X112.0MM 24VDC WIRE |
7 | - |
|
数据表 |
K1G225 | Bulk | Active | 24VDC | Square - 270mm L x 270mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 112.0mm | - | 72 W | CSA, EAC, UL | 2370 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP42 |
|
|
RG160-28/14NTDHFAN BLOWER CF 220X56MM 24VDC |
0 | - |
|
数据表 |
RER160NTD | Bulk | Active | 24VDC | Square - 220mm L x 220mm H | 217.8 CFM (6.10m³/min) | - | Ball | - | Blower, Centrifugal | - | 56.00mm | - | 101 W | CSA, UL, VDE | 5000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
W1G250-HH67-52DC TUBEAXIAL FANS |
0 | - |
|
数据表 |
W1G250 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | - | 0.562 in H2O (140.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 80.00mm | - | 105 W | CCC, EAC, VDE, UL | 2750 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | IP42 |
|
|
D3G160-LV13-30D3G160-LV13-30 |
9 | - |
|
数据表 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
700-00-1064ebm-papst Inc. 700-00-1064 |
8 | - |
|
数据表 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
