直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4015M24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
AF40100VX-1000U-GL95VDC FAN 40X10MM ALARM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | - | 10.00mm | 30.7dB(A) | 0.6 W | CCC, CE, cURus, TUV, UKCA | 8000 RPM | - | 2 Wire Leads | IP52 |
|
|
AF40101VX-1000U-GL912VDC FAN 40X10MM ALARM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | - | 10.00mm | 30.7dB(A) | 0.78 W | CCC, CE, cURus, TUV, UKCA | 8000 RPM | - | 2 Wire Leads | IP52 |
|
|
DC0702512U2B-2T2FAN 70X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 45.0dB(A) | 1.92 W | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0702524M2B-2T2FAN 70X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 32.0dB(A) | 2.16 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801524J2B-BT0FAN 80X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 1.44 W | CE, cURus | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0702512H2B-2T2FAN 70X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 37.0dB(A) | 1.56 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801524M2B-BT0FAN 80X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.88 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0801524L2B-BT0FAN 80X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 2.4 W | CE, cURus | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0802012H2B-BT0FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 40.4 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.171 lb (77.56 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 2.88 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0802024H2B-3T0FAN 80X20MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 5.76 W | CE, cURus | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

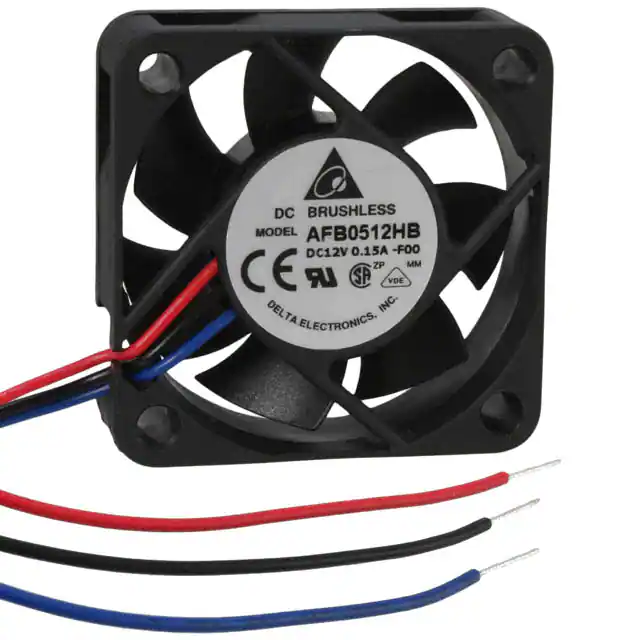

AFB0512HB-F00FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0512HHDFAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 18.3 CFM (0.512m³/min) | 0.254 in H2O (63.3 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 37.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0512LDFAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 11.0 CFM (0.308m³/min) | 0.095 in H2O (23.7 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 25.0dB(A) | 720 mW | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

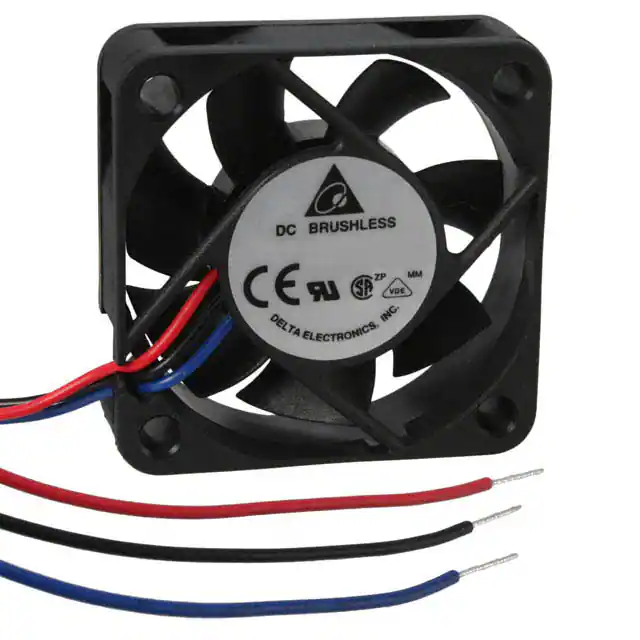

AFB0512HHD-R00FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 18.3 CFM (0.512m³/min) | 0.254 in H2O (63.3 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 37.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
AFB0512LD-R00FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 50mm L x 50mm H | 11.0 CFM (0.308m³/min) | 0.095 in H2O (23.7 Pa) | Ball | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 25.0dB(A) | 720 mW | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0401012H2B-3T3FAN 40X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 26.0dB(A) | 720 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0401012M2B-3T3FAN 40X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 21.0dB(A) | 360 mW | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0401012U2B-3T3FAN 40X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 1.08 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
EF92252B1-1000U-G9924VDC FAN 92X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 51.3 CFM (1.44m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 1.52 W | CCC, CE, cURus, TUV, UKCA | 3000 RPM | - | 3 Wire Leads | - |
