直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8038B-230-387-20FAN AXIAL 80X37.6MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.60mm | 38.7dB(A) | 3.6 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

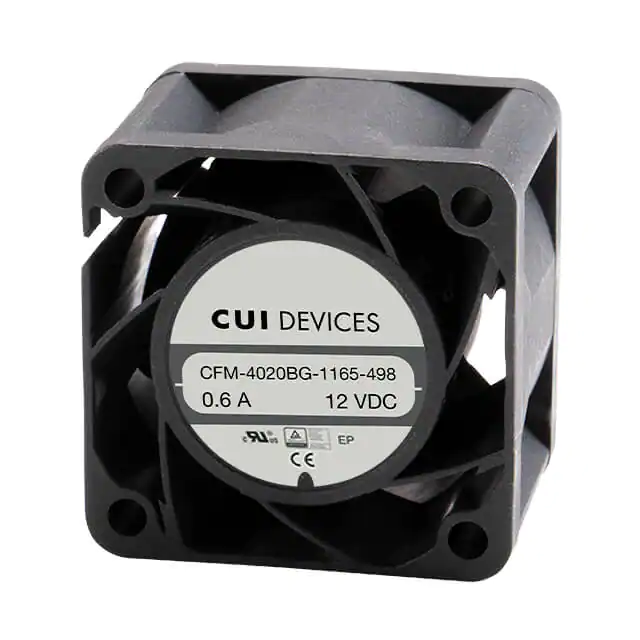

CFM-4020BG-1165-498-20FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.4 CFM (0.543m³/min) | 1.080 in H2O (269.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 49.8dB(A) | 7.08 W | CE, cURus, TUV | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0801512H2B-BT0FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 1.92 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0701512M2B-2T2FAN 70X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 29.6 CFM (0.829m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 35.0dB(A) | 2.04 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0701512H2B-2T2FAN 70X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 33.5 CFM (0.938m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 39.0dB(A) | 3 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801524U2B-3T0FAN 80X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 45.2 CFM (1.27m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 43.0dB(A) | 11.52 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0602012M2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 16.4 CFM (0.459m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 29.0dB(A) | 1.32 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602012U2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.6 CFM (0.549m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 33.0dB(A) | 2.04 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501512U2B-2T2FAN 50X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 36.0dB(A) | 1.56 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601512U2B-2T2FAN 60X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 37.0dB(A) | 2.04 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0502012H2B-2T2FAN 50X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 38.0dB(A) | 2.52 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602012H2B-2T2FAN 60X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 31.0dB(A) | 1.56 W | CE, cURus, TUV | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0502012M2B-2T2FAN 50X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 17.6 CFM (0.493m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 36.0dB(A) | 2.52 W | CE, cURus, TUV | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601012M2B-2T2FAN 60X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 33.0dB(A) | 2.04 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
06020SA-24L-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.123 lb (55.79 g) | Tubeaxial | - | 20.00mm | 26.0dB | 1.2 W | - | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06020SA-12J-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 21.5dB(A) | 580 mW | - | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06020SA-24T-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06020SA-12L-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 26.0dB(A) | 720 mW | - | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06020SA-24L-AA-00FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 26.0dB(A) | 1.2 W | - | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06020SA-24J-EA-00FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
06020SA | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
