直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDE1212PMB1-6ARFAN AXIAL 119.5X38.5MM 12VDC |
0 | - |
|
数据表 |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 108.0 CFM (3.02m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 0.723 lb (327.95 g) | Tubeaxial | Locked Rotor Sensor | 38.50mm | 42.0dB(A) | 6.8 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0402812J2B-2T0FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 13.8 CFM (0.386m³/min) | 0.460 in H2O (114.6 Pa) | Ball | 0.045 lb (20.41 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 38.0dB(A) | 1.68 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0501005L2B-3T0FAN 50X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 350 mW | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
2004KL-01W-B30-B00FAN AXIAL 50X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
2004KL | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 6.4 CFM (0.179m³/min) | 0.064 in H2O (16.0 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | - | 10.00mm | 23.0dB | 500 mW | CE, CSA, UL, VDE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
2004KL-04W-B40-B00FAN AXIAL 50X10MM 12VDC WIRE |
0 | - |
|
数据表 |
2004KL | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 8.1 CFM (0.227m³/min) | 0.104 in H2O (26.0 Pa) | Ball | 0.044 lb (19.96 g) | Tubeaxial | - | 10.00mm | 28.5dB | 840 mW | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

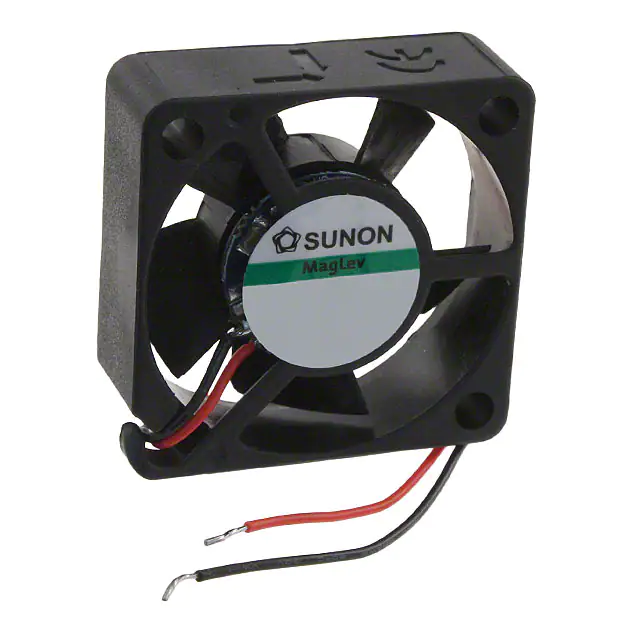

MC30101V1-000U-A99FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | Auto Restart | 10.00mm | 23.0dB(A) | 580 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MC30101V2-000U-A99FAN AXIAL 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 30mm L x 30mm H | 4.6 CFM (0.129m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | Auto Restart | 10.00mm | 20.0dB(A) | 480 mW | CE, CUR, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|

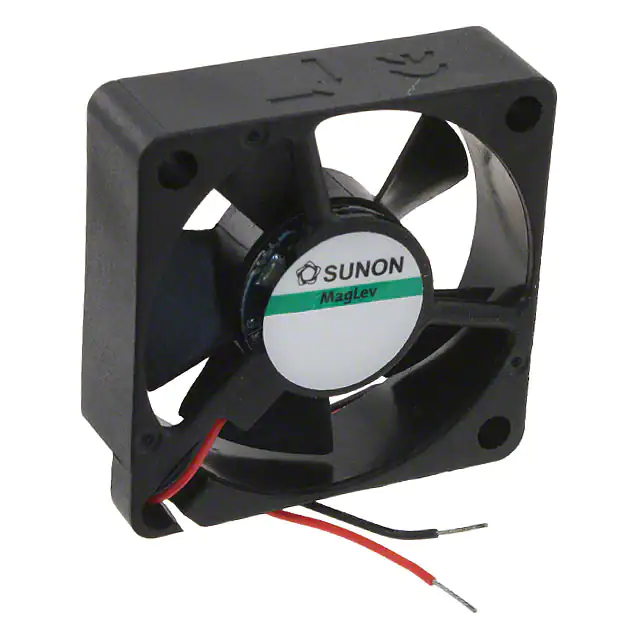

MC35101V2-000U-A99FAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 35mm L x 35mm H | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart | 10.00mm | 22.0dB(A) | 520 mW | CE, CUR, TUV, UL | 7500 RPM | - | 2 Wire Leads | - |
|

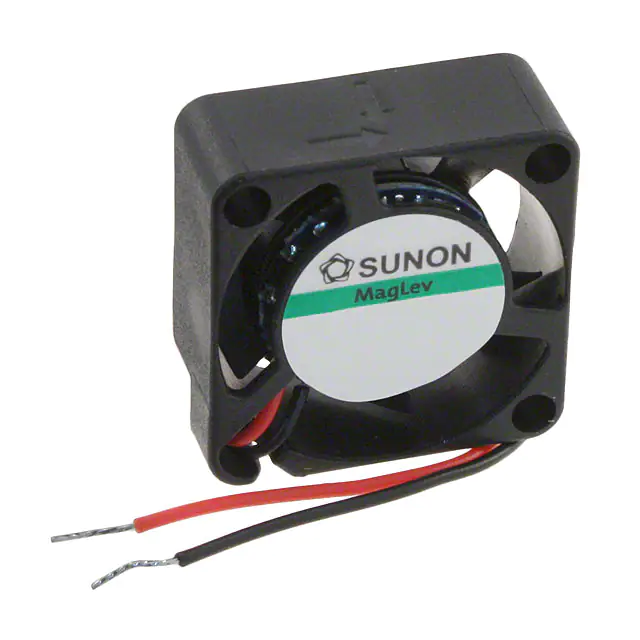

MC20080V1-000U-A99FAN AXIAL 20X8MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.6 CFM (0.045m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | 0.01 lb (4.54 g) | Tubeaxial | Auto Restart | 8.00mm | 23.0dB(A) | 680 mW | CUR, TUV, UL | 15000 RPM | - | 2 Wire Leads | - |
|
|
MC20080V2-000U-A99FAN AXIAL 20X8MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.3 CFM (0.036m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 0.01 lb (4.54 g) | Tubeaxial | Auto Restart | 8.00mm | 21.0dB(A) | 450 mW | CUR, TUV, UL | 12000 RPM | - | 2 Wire Leads | - |
|
|
KD1206PKB1.(2).GNFAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 34.5dB(A) | 1.9 W | CE, CUR, TUV, UL | 4500 RPM | - | 2 Wire Leads | - |
|
|
KD1206PKB2.(2).GNFAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 29.0dB(A) | 1.1 W | - | 3700 RPM | - | 2 Wire Leads | - |
|
|
KD2406PKB2.(2).GNFAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 29.0dB(A) | 1.4 W | - | 3700 RPM | - | 2 Wire Leads | - |
|
MC30151V1-000U-A99FAN AXIAL 30X15MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Box | Obsolete | 12VDC | Square - 30mm L x 30mm H | 6.0 CFM (0.168m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.029 lb (13.15 g) | Tubeaxial | Auto Restart | 15.00mm | 27.0dB(A) | 650 mW | CE, CUR, TUV, UL | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EF60251B1-1000U-G9912VDC FAN 60X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.220 in H2O (55.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 31.5dB(A) | 0.99 W | CCC, CE, cURus, TUV, UKCA | 5200 RPM | - | 3 Wire Leads | - |
|
|
EF60251B2-1000U-G9912VDC FAN 60X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 0.7 W | CCC, CE, cURus, TUV, UKCA | 4500 RPM | - | 3 Wire Leads | - |
|
|
EF60251B3-1000U-G9912VDC FAN 60X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 0.46 W | CCC, CE, cURus, TUV, UKCA | 3400 RPM | - | 3 Wire Leads | - |
|
DC0702512H2B-BT0FAN AXIAL 70X25MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.12m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 1.56 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0501524L2B-2T2FAN 50X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 12.2 CFM (0.342m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 27.0dB(A) | 1.68 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0401005V2B-2T2FAN 40X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 39.0dB(A) | 2 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
