直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0502024L2B-2T2FAN 50X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 14.8 CFM (0.414m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 32.0dB(A) | 3.6 W | CE, cURus | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801524J2B-2T2FAN 80X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 25.0dB(A) | 1.44 W | CE, cURus | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501524M2B-2T2FAN 50X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 30.0dB(A) | 2.16 W | CE, cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801524L2B-2T2FAN 80X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 30.0dB(A) | 2.4 W | CE, cURus | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801524M2B-2T2FAN 80X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 2.88 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802012U2B-2T2FAN 80X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 43.0dB(A) | 3.6 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802012H2B-2T2FAN 80X20MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 36.0dB(A) | 2.88 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
06015KA-12K-AL-00FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 11.6 CFM (0.325m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 25.0dB | 840 mW | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
CBM-7525B-145-494-20DC BLOWER, 75.2 X 74.2 X 25 MM, |
0 | - |
|
数据表 |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 13.4 CFM (0.375m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 25.00mm | 49.4dB(A) | 6.96 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
B5015E12B1-BSRFAN BLOWER 51X15.7MM 12VDC WIRE |
0 | - |
|
数据表 |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.70mm | 45.0dB(A) | - | CE, cUL, TUV, UL | 6500 RPM | - | 3 Wire Leads | - |
|
|
B5015E12B1-BSR-WSFAN BLOWER 51X15.7MM 12VDC WIRE |
0 | - |
|
数据表 |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 5.0 CFM (0.140m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.70mm | 45.0dB(A) | - | CE, cUL, TUV, UL | 6500 RPM | - | 4 Wire Leads | - |
|
|
B5015H05B1-BSRFAN BLOWER 51X15.7MM 5VDC WIRE |
0 | - |
|
数据表 |
B5015 | Bulk | Active | 5VDC | Square/Rounded - 51mm L x 51mm H | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.70mm | 40.0dB(A) | - | CE, cUL, TUV, UL | 5500 RPM | - | 3 Wire Leads | - |
|
|
B5015H12B2-BSRFAN BLOWER 51X15.7MM 12VDC WIRE |
0 | - |
|
数据表 |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 4.0 CFM (0.112m³/min) | 0.560 in H2O (139.5 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 15.70mm | 40.0dB(A) | - | CE, cUL, TUV, UL | 5500 RPM | - | 3 Wire Leads | - |
|
|
B5015M12B2-BSRFAN BLOWER 51X15.7MM 12VDC WIRE |
0 | - |
|
数据表 |
B5015 | Bulk | Active | 12VDC | Square/Rounded - 51mm L x 51mm H | 3.0 CFM (0.084m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 15.70mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 3 Wire Leads | - |
.F.GN.jpg)
|

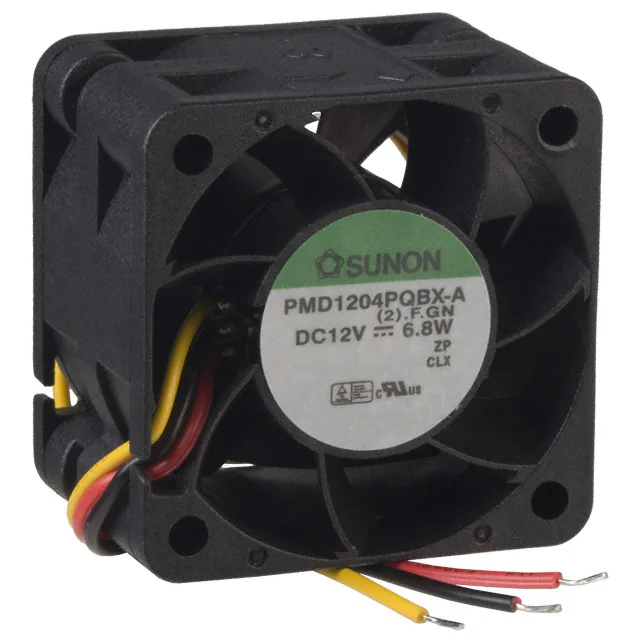

PMD1204PQBX-A.(2).F.GNFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 23.5 CFM (0.658m³/min) | 1.150 in H2O (286.5 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | Speed Sensor (Tach) | 28.00mm | 51.5dB(A) | 6.8 W | CE, CUR, TUV, UL | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD6010-05HBFAN AXIAL 60X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD6010 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | - | 10.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
OD6010-12LBFAN AXIAL 60X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | - | 10.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
OD6010-24MBThermal Products |
0 | - |
|
数据表 |
OD6010 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.0 CFM (0.476m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.50mm | 33.2dB(A) | 3 W | CE, cURus, TUV, UR | 4250 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD6010-24HBThermal Products |
0 | - |
|
数据表 |
OD6010 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.50mm | 36.5dB(A) | 3.1 W | CE, cURus, TUV, UR | 4975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD6010-12MBThermal Products |
0 | - |
|
数据表 |
OD6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 17.0 CFM (0.476m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 10.50mm | 33.2dB(A) | 1.9 W | CE, cURus, TUV, UR | 4250 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
