直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GM0502PFV1-8 MFAN AXIAL 25X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
GM | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.016 lb (7.26 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 600 mW | CE, CUR, TUV, UL | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF35060V1-1000U-G995VDC FAN 35X6MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 6.00mm | 26.0dB(A) | 0.6 W | CCC, CE, cURus, TUV, UKCA | 7600 RPM | - | 3 Wire Leads | - |
|
|
MF35060V1-1000U-H995VDC FAN 35X6MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 6.00mm | 26.0dB(A) | 0.6 W | CCC, CE, cURus, TUV, UKCA | 7600 RPM | - | 3 Wire Leads | - |
|
|
MF35060V2-1000U-G995VDC FAN 35X6MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 4.3 CFM (0.120m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 6.00mm | 18.3dB(A) | 0.33 W | CCC, CE, cURus, TUV, UKCA | 5800 RPM | - | 3 Wire Leads | - |
|
|
MF35060V2-1000U-H995VDC FAN 35X6MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 4.3 CFM (0.120m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 6.00mm | 18.3dB(A) | 0.33 W | CCC, CE, cURus, TUV, UKCA | 5800 RPM | - | 3 Wire Leads | - |
(8020BF)(8038BF).jpg)
|
CFM-8015BF-120-213-22FAN AXIAL 80X15.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.40mm | 21.3dB(A) | 1.08 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-8015BF-230-301-22FAN AXIAL 80X15.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.40mm | 30.1dB(A) | 5.04 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-8015BF-220-213-22FAN AXIAL 80X15.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.2 CFM (0.650m³/min) | 0.040 in H2O (10.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.40mm | 21.3dB(A) | 1.44 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-8015BF-130-301-22FAN AXIAL 80X15.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 34.9 CFM (0.977m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.40mm | 30.1dB(A) | 3.12 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-A225BG-123-374DC AXIAL FAN, 120 MM SQUARE, 25 |
0 | - |
|
数据表 |
CFM-A2BG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 80.2 CFM (2.25m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 38.6dB(A) | 5.04 W | CE, cURus, TUV | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

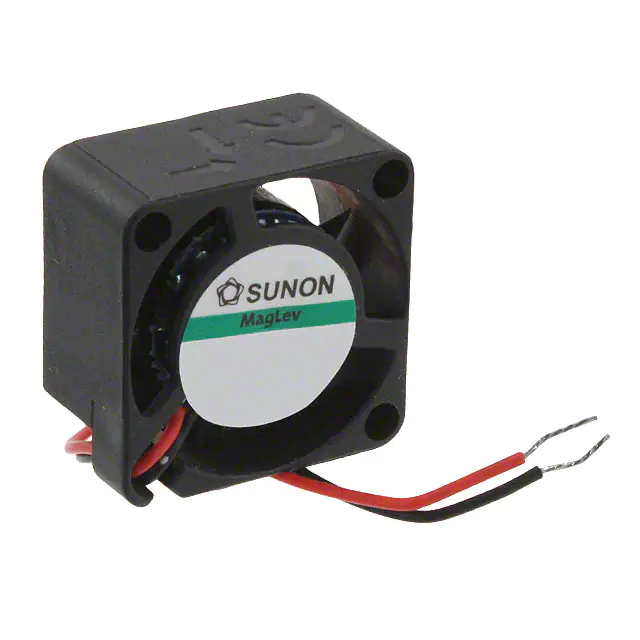

MC20100V2-000U-G99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | 0.012 lb (5.44 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 20.0dB(A) | 780 mW | CE, CUR, TUV, UL | 14000 RPM | - | 3 Wire Leads | - |
6025BF).jpg)
|
CFM-6025BF-035-274-22FAN AXIAL 60X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 27.5dB(A) | 1.5 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-6025BF-050-351-22FAN AXIAL 60X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 35.2dB(A) | 2.8 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-6025BF-150-351-22FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 35.2dB(A) | 2.76 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
G4015E12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.0 CFM (0.280m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
|
G4015E24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.0 CFM (0.280m³/min) | 0.430 in H2O (107.1 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
|
G4015H05B-RSRFAN AXIAL 40X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
G4015L12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.0 CFM (0.112m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 20.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
G4015L24B-RSRFAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 4.0 CFM (0.112m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 20.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
G4015M12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.051 lb (23.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.00mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
