直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4020M12B-RSFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 26.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
|
MB8020M12B-FSFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MB8020 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 26.9 CFM (0.753m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 20.00mm | 29.0dB(A) | - | cUL, UL | 2500 RPM | - | 2 Wire Leads | - |
|
|
EF40201B3-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.4 CFM (0.179m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 20.00mm | 16.2dB(A) | 0.42 W | CCC, CE, cURus, TUV, UKCA | 5200 RPM | - | 4 Wire Leads | - |
|
|
EF40201B1-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 20.00mm | 24.5dB(A) | 0.66 W | CCC, CE, cURus, TUV, UKCA | 7200 RPM | - | 4 Wire Leads | - |
|
|
EF40201B2-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 20.00mm | 21.3dB(A) | 0.48 W | CCC, CE, cURus, TUV, UKCA | 6200 RPM | - | 4 Wire Leads | - |
|
|
EF40201BX-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.8 CFM (0.302m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 20.00mm | 28.5dB(A) | 0.78 W | CCC, CE, cURus, TUV, UKCA | 8200 RPM | - | 4 Wire Leads | - |
|
DC0802512J2B-2T0FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 37.0dB(A) | 3.84 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EE92251BX-000U-A99FAN |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE92252BX-000U-A99FAN |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MR4020M24B1-RSRFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.053 lb (24.04 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 29.8dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
G4020E12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
MF17080V2-1000U-H995VDC FAN 17X8MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 8.00mm | 14.2dB(A) | 0.33 W | CCC, CE, cURus, TUV, UKCA | 16500 RPM | - | 3 Wire Leads | - |
|
|
MF17080V1-1000U-H995VDC FAN 17X8MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 8.00mm | 21.5dB(A) | 0.47 W | CCC, CE, cURus, TUV, UKCA | 21000 RPM | - | 3 Wire Leads | - |
|

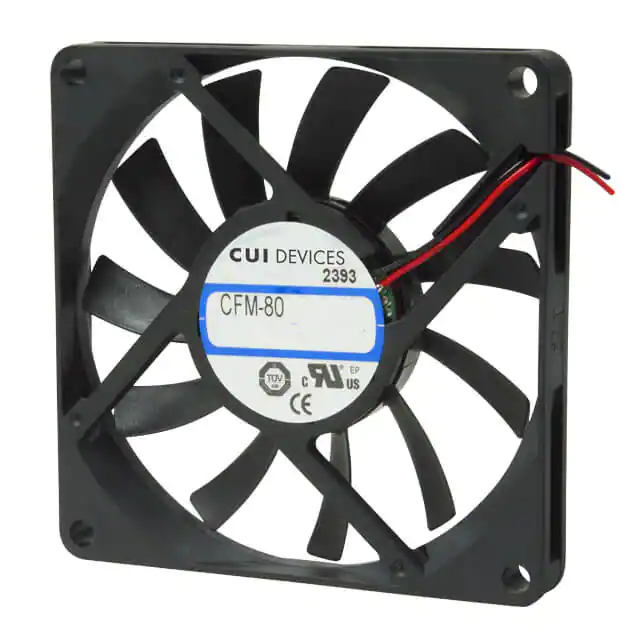

CFM-8025-13-10FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.195 lb (88.45 g) | Tubeaxial | Auto Restart | 25.40mm | 47.0dB(A) | 5.16 W | CE, cURus, TUV | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MR8025L12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 44.0 CFM (1.23m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart | 25.00mm | 31.5dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
|
MR8025L24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 44.0 CFM (1.23m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart | 25.00mm | 31.5dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
|
MR8025M24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart | 25.00mm | 38.1dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
AFB0524HBFAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 24VDC | Square - 50mm L x 50mm H | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.68 W | CE, CSA, UL, VDE | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD8025-05HHBFAN AXIAL 80X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD8025-05 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.191 lb (86.64 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 1.4 W | CE, cURus, TUV, UR | 3200 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD4020-05MBFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 30.3dB(A) | 1.2 W | CE, cURus, TUV | 6450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
