直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4020BG-1140-462FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 17.6 CFM (0.493m³/min) | 0.890 in H2O (221.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 46.2dB(A) | 6 W | CE, cURus, TUV | 14000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-4020BG-1120-429FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 14.1 CFM (0.395m³/min) | 0.570 in H2O (142.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 42.9dB(A) | 3.6 W | CE, cURus, TUV | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G4010M12B2-RSR-WSFAN AXIAL 40X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 10.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 4 Wire Leads | - |
|
|
CBM-9330B-130-439DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93B | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 18.6 CFM (0.521m³/min) | 0.840 in H2O (209.2 Pa) | Ball | - | Blower | Auto Restart | 29.50mm | 43.9dB(A) | 4.08 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-9330C-140-507DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93C | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 21.4 CFM (0.599m³/min) | 1.290 in H2O (321.3 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart | 29.50mm | 47.8dB(A) | 6.12 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04020VA-24L-AA-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF17080V1-1000U-S995VDC FAN 17X8MM TACH/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 8.00mm | 21.5dB(A) | 0.47 W | CCC, CE, cURus, TUV, UKCA | 21000 RPM | - | 4 Wire Leads | - |
|
|
MF17080V2-1000U-S995VDC FAN 17X8MM TACH/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 8.00mm | 14.2dB(A) | 0.33 W | CCC, CE, cURus, TUV, UKCA | 16500 RPM | - | 4 Wire Leads | - |
|
DC0601512H2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 1.44 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601512M2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.2 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601512J2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601512L2B-BT0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 960 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601524H2B-3T0FAN 60X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 2.88 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0601524J2B-3T0FAN 60X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 1.44 W | CE, cURus | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0601524L2B-3T0FAN 60X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 1.92 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0601524M2B-3T0FAN 60X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.4 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06015GA-12N-AL-00BLOWER 60MM X 15MM 12VDC LOCK RO |
0 | - |
|
数据表 |
06015GA | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 4.2 CFM (0.118m³/min) | 0.670 in H2O (166.9 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Sensor | 15.00mm | 42.0dB | 2.64 W | - | 5600 RPM | - | 3 Wire Leads | - |
|

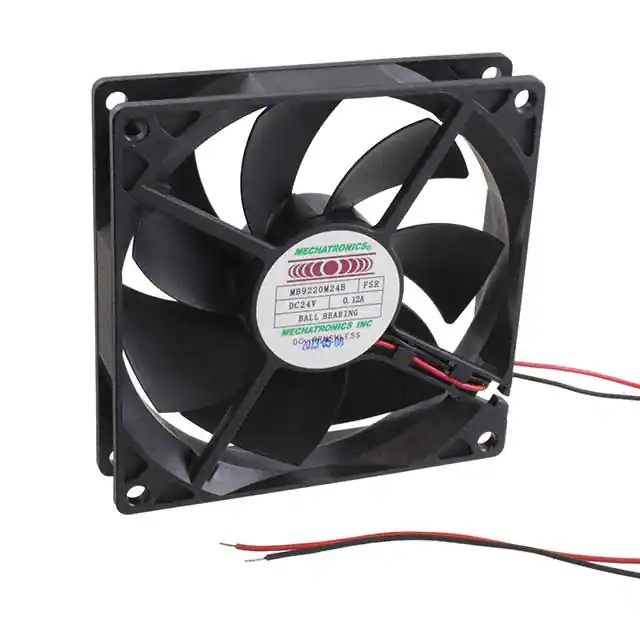

MB9220M24B-FSRFAN AXIAL 92X19.5MM 24VDC WIRE |
0 | - |
|
数据表 |
MB9220 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 38.1 CFM (1.07m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.157 lb (71.21 g) | Tubeaxial | - | 19.50mm | 28.0dB(A) | - | cUL, UL | 2500 RPM | - | 2 Wire Leads | - |
|
|
GB0535ADB3-8FAN BLOWER 34.8X7.3MM 5VDC WIRE |
0 | - |
|
数据表 |
GB | - | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 0.812 CFM (0.023m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.026 lb (11.79 g) | Blower | - | 7.30mm | 20.0dB(A) | 250 mW | CE, CUR, TUV, UL | 5000 RPM | 14 ~ 194°F (-10 ~ 90°C) | 2 Wire Leads | - |
|
|
AF40200VX-1000U-A99FAN AXIAL 5VDC 40X20MM |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 20.00mm | 30.5dB(A) | 0.9 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 2 Wire Leads | - |
