直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F251R-12LCFAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
F251R | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | 0.015 lb (6.8 g) | Tubeaxial | - | 10.00mm | 15.0dB(A) | - | - | 8000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
F8025S05B-FSRFAN AXIAL 80X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 25.0 CFM (0.700m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 20.0dB(A) | - | CE, cUL, TUV, UL | 1500 RPM | - | 2 Wire Leads | - |
|
|
CFM-6025BG-150-349-20DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 34.9dB(A) | 1.32 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0801512J2B-BT0FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 720 mW | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0801512L2B-BT0FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 1.2 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0801512M2B-BT0FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.44 W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0702512M2B-2T2FAN 70X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 32.0dB(A) | 1.08 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801524J2B-3T0FAN 80X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 1.44 W | CE, cURus | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0801524L2B-3T0FAN 80X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 2.4 W | CE, cURus | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0801524M2B-3T0FAN 80X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.88 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0802012U2B-3T0FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.171 lb (77.56 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 43.0dB(A) | 3.6 W | CE, cURus, TUV | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0501512M2B-BT0FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.084 lb (38.1 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 1.08 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0802024H2B-2T0FAN 80X20MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 36.0dB(A) | 5.76 W | CE, cURus | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0501524M2B-3T0FAN 50X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 2.16 W | CE, cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0501024M2B-3T0FAN 50X10MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 1.92 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0802024U2B-2T0FAN 80X20MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 43.0dB(A) | 7.2 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MC20100V2-000U-A99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | 0.012 lb (5.44 g) | Tubeaxial | Auto Restart | 10.00mm | 20.0dB(A) | 780 mW | CUR, TUV, UL | 14000 RPM | - | 2 Wire Leads | - |
|
AFB0712VHD-R00FAN AXIAL 70X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 46.9 CFM (1.31m³/min) | 0.285 in H2O (71.0 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 44.3dB(A) | 4.2 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

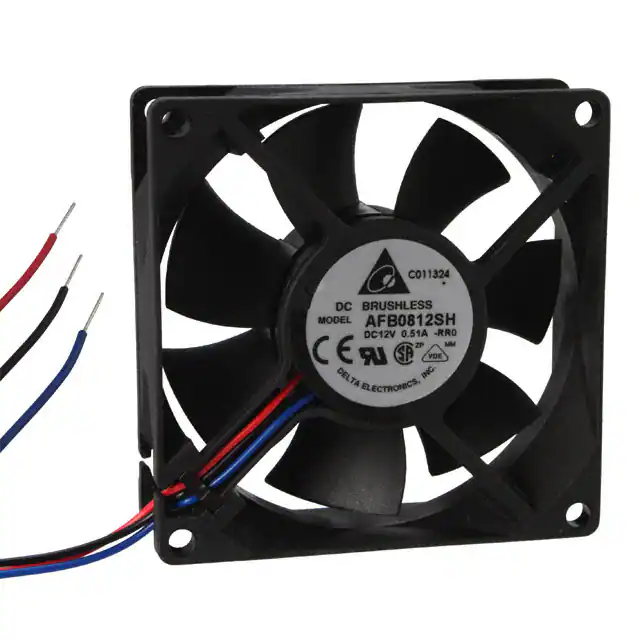

AFB0812SH-RR0FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 40.0dB(A) | 4.08 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MC25101V1-000U-A99FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.017 lb (7.71 g) | Tubeaxial | Auto Restart | 10.00mm | 23.0dB(A) | 690 mW | CE, CUR, TUV, UL | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
