直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4010E12B1-RSR-WSFAN AXIAL 40X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.30mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 4 Wire Leads | - |
|
|
G4010H12B1-RSR-WSFAN AXIAL 40X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.30mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
|
|
CFM-4015B-245-176-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 5.0 CFM (0.140m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.10mm | 17.6dB(A) | 0.72 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MF60151V1-B00U-A99FAN BLOWER 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 5.7 CFM (0.160m³/min) | 0.440 in H2O (109.6 Pa) | Vapo-Bearing™ | 0.081 lb (36.74 g) | Blower | Auto Restart | 15.00mm | 40.2dB(A) | 1.08 W | cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-4020BG-1100-389FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.8 CFM (0.330m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 38.9dB(A) | 2.4 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
GB0535ACB1-8.B2208.GNFAN BLOWER 34.8X6MM 5VDC WIRE |
0 | - |
|
数据表 |
GB | Bulk | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 0.880 CFM (0.025m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 0.022 lb (9.98 g) | Blower | - | 6.00mm | 31.0dB(A) | 700 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
.jpg)
|

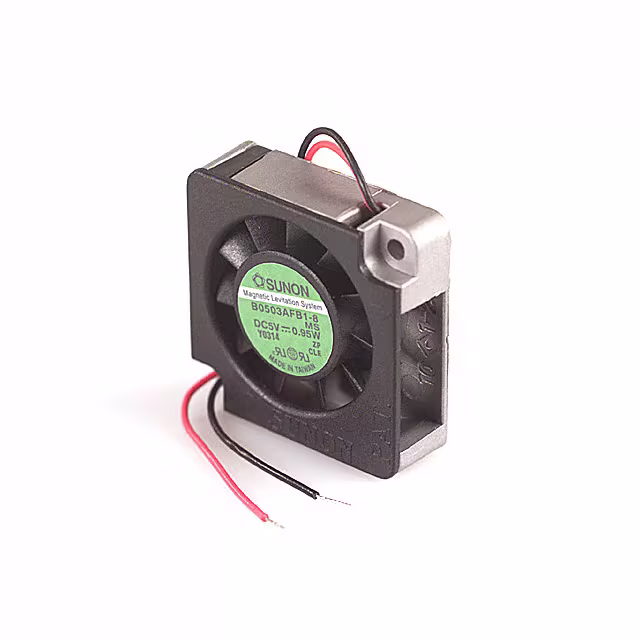

B0503AFB1-8 MSFAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 1.3 CFM (0.036m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.023 lb (10.43 g) | Blower | - | 10.00mm | 36.0dB(A) | 950 mW | - | 10000 RPM | - | 2 Wire Leads | - |
|
|
DC0801512M2B-2T2FAN 80X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.44 W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801512L2B-2T2FAN 80X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 30.0dB(A) | 1.2 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0801512J2B-2T2FAN 80X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 25.0dB(A) | 720 mW | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501512M2B-2T2FAN 50X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 30.0dB(A) | 1.08 W | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
AFB0612HHCFAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 24.7 CFM (0.692m³/min) | 0.204 in H2O (51.0 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Protection | 13.00mm | 35.0dB(A) | 2.4 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

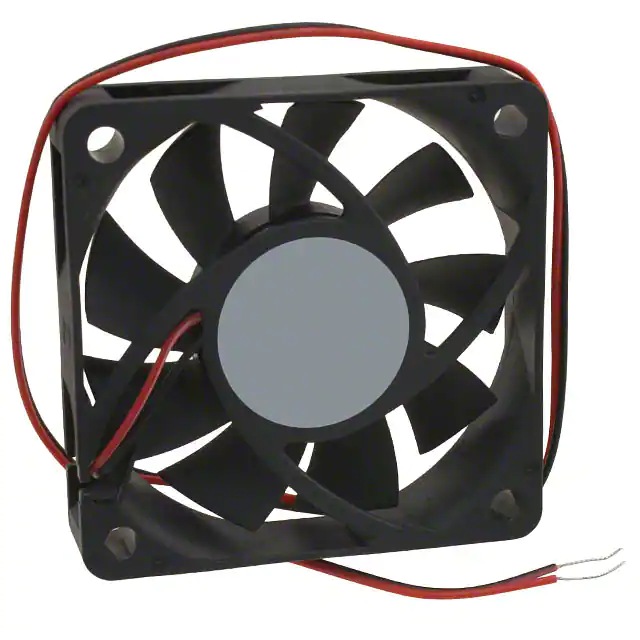

AFB0612HCFAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Protection | 13.00mm | 31.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-9330B-220-346-20DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93B | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 29.50mm | 34.6dB(A) | 1.68 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-9330B-120-346-20DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93B | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 29.50mm | 34.6dB(A) | 1.44 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
EF80252B1-1000U-G99FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
EF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (45.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 1.56 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
EF80252B3-1000U-G9924VDC FAN 80X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 0.89 W | CCC, CE, cURus, TUV, UKCA | 2600 RPM | - | 3 Wire Leads | - |
|
|
EF80252B2-1000U-G9924VDC FAN 80X25MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.16 W | CCC, CE, cURus, TUV, UKCA | 2900 RPM | - | 3 Wire Leads | - |
|
|
G4020E12B2-RSFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4020M05B-RSFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 26.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
