直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB0405HHA-AR00FAN BLOWER 40X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 3.0 CFM (0.084m³/min) | 0.564 in H2O (140.5 Pa) | Ball | 0.027 lb (12.25 g) | Blower | Locked Rotor Sensor | 10.00mm | 34.5dB(A) | 800 mW | CE, CSA, UL, VDE | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BFB0305LA-CF00FAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 450 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AF40200VX-1000U-G995VDC FAN 40X20MM ALARM |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.5dB(A) | 0.9 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 3 Wire Leads | - |
|
|
AF40201VX-1000U-G9912VDC FAN 40X20MM ALARM |
0 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.5dB(A) | 0.92 W | CCC, CE, cURus, TUV, UKCA | 8600 RPM | - | 3 Wire Leads | - |
|

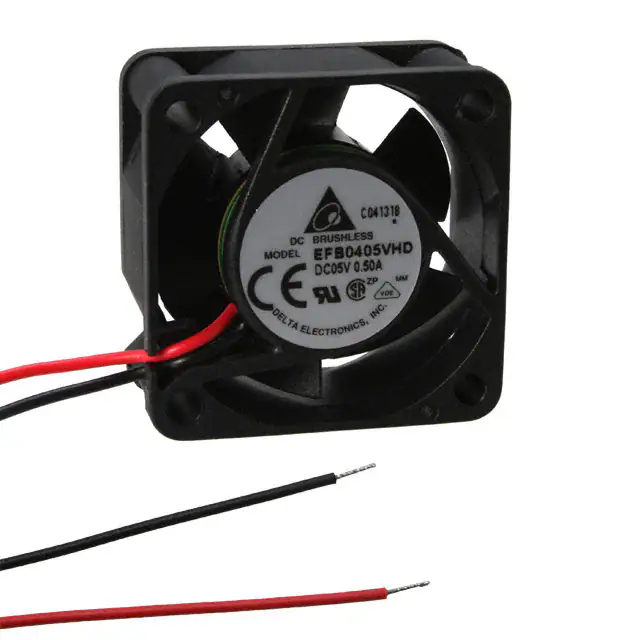

EFB0405VHDFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 32.5dB(A) | 1.6 W | CE, CSA, UL, VDE | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6020B-150-368-22FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.1 CFM (0.535m³/min) | 0.180 in H2O (45.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 36.8dB(A) | 2.52 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
.jpg)
|

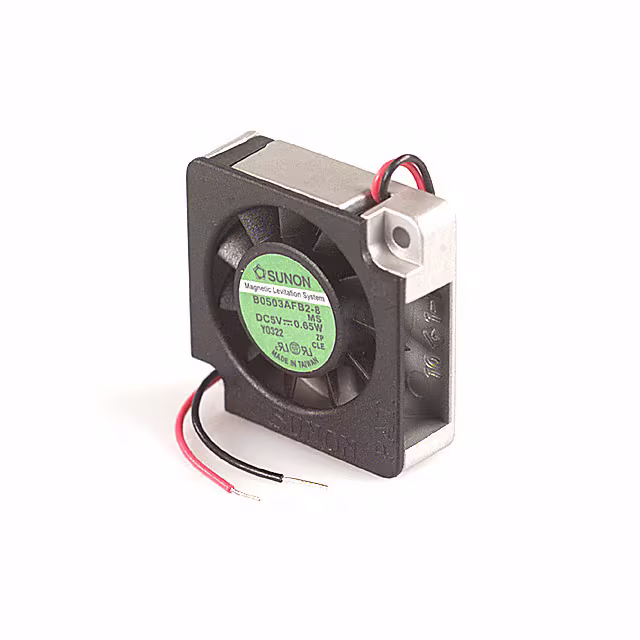

B0503AFB2-8 MSFAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 1.1 CFM (0.031m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.023 lb (10.43 g) | Blower | - | 10.00mm | 30.0dB(A) | 650 mW | - | 8000 RPM | - | 2 Wire Leads | - |
|
G8020E24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
G8020H12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 43.0 CFM (1.20m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 33.0dB(A) | - | CE, cUL, TUV, UL | 3500 RPM | - | 2 Wire Leads | - |
|
G8020L12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 25.0dB(A) | - | CE, cUL, TUV, UL | 2500 RPM | - | 2 Wire Leads | - |
|
|
G8020L24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 25.0dB(A) | - | CE, cUL, TUV, UL | 2500 RPM | - | 2 Wire Leads | - |
|
|
G8020M05B-RSRFAN AXIAL 80X20.8MM 5VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
|
G8020M24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 3000 RPM | - | 2 Wire Leads | - |
|
|
G8020S12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 2 Wire Leads | - |
|
|
G8020S05B-RSRFAN AXIAL 80X20.8MM 5VDC WIRE |
0 | - |
|
数据表 |
G8020 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 0.185 lb (83.91 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.80mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 2000 RPM | - | 2 Wire Leads | - |
|
DC0802512M2B-3T0FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 44.0dB(A) | 7.8 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0802512L2B-3T0FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 42.0dB(A) | 4.8 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0802512I2B-3T0FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 2.4 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0802524I2B-2T0FAN 80X25MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.40mm | 37.0dB(A) | 3.12 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802524L2B-2T0FAN 80X25MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.40mm | 42.0dB(A) | 4.8 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
