直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0912VHD-F00FAN AXIAL 92X20MM 12VDC WIRE |
100 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 66.1 CFM (1.85m³/min) | 0.198 in H2O (49.3 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 40.5dB(A) | 3.36 W | CE, CSA, UL, VDE | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

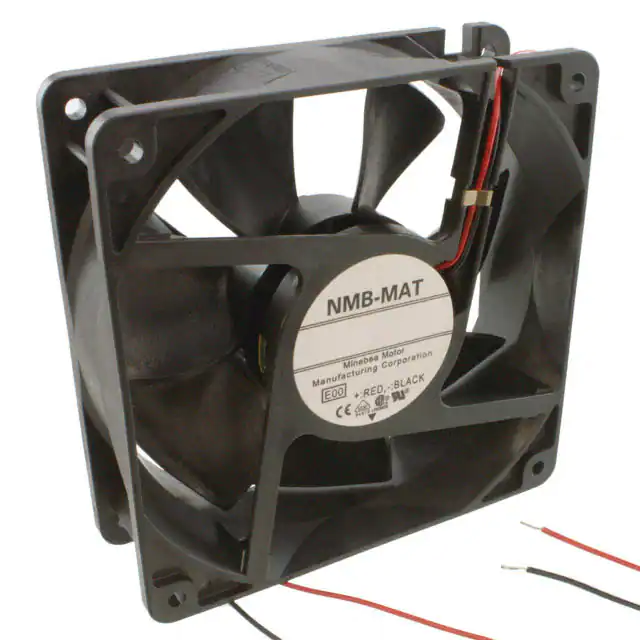

4715KL-05W-B10-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
62 | - |
|
数据表 |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | - | 38.40mm | 37.0dB | 3.6 W | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

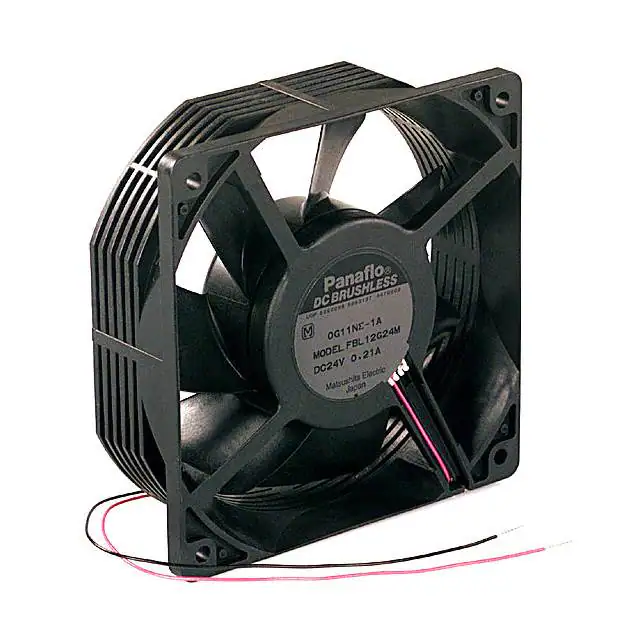

FBL12G24M1AFAN AXIAL 120X38MM 24VDC WIRE |
12 | - |
|
数据表 |
FBL | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 86.5 CFM (2.42m³/min) | 0.189 in H2O (47.1 Pa) | Hydro-wave (HWB) | 0.595 lb (269.89 g) | Tubeaxial | - | 38.00mm | 35.5dB | 2.98 W | - | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

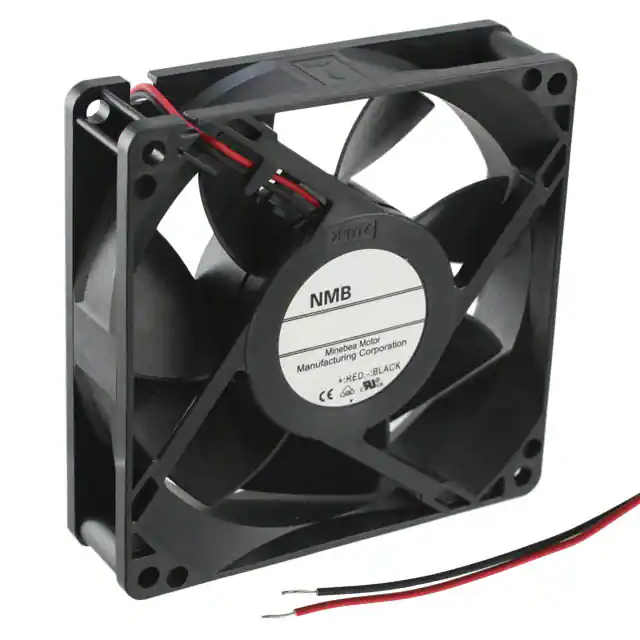

3610VL-05W-B30-B00FAN AXIAL 92X25MM 24VDC WIRE |
59 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 61.1 CFM (1.71m³/min) | 0.261 in H2O (65.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | - | 25.00mm | 38.5dB(A) | 3.36 W | CE, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
NYW03010012LL-12FAN AXIAL 30X10.5MM 12VDC WIRE |
20 | - |
|
数据表 |
NYW03010 | Box | Active | 12VDC | Square - 30mm L x 30mm H | - | - | - | - | Tubeaxial | - | 10.50mm | - | - | - | - | - | 2 Wire Leads | - |
|
BG0702-B045-00L-00FAN BLOWER 75.7X25MM 12VDC WIRE |
27 | - |
|
数据表 |
BG | Bulk | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 9.5 CFM (0.266m³/min) | 0.614 in H2O (153.0 Pa) | Ball | 0.198 lb (89.81 g) | Blower | Locked Rotor Sensor | 25.00mm | 43.0dB | 3 W | CE, CSA, UL | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

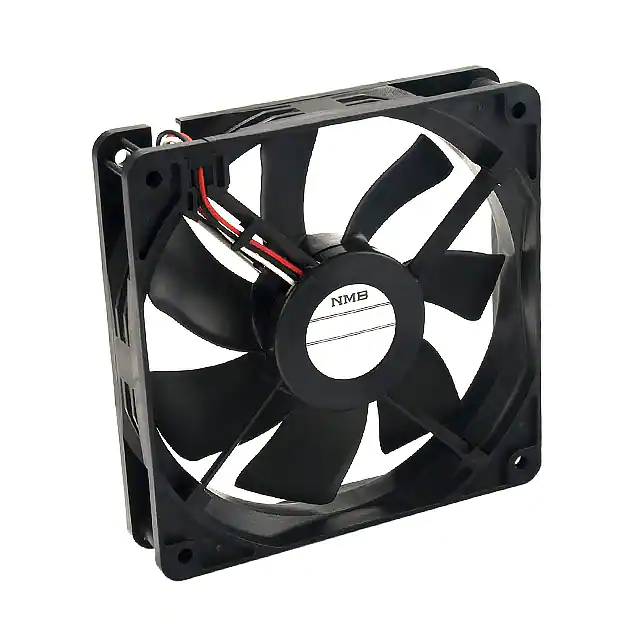

11925SA-12N-AL-00FAN AXIAL 119X25MM 12VDC WIRE |
96 | - |
|
数据表 |
11925SA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 37.0dB | 2.88 W | - | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
G9232M12BPLB1-7FAN AXIAL 92X32MM 12VDC WIRE |
33 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 60.3 CFM (1.71m³/min) | 0.220 in H2O (54.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 32.00mm | 35.3dB(A) | 2.52 W | CE, cUL, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11925SA-12N-EA-00FAN AXIAL 119X25MM 12VDC WIRE |
24 | - |
|
数据表 |
11925SA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 91.0 CFM (2.55m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.309 lb (140.16 g) | Tubeaxial | - | 25.00mm | 37.0dB | 2.88 W | - | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9GV0412G301FAN AXIAL 40X28MM 12VDC WIRE |
25 | - |
|
数据表 |
San Ace 40 | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 21.2 CFM (0.594m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach) | 28.00mm | 52.0dB(A) | 5.64 W | CSA, TUV, UL | 13000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
PF40281B3-000U-A99FAN AXIAL 40X28MM 12VDC WIRE |
85 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.4 CFM (0.431m³/min) | 0.780 in H2O (194.3 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 28.00mm | 43.9dB(A) | 1.95 W | CE, CUR, TUV, UL | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
PF80251V3-1000U-G99FAN AXIAL 80X25MM 12VDC WIRE |
74 | - |
|
数据表 |
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | 0.201 lb (91.17 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 41.5dB(A) | 2.4 W | CE, CUR, TUV, UL | 4200 RPM | - | 3 Wire Leads | - |
|
XYW12038012BSS-5(R)FAN AXIAL 120X38MM 12VDC WIRE |
11 | - |
|
数据表 |
XYW | Box | Active | 12VDC | Square - 120mm L x 120mm H | 142.0 CFM (4.02m³/min) | 0.787 in H2O (196.0 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | 11.4 W | - | 4500 RPM | - | 3 Wire Leads | - |
|
AFB0912H-R00FAN AXIAL 92X25.4MM 12VDC WIRE |
69 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 0.219 lb (99.34 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 34.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

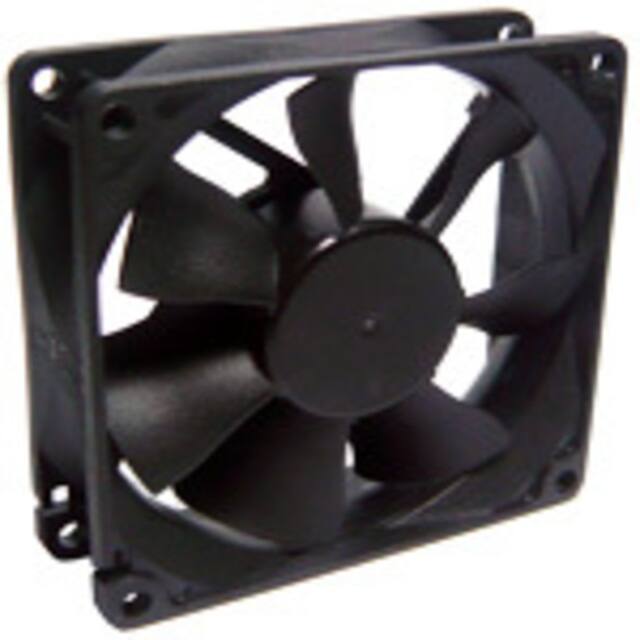

EYW08025012BH-12FAN AXIAL 80X25MM 12VDC WIRE |
20 | - |
|
数据表 |
EYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 42.0 CFM (1.18m³/min) | 0.138 in H2O (34.3 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 33.1dB(A) | 2.28 W | - | 2700 RPM | - | 2 Wire Leads | - |
|
YW08015012BL-12(Q)FAN AXIAL 80X15MM 12VDC WIRE |
20 | - |
|
数据表 |
YW08015 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 23.5 CFM (0.658m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | - | 15.00mm | 19.0dB(A) | 840 mW | - | 2100 RPM | - | 2 Wire Leads | - |
|
AUB1212H-CK15FAN AXIAL 120X25.4MM 12VDC WIRE |
90 | - |
|
数据表 |
AUB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 88.6 CFM (2.48m³/min) | 0.161 in H2O (40.2 Pa) | Superflo | 0.485 lb (220.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 38.0dB(A) | 3.24 W | CE, CSA, UL, VDE | 2200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
QYW09225012BL-12FAN AXIAL 92X25MM 12VDC WIRE |
20 | - |
|
数据表 |
QYW9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.9 CFM (0.725m³/min) | 0.083 in H2O (20.6 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 16.7dB(A) | 420 mW | - | 2000 RPM | - | 2 Wire Leads | - |
|
|
QYW09225012BH-12FAN AXIAL 92X25MM 12VDC WIRE |
20 | - |
|
数据表 |
QYW9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 50.3 CFM (1.41m³/min) | 0.272 in H2O (67.7 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 35.0dB(A) | 1.74 W | - | 4000 RPM | - | 2 Wire Leads | - |
|
|
3610VL-04W-B50-E00FAN AXIAL 92X25MM 12VDC WIRE |
76 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | 0.393 in H2O (98.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | - | 25.00mm | 45.0dB(A) | 4.8 W | CE, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
