直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD1225B12W11-87-2RDC Fan 120x120x25mm 12VDC |
39 | - |
|
数据表 |
96 | Tape & Box (TB) | Active | 12VDC | Square - 120mm L x 120mm H | 122.2 CFM (3.46m³/min) | 0.343 in H2O (85.4 Pa) | Ball | 0.32 lb (145.15 g) | Tubeaxial | Auto Restart | 25.00mm | 50.4dB(A) | 9 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FD6025B12W7-83-2NDC Axial Fan 60x60x25mm 12VDC |
28 | - |
|
数据表 |
83 | Tape & Box (TB) | Active | 12VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.306 in H2O (76.4 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 35.0dB(A) | 3 W | CE, cUL, TUV, UL | 4800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FD9225B24W7-81-2RDC Axial Fan 92x92x25mm 24VDC |
9 | - |
|
数据表 |
81 | Tape & Box (TB) | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 60.0 CFM (1.68m³/min) | 0.134 in H2O (33.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 33.7dB(A) | 4.32 W | cUL, TUV, UL | 2800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9GA0812A20021FAN AXIAL 80X32MM 12VDC WIRE |
62 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 32.00mm | - | 3.72 W | - | - | - | 2 Wire Leads | - |
|
HYW08025048BSS-12FAN AXIAL 80X25.4MM 48VDC WIRE |
20 | - |
|
数据表 |
HYW08025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | - | 25.40mm | 53.5dB(A) | 7.68 W | - | 6200 RPM | - | 2 Wire Leads | - |
|
|
HYW08025048BM-12FAN AXIAL 80X25.4MM 48VDC WIRE |
20 | - |
|
数据表 |
HYW08025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.354 in H2O (88.2 Pa) | Ball | - | Tubeaxial | - | 25.40mm | 43.5dB(A) | 4.08 W | - | 4400 RPM | - | 2 Wire Leads | - |
|
BG0903-B054-000-00FAN BLOWER 97X33MM 24VDC WIRE |
40 | - |
|
数据表 |
09533GA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | 0.463 lb (210.01 g) | Blower | - | 33.00mm | 54.5dB | 11.8 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
G9225E24B6-FSR-EM-L20FAN AXIAL 92X25MM 24VDC WIRE |
57 | - |
|
数据表 |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 58.0 CFM (1.62m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 3 Wire Leads | - |
|
OD9238-12HHBXC10AFAN AXIAL 92X38MM 12VDC WIRE |
44 | - |
|
数据表 |
OD9238 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 110.0 CFM (3.08m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.3dB(A) | 18.2 W | CE, cURus, TUV, UR | 8000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
06038DA-12S-ECF-0FAN AXIAL 60X38MM 12VDC WIRE |
67 | - |
|
数据表 |
06038DA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 38.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MS6038M48B-FSR-2EMFAN AXIAL 60X38MM 48VDC WIRE |
100 | - |
|
数据表 |
MS6038-S | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 44.0 CFM (1.23m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart | 38.00mm | 54.0dB(A) | - | - | 8000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
NYW06025048BSS-W-6FAN AXIAL 60X25MM 48VDC WIRE |
20 | - |
|
数据表 |
NYW06025-W | Box | Active | 48VDC | Square - 60mm L x 60mm H | 32.7 CFM (0.916m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 42.0dB(A) | 3.84 W | - | 6800 RPM | - | 2 Wire Leads | - |
|
1-NPT/603-1078FAN AXL 120X38MM 12VDC RECT CONN |
8 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 7.2 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Position Rectangular Connector | - |
|
9RA0648G40011FAN AXIAL 60X25MM 48VDC WIRE |
65 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 36.0dB(A) | 2.88 W | cURus, TUV | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
EYW08038012BL-EAK-1280X38MM 12V BALL 7000RPM W/PWM, |
36 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UB3C3-500BFAN BLOWER 12X3MM VAPO 3VDC WIRE |
21 | - |
|
数据表 |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | 0.002 lb (0.91 g) | Blower | Auto Restart, Speed Sensor (Tach) | 3.00mm | 26.0dB(A) | 100 mW | CE | 15500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP58 - Dust Protected, Waterproof |
|
UB3C3-500FAN BLOWER 12X3MM VAPO 3VDC WIRE |
85 | - |
|
数据表 |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | 0.002 lb (0.91 g) | Blower | Auto Restart, Speed Sensor (Tach) | 3.00mm | 26.0dB(A) | 100 mW | CE | 15500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
MXB9733H24B-BSR-PCFAN BLOWER 97X33MM 24VDC WIRE |
50 | - |
|
数据表 |
MXB9733 | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 28.5 CFM (0.798m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 0.397 lb (180.08 g) | Blower | Parylene Coating, Thermal Overload Protector (TOP) | 33.00mm | 55.0dB(A) | - | CE, cUL, TUV, UL | 3300 RPM | - | 2 Wire Leads | - |
|
MR1238M24B-FSRFAN AXIAL 120X38MM 24VDC WIRE |
40 | - |
|
数据表 |
MR1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 210.0 CFM (5.88m³/min) | 0.850 in H2O (211.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Auto Restart | 38.00mm | 61.7dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|

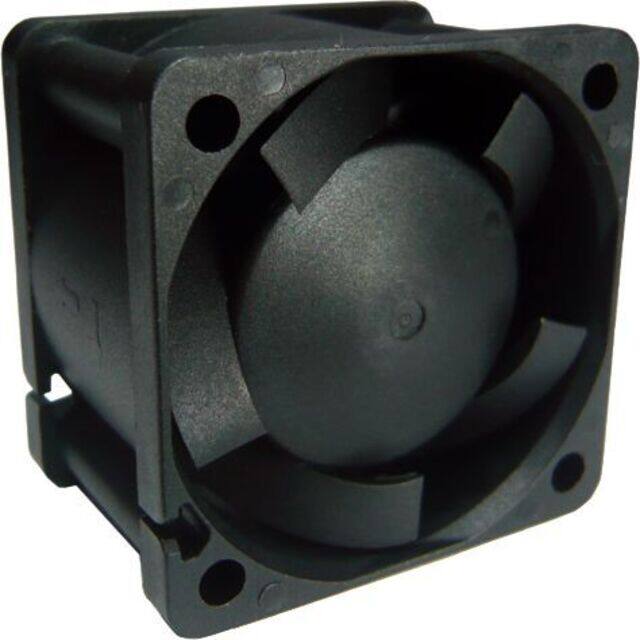

XYW03828012BU-12FAN AXIAL 38X28MM 12VDC WIRE |
20 | - |
|
数据表 |
XYW03828 | Box | Active | 12VDC | Square - 38mm L x 38mm H | - | - | Ball | - | Tubeaxial | - | 28.00mm | - | - | - | - | - | 2 Wire Leads | - |
