直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8015X24B1+6-RGRFAN AXIAL 80X15MM 24VDC |
70 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

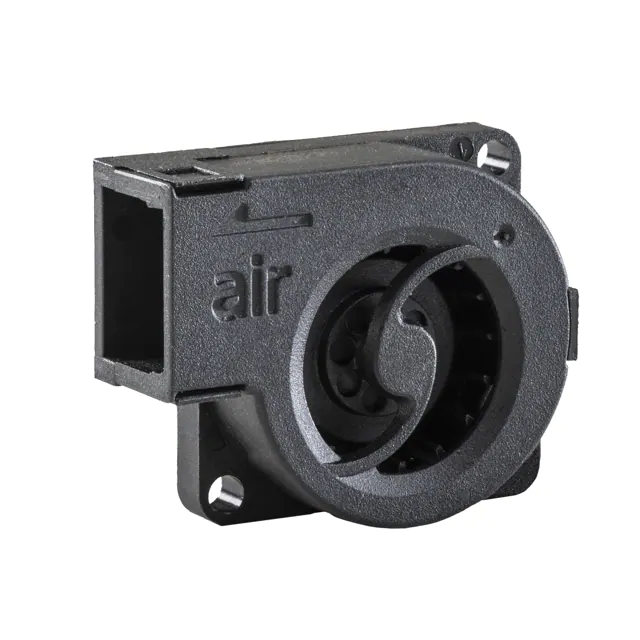

AGB208FAN MICR BLOWER 26X8MM 5VDC WIRE |
77 | - |
|
数据表 |
Air-G | Box | Active | 5VDC | Rectangular - 26mm L x 20mm H | 0.570 CFM (0.016m³/min) | 0.186 in H2O (46.3 Pa) | Axial Groove | 0.007 lb (3.18 g) | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 8.00mm | 35.0dB(A) | - | CE | 9000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP58 - Dust Protected, Waterproof |
|
AGB454FAN MICR BLOWER 45X4MM 5VDC WIRE |
78 | - |
|
数据表 |
Air-G | Box | Active | 5VDC | Square - 45mm L x 45mm H | 1.4 CFM (0.040m³/min) | 0.406 in H2O (101.0 Pa) | Axial Groove | 0.017 lb (7.71 g) | Micro Blower | Locked Rotor Protection, Auto Restart, Polarity Protection | 4.00mm | 30.0dB(A) | - | CE | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP58 - Dust Protected, Waterproof |
|
NYW06025024BSS-W-12FAN AXIAL 60X25MM 24VDC WIRE |
20 | - |
|
数据表 |
NYW06025-W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 31.2 CFM (0.873m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 51.5dB(A) | 2.64 W | - | 6500 RPM | - | 2 Wire Leads | - |
|
|
NYW06025012BH-W-12FAN AXIAL 60X25MM 12VDC WIRE |
20 | - |
|
数据表 |
NYW06025-W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 24.5 CFM (0.685m³/min) | 0.366 in H2O (91.2 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 36.0dB(A) | 1.44 W | - | 5100 RPM | - | 2 Wire Leads | - |
|
|
NYW06025012BSS-W-12FAN AXIAL 60X25MM 12VDC WIRE |
20 | - |
|
数据表 |
NYW06025-W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 31.2 CFM (0.873m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 41.0dB(A) | 2.28 W | - | 6500 RPM | - | 2 Wire Leads | - |
|

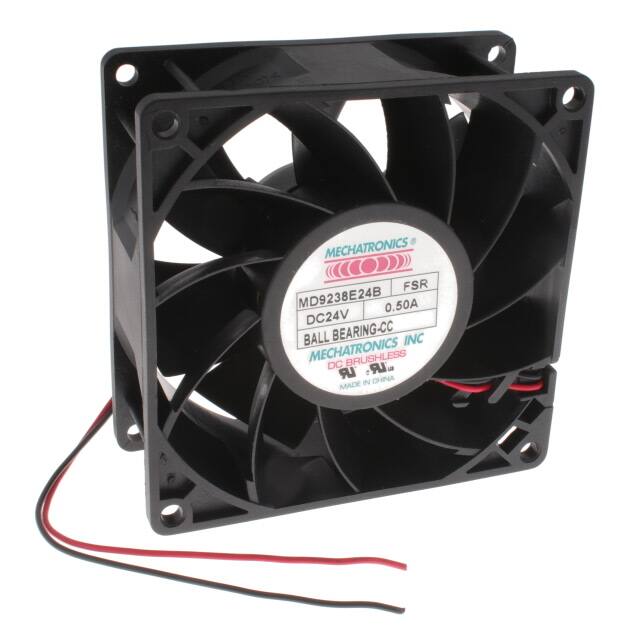

MD9238E24B-FSR-CC-L10FAN AXIAL 92X38MM 24VDC WIRE |
11 | - |
|
数据表 |
MD9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 110.6 CFM (3.10m³/min) | 0.670 in H2O (166.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 38.00mm | 55.0dB(A) | - | CE, TUV, UL | 4800 RPM | - | 2 Wire Leads | - |
|
HYW08025012BSS-12FAN AXIAL 80X25.4MM 12VDC WIRE |
20 | - |
|
数据表 |
HYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | - | 25.40mm | 53.5dB(A) | 7.2 W | - | 6200 RPM | - | 2 Wire Leads | - |
|
|
HYW08025024BM-12FAN AXIAL 80X25.4MM 24VDC WIRE |
20 | - |
|
数据表 |
HYW08025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.354 in H2O (88.2 Pa) | Ball | - | Tubeaxial | - | 25.40mm | 43.5dB(A) | 3.12 W | - | 4400 RPM | - | 2 Wire Leads | - |
|
|
HYW08025012BM-12FAN AXIAL 80X25.4MM 12VDC WIRE |
20 | - |
|
数据表 |
HYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.354 in H2O (88.2 Pa) | Ball | - | Tubeaxial | - | 25.40mm | 43.5dB(A) | 3.12 W | - | 4400 RPM | - | 2 Wire Leads | - |
|
|
HYW08025024BSS-12FAN AXIAL 80X25.4MM 24VDC WIRE |
20 | - |
|
数据表 |
HYW08025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | - | 25.40mm | 53.5dB(A) | 7.92 W | - | 6200 RPM | - | 2 Wire Leads | - |
|

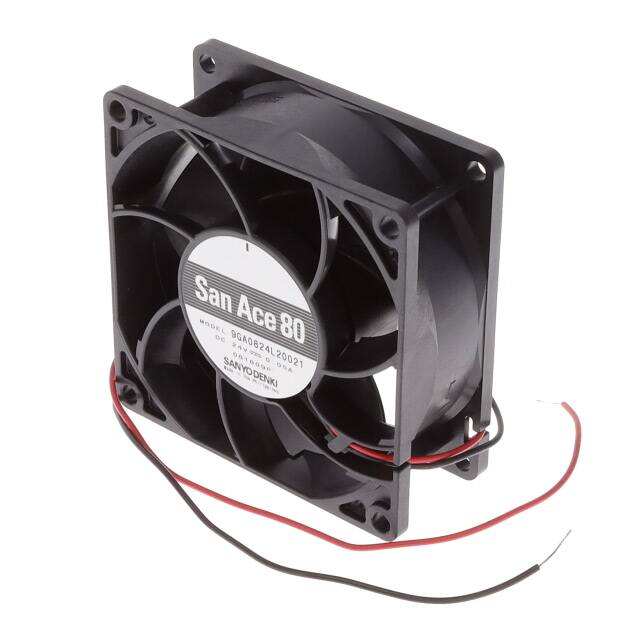

9GA0824L20021FAN AXIAL 80X32MM 24VDC WIRE |
62 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 32.00mm | - | 1.2 W | - | - | - | 2 Wire Leads | - |
|
FN-GALE-02GALE EXTREME MINING FAN ASIC |
11 | - |
|
数据表 |
FN | Retail Package | Active | 12VDC | Square - 120mm L x 120mm H | 195.0 CFM (5.52m³/min) | 0.945 in H2O (235.4 Pa) | Ball | - | Tubeaxial | PWM Control | 38.00mm | 60.0dB(A) | 33.6 W | - | 500/6000 RPM | - | 4 Position Rectangular Connector | - |
|

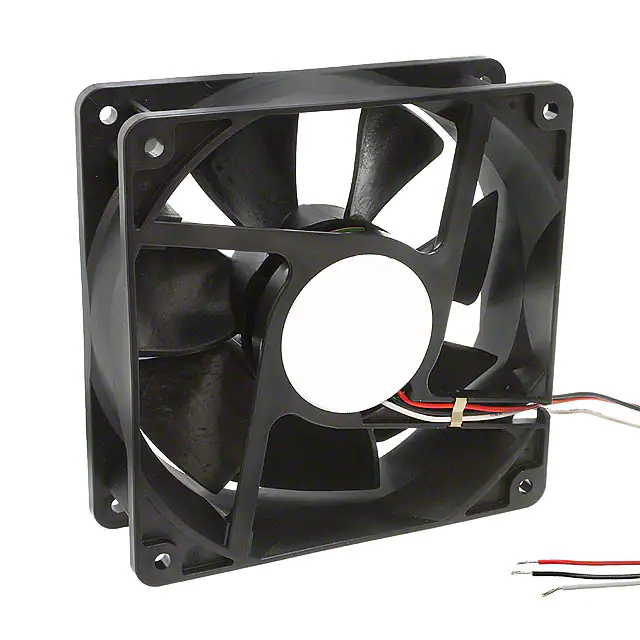

4715KL-07W-B39-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
96 | - |
|
数据表 |
11938KA | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 42.5dB | 7.68 W | CE, CSA, UL, VDE | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BG0903-B054-00L-00FAN BLOWER 97X33MM 24VDC WIRE |
58 | - |
|
数据表 |
09533GA | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 28.6 CFM (0.801m³/min) | 1.373 in H2O (342.0 Pa) | Ball | 0.463 lb (210.01 g) | Blower | Locked Rotor Sensor | 33.00mm | 54.5dB | 11.8 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
CFR1B12HFAN MIC BLOWER 43.8X23.5MM 12VDC |
42 | - |
|
数据表 |
CFR1B | Tape & Box (TB) | Active | 12VDC | Rectangular - 43.8mm L x 23mm H | 6.7 CFM (0.188m³/min) | 0.190 in H2O (46.1 Pa) | Ball | - | Micro Blower | Auto Restart, Locked Rotor Protection | 23.50mm | 28.0dB(A) | 840 mV | CE, cUL, TUV, UL | 8000 RPM | -10°C ~ 70°C | - | - |
|
|
CFR1B5HFAN MICR BLOWER 43.8X23.5MM 5VDC |
10 | - |
|
数据表 |
CFR1B | Tape & Box (TB) | Active | 5VDC | Rectangular - 43.8mm L x 23mm H | - | 0.190 in H2O (46.1 Pa) | Ball | - | Micro Blower | Auto Restart, Locked Rotor Protection | 23.50mm | 28.0dB(A) | 840 mV | CE, cUL, TUV, UL | 8000 RPM | -10°C ~ 70°C | - | - |
|
|
CFR1B12H-SMINI. BLOWER 12VDC/TACH |
9 | - |
|
数据表 |
CFR1B | Tape & Box (TB) | Active | 12VDC | Rectangular - 43.8mm L x 23mm H | - | 0.190 in H2O (46.1 Pa) | Ball | - | Micro Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 23.50mm | 28.0dB(A) | 840 mV | CE, cUL, TUV, UL | 8000 RPM | -10°C ~ 70°C | - | - |
|

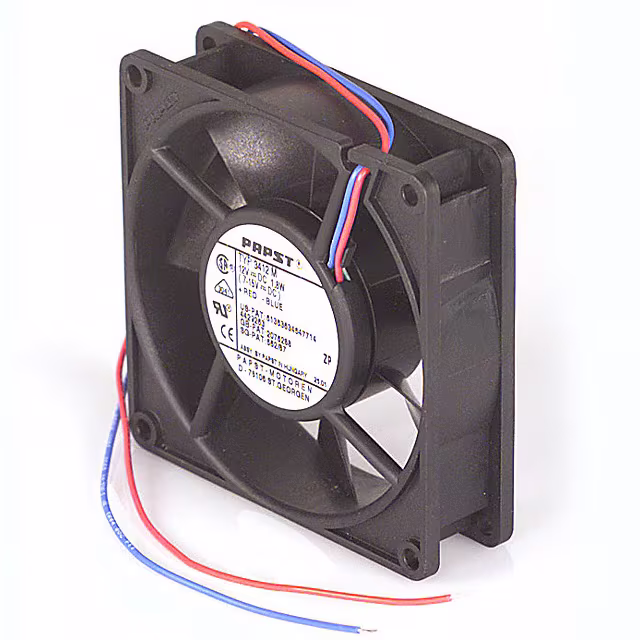

3414MFAN AXIAL 92X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
3400 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 42.0 CFM (1.18m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 32.0dB(A) | 1.8 W | - | - | - | 2 Wire Leads | - |
|
|
FD6025B24W11-21-2RDC Axial Fan 60x60x25mm 24VDC |
73 | - |
|
数据表 |
21 | Tape & Box (TB) | Active | 24VDC | Square - 60mm L x 60mm H | 40.7 CFM (1.14m³/min) | 0.566 in H2O (141.0 Pa) | Ball | 0.124 lb (56.25 g) | Tubeaxial | Auto Restart | 25.00mm | 47.3dB(A) | 5.04 W | cUL, TUV, UL | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
