直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8015V-230-347-20FAN AXIAL 80X15MM 24VDC WIRE |
90 | - |
|
数据表 |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.15 lb (68.04 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 34.7dB(A) | 2.55 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8015V-227-320-20FAN AXIAL 80X15MM 24VDC WIRE |
68 | - |
|
数据表 |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.15 lb (68.04 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.8 W | CE, cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8015-13-10FAN AXIAL 80X15.4MM 12VDC WIRE |
6 | - |
|
数据表 |
CFM-80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 44.0 CFM (1.23m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 0.132 lb (59.87 g) | Tubeaxial | Auto Restart | 15.40mm | 39.8dB(A) | 2.88 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FN-SX07-22FAN AXL 70X15MM 12VDC RECT CONN |
79 | - |
|
数据表 |
Silent 7 | Retail Package | Active | 12VDC | Square - 70mm L x 70mm H | 19.8 CFM (0.554m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | - | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 15.00mm | 21.8dB(A) | - | CE | 2200 RPM | - | 3 Position Rectangular Connector | - |
|
|
FN-SX05-40FAN AXL 50X15MM 12VDC RECT CONN |
55 | - |
|
数据表 |
Silent 5 | Retail Package | Active | 12VDC | Square - 50mm L x 50mm H | 12.9 CFM (0.361m³/min) | 0.110 in H2O (27.4 Pa) | Hydrodynamic | 0.012 lb (5.44 g) | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 15.00mm | 23.0dB(A) | - | CE | 4000 RPM | - | 3 Position Rectangular Connector | - |
|
|
FN-SX06-32FAN AXL 60X15.5MM 12VDC RECT |
38 | - |
|
数据表 |
Silent 6 | Retail Package | Active | 12VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | - | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 15.50mm | 24.0dB(A) | - | CE | 3200 RPM | - | 3 Position Rectangular Connector | - |
|
04010SS-05N-AA-00FAN AXIAL 40X10MM 5VDC WIRE |
27 | - |
|
数据表 |
04010SS | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 10.00mm | 29.0dB | 850 mW | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
D4010L12D-RSRFAN AXIAL 40X10MM 12VDC WIRE |
43 | - |
|
数据表 |
D4010 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | - | - | Sleeve | - | Tubeaxial | Thermal Overload Protector (TOP) | 10.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
YW08025012BMFAN AXIAL 80X25MM 12VDC WIRE |
80 | - |
|
数据表 |
YW | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.083 in H2O (20.6 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.92 W | CE, cURus, TUV | 2500 RPM | - | 2 Wire Leads | - |
|
CFM-7020V-146-415FAN AXIAL 70X20MM 12VDC WIRE |
85 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 43.0 CFM (1.20m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.177 lb (80.29 g) | Tubeaxial | Auto Restart | 20.00mm | 41.5dB(A) | 3.94 W | CE, cURus, TUV | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-7020V-140-375-20FAN AXIAL 70X20MM 12VDC WIRE |
35 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.176 lb (79.83 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 37.5dB(A) | 2.7 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
99484603FAN AXIAL 80X25MM 24VDC WIRE |
33 | - |
|
数据表 |
- | Box | Active | 24VDC | Square - 80mm L x 80mm H | 7.8 CFM (0.218m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | 0.078 lb (35.38 g) | Tubeaxial | - | 25.00mm | 29.0dB(A) | 0.6 W | cUL, UL | 6500 RPM | - | 2 Wire Leads | - |
|
FN-PX08-21SILENT 8 PWM - BLACK |
48 | - |
|
数据表 |
FN | Retail Package | Active | 12VDC | Square - 80mm L x 80mm H | 20.7 CFM (0.580m³/min) | 0.041 in H2O (10.3 Pa) | Hydrodynamic | 0.15 lb (68.04 g) | Tubeaxial | - | 25.00mm | 18.9dB(A) | 2.16 W | - | 1600 RPM | - | 3 Position Rectangular Connector | - |
|

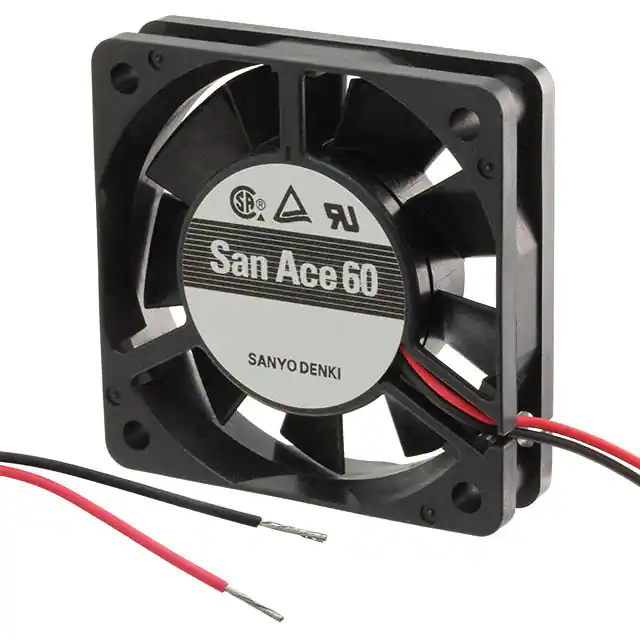

109P0624H602FAN AXIAL 60X20MM 24VDC WIRE |
59 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 31.0dB(A) | 1.68 W | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

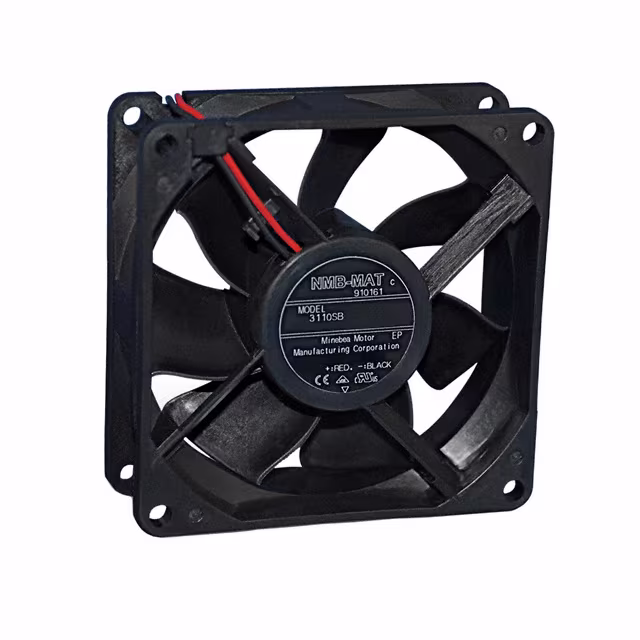

08025SA-24N-ET-00FAN AXIAL 80X25MM 24VDC WIRE |
31 | - |
|
数据表 |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FN-PX09-20FAN AXL 92X25MM 12VDC RECT CONN |
43 | - |
|
数据表 |
Silent 9 PWM | Retail Package | Last Time Buy | 12VDC | Square - 92mm L x 92mm H | 37.9 CFM (1.07m³/min) | 0.079 in H2O (19.6 Pa) | Hydrodynamic | - | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 25.00mm | 23.5dB(A) | - | CE | 2000 RPM | - | 4 Position Rectangular Connector | - |
|
4520HQ/MF50150V3-C01A-A99DC BLOWER 50X15MM VAPO 2.7CFM |
95 | - |
|
数据表 |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
109R0824G4061FAN AXIAL 80X25MM 24VDC |
60 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 4.8 W | - | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Position Rectangular Connector | - |
|
1604KL-01W-B49-B50FAN AXIAL 40X10MM BALL 5VDC WIRE |
14 | - |
|
数据表 |
04010KA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 5.3 CFM (0.148m³/min) | 0.136 in H2O (33.9 Pa) | Ball | 0.033 lb (14.97 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 25.0dB | 600 mW | - | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FN-TX09-20FAN AXL 92X25MM 12VDC RECT CONN |
91 | - |
|
数据表 |
Silent 9 TC | Retail Package | Last Time Buy | 12VDC | Square - 92mm L x 92mm H | 38.0 CFM (1.06m³/min) | 0.079 in H2O (19.6 Pa) | Hydrodynamic | - | Tubeaxial | Fan Mounts Included, Temperature Sensor | 25.00mm | 23.5dB(A) | - | CE | 2000 RPM | - | 3 Position Rectangular Connector | - |
