直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BW09733012BH-597X33MM 12V BALL 3300RPM W/TACH, |
89 | - |
|
数据表 |
BW09733 | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | 32.4 CFM (0.907m³/min) | 1.106 in H2O (275.5 Pa) | Ball | - | Blower | - | 33.00mm | 48.5dB(A) | 8.88 W | - | 3300 RPM | - | 2 Wire Leads | - |
|
|
NYW03010005BH-630X10MM 5V BALL 7800RPM W/AR, 2 |
64 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
YW04020012LL-N-12FAN AXIAL 40X20MM 12VDC WIRE |
20 | - |
|
数据表 |
YW04020-N | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.4 CFM (0.151m³/min) | 0.087 in H2O (21.7 Pa) | Sintec | - | Tubeaxial | - | 20.00mm | 17.0dB(A) | 360 mW | - | 4000 RPM | - | 2 Wire Leads | - |
|
E9225L12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
19 | - |
|
数据表 |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 35.0 CFM (0.980m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 27.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
|
XYW08032024BL-680X32MM 24V BALL, 3500RPM W/AR, |
72 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2410ML-04W-B50-E00FAN AXIAL 60X25MM 12VDC WIRE |
99 | - |
|
数据表 |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.144 lb (65.32 g) | Tubeaxial | - | 25.00mm | 35.0dB | 2.4 W | CE, CSA, UL, VDE | 4900 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
2410ML-04W-B40-E00FAN AXIAL 60X25MM 12VDC WIRE |
34 | - |
|
数据表 |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.208 in H2O (51.8 Pa) | Ball | 0.144 lb (65.32 g) | Tubeaxial | - | 25.00mm | 33.5dB | 2.04 W | CE, CSA, UL, VDE | 4550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

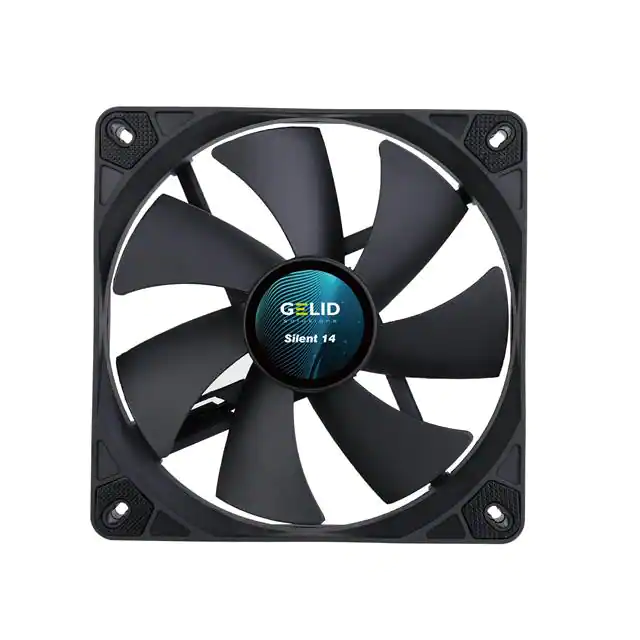

FN-PX14-11SILENT 14 BLACK |
44 | - |
|
数据表 |
FN | Retail Package | Active | 12VDC | Square - 140mm L x 140mm H | 67.4 CFM (1.89m³/min) | 0.053 in H2O (13.2 Pa) | Hydrodynamic | - | Tubeaxial | - | 25.00mm | 21.0dB(A) | - | - | 1000 RPM | - | 3 Position Rectangular Connector | - |
|
3610KL-05W-B60-D00FAN AXIAL 92X25MM 24VDC WIRE |
29 | - |
|
数据表 |
3610KL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 61.8 CFM (1.73m³/min) | 0.229 in H2O (57.0 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 44.5dB | 4.8 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
AFB04512LAFAN AXIAL 45X10MM 12VDC WIRE |
29 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 7.7 CFM (0.216m³/min) | 0.081 in H2O (20.1 Pa) | Ball | 0.035 lb (15.88 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 24.5dB(A) | 960 mW | CE, CSA, UL, VDE | 4000 RPM | - | 2 Wire Leads | - |
|
|
3610KL-04W-B20-D00FAN AXIAL 92X25MM 12VDC WIRE |
18 | - |
|
数据表 |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 33.5 CFM (0.938m³/min) | 0.081 in H2O (20.1 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 29.5dB | 1.32 W | CE, CSA, UL, VDE | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-9225V-145-455FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92V | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | 0.234 lb (106.14 g) | Tubeaxial | Auto Restart | 25.00mm | 45.5dB(A) | 5.12 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FN-PX14P-15FAN AXL 140X25MM 12VDC RECT CONN |
44 | - |
|
数据表 |
Silent Pro 14 PWM | Retail Package | Last Time Buy | 12VDC | Square/Rounded - 140mm L x 140mm H | 80.7 CFM (2.26m³/min) | 0.073 in H2O (18.2 Pa) | Hydrodynamic | - | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 25.00mm | 27.8dB(A) | - | CE | 1500 RPM | - | 4 Position Rectangular Connector | - |
|
|
FN-PX14-12FAN AXL 140X25MM 12VDC RECT CONN |
14 | - |
|
数据表 |
Silent 14 PWM | Retail Package | Last Time Buy | 12VDC | Square - 140mm L x 140mm H | 74.5 CFM (2.09m³/min) | 0.059 in H2O (14.7 Pa) | Hydrodynamic | - | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | - | CE | 1200 RPM | - | 4 Position Rectangular Connector | - |
|
D3010H12B2-RSRFAN AXIAL 30X10MM 12VDC WIRE |
30 | - |
|
数据表 |
D3010 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 10.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
1611RL-04W-B80-B00FAN AXIAL 40X28MM 12VDC WIRE |
21 | - |
|
数据表 |
1611RL | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 19.4 CFM (0.543m³/min) | 1.611 in H2O (402.0 Pa) | Ball | 0.106 lb (48.08 g) | Tubeaxial | - | 28.00mm | 60.0dB | 7.44 W | CE, UL, VDE | 18000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
2406KL-04W-B59-L00FAN AXIAL 60X15MM 12VDC WIRE |
79 | - |
|
数据表 |
06015KA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 18.3 CFM (0.512m³/min) | 0.205 in H2O (51.2 Pa) | Ball | 0.099 lb (44.91 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 34.0dB | 1.92 W | CE, CSA, UL, VDE | 4600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
OD5010-05LBFAN AXIAL 50X10.5MM 5VDC WIRE |
15 | - |
|
数据表 |
OD5010 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | - | - | Ball | - | Tubeaxial | - | 10.50mm | - | - | cURus | - | - | 2 Wire Leads | - |
|
F8025E12B1-FHRFAN AXIAL 80X25MM 12VDC WIRE |
6 | - |
|
数据表 |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|

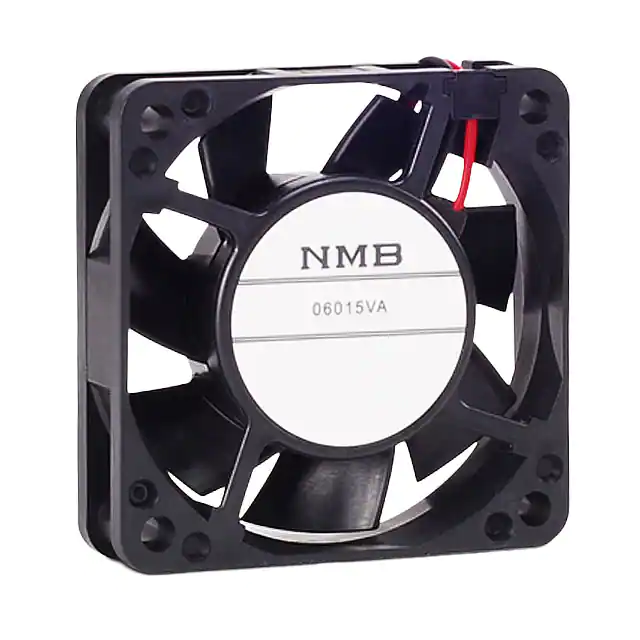

2406VL-04W-B39-B50FAN AXIAL 60X15MM 12VDC WIRE |
84 | - |
|
数据表 |
06015VA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 14.5 CFM (0.406m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 28.5dB | 960 mW | - | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
