直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

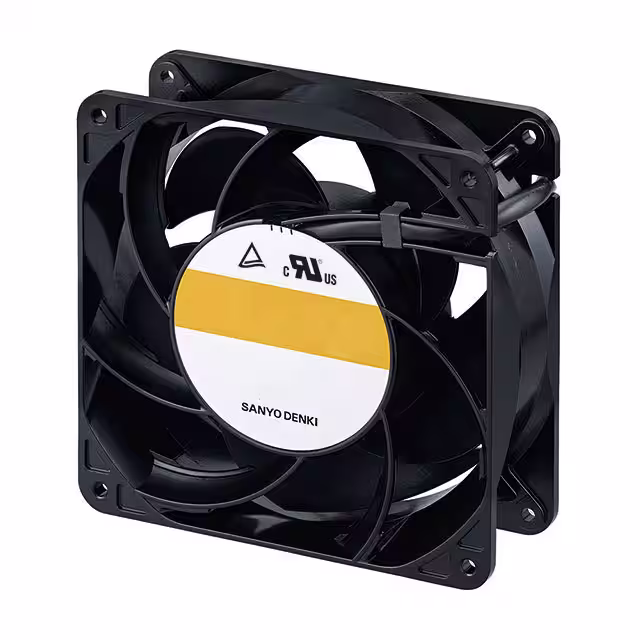

9LG1224G1001FAN |
11 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
9LG1248G1001FAN |
19 | - |
|
数据表 |
San Ace 120L | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9GV5724P5H03FAN AXIAL 172X51MM 24VDC WIRE |
12 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 400.0 CFM (11.20m³/min) | 2.770 in H2O (690.0 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 51.00mm | 74.0dB(A) | 96 W | CSA, TUV, UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
109E1312A102FAN AXIAL 127X38MM 12VDC WIRE |
18 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 52.0dB(A) | 16.8 W | CSA, TUV, UL | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9GV1424P1H004FAN 24VDC 140X38MM TACH/PWM CONN |
14 | - |
|
数据表 |
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | - | - | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | - |
|
9GP1224P1G001FAN AXIAL 120X38MM 24VDC WIRE |
20 | - |
|
数据表 |
San Ace 120GP | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | 0.97 lb (439.98 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 38.4 W | cURus, TUV | 6550 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9CRLB0612P0G001FAN 60x76mm 12VDC TACH/PWM |
14 | - |
|
数据表 |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 85.7 CFM (2.400m³/min) | 6.000 in H2O (1510.0 Pa) | Ball | - | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.00mm | 75.0dB(A) | 43.2 W | cURus, TUV | 19700 RPM Front, 18300 RPM Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
109E5724H5D01FAN AXIAL 172X51MM 24VDC WIRE |
12 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 52.0dB(A) | 13.92 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1748H501FAN AXIAL 172X51MM 48VDC WIRE |
16 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 47.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
ODB22071-24HB10AFAN IMP MTRZD 221.5X71MM 24VDC |
4 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Round - 221.5mm Dia | 618.0 CFM (17.30m³/min) | 2.410 in H2O (600.0 Pa) | Ball | 3.1 lbs (1.4 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.00mm | 68.0dB | 106 W | CE, cURus, TUV, UR | 3150 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|
|
9EC2048H001FAN AXIAL 200X70MM 48VDC WIRE |
4 | - |
|
数据表 |
San Ace 200 | Box | Active | 48VDC | Round - 200mm Dia | 388.0 CFM (10.86m³/min) | 1.446 in H2O (360.2 Pa) | Ball | 3.9 lbs (1.8 kg) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 70.00mm | 60.0dB(A) | 57.6 W | CSA, TUV, UL | 3600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
F225H1-092-D0720225X92MM 48VDC TACH/PWM |
23 | - |
|
数据表 |
F225H | Bulk | Active | 48VDC | Round - 225mm Dia | 689.0 CFM (19.50m³/min) | 2.000 in H2O (498.2 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 70.0dB | 96 W | CE, cURus | 2650 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
F225G1-092-D0720225X92MM 48VDC IP68 TACH/PWM |
21 | - |
|
数据表 |
F225G | Bulk | Active | 48VDC | Round - 225mm Dia | 689.0 CFM (19.50m³/min) | 2.000 in H2O (498.2 Pa) | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 70.0dB | 96 W | CE, cURus | 2650 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
8315100209AXITWIN FAN,AXIAL,48VDC,321CFM,1 |
14 | - |
|
数据表 |
- | Box | Active | 48VDC | Square - 100mm L x 100mm H | 319.0 CFM (8.93m³/min) | 6.102 in H2O (1520.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 90.00mm | 84.0dB(A) | 135 W | CCC, CE, CSA, EAC, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | IP20 |
|
9W2TP48P0S001FAN IMP MTRZD 221X71MM 48VDC |
18 | - |
|
数据表 |
San Ace 221W | Box | Active | 48VDC | Round - 221mm Dia | 693.0 CFM (19.40m³/min) | 2.650 in H2O (660.0 Pa) | Ball | 2.6 lbs (1.2 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.00mm | 73.5dB(A) | 110.4 W | cURus, TUV | 3400 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
|
5158HQ/MF40070V1-D05U-S99DC BLOWER 40X7MM TACH/PWM |
26 | - |
|
数据表 |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-7020V-132-330FAN AXIAL 70X20MM 12VDC WIRE |
86 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 29.0 CFM (0.812m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.132 lb (59.87 g) | Tubeaxial | Auto Restart | 20.00mm | 33.0dB(A) | 1.8 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-8020V-146-480FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | 0.188 lb (85.28 g) | Tubeaxial | Auto Restart | 20.00mm | 48.0dB(A) | 3.94 W | CE, cURus, TUV | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
YW05015012BL50X15MM 12V BALL, 3900RPM, 2 WIR |
35 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 12.0 CFM (0.336m³/min) | 0.079 in H2O (19.6 Pa) | Ball | - | Tubeaxial | - | 15.00mm | 24.5dB(A) | 1.02 W | CE, cURus, TUV | 3800 RPM | - | 2 Wire Leads | - |
|
CFM-7020V-229-300-20FAN AXIAL 70X20MM 24VDC WIRE |
37 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 24VDC | Square - 70mm L x 70mm H | 27.0 CFM (0.756m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.132 lb (59.87 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.0dB(A) | 1.54 W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
