直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-04020CBLW11FAN AXIAL 40X20MM 12VDC WIRE Qualtek |
547 | - |
|
数据表 |
FAD1-04020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | - | 20.00mm | 30.0dB(A) | 840 mW | CE, cURus, TUV | 6200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-09225CBHW11FAN AXIAL 92.5X25MM 12VDC WIRE Qualtek |
306 | - |
|
数据表 |
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 56.1 CFM (1.57m³/min) | 0.146 in H2O (36.4 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | - | 25.00mm | 37.5dB(A) | 2.88 W | CE, cURus, TUV | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025DHJW12-AFAN AXIAL 60X25MM 24VDC WIRE Qualtek |
289 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.1 CFM (0.731m³/min) | 0.298 in H2O (74.2 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 38.4dB(A) | 2.88 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-08025CBJW11-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
220 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 43.6 CFM (1.22m³/min) | 0.204 in H2O (51.0 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 40.5dB(A) | 3 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-08025CBHW11-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
579 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.16 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025DBJW12-AFAN AXIAL 60X25MM 24VDC WIRE Qualtek |
353 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.1 CFM (0.731m³/min) | 0.298 in H2O (74.2 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 38.4dB(A) | 2.88 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025CBHW12-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
594 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.16 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025DBHW11-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
124 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

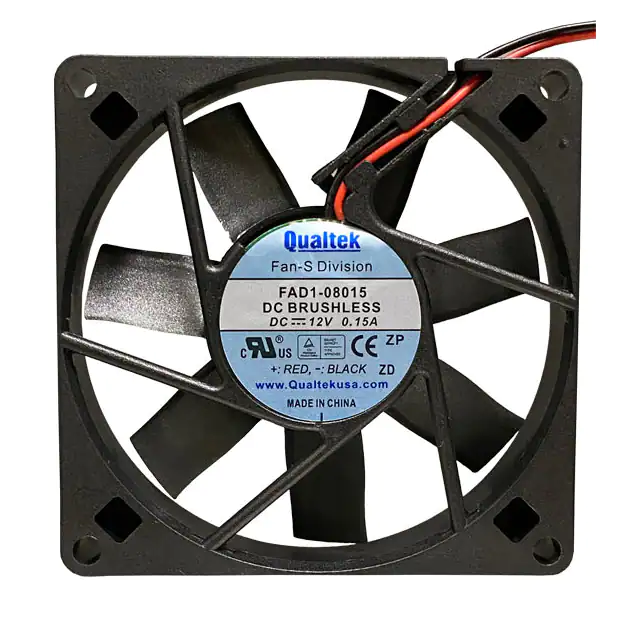

FAD1-08015CBMW12FAN AXIAL 80X15MM 12VDC WIRE Qualtek |
1,700 | - |
|
数据表 |
FAD1-08015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 15.00mm | 24.9dB(A) | 600 mW | CE, cURus, TUV | 2440 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12038DSJW32FAN AXIAL 120X38.5MM 24VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-12038 | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Sleeve | 0.656 lb (297.56 g) | Tubeaxial | - | 38.50mm | 48.0dB(A) | 9.12 W | CE, cURus, TUV | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
