直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

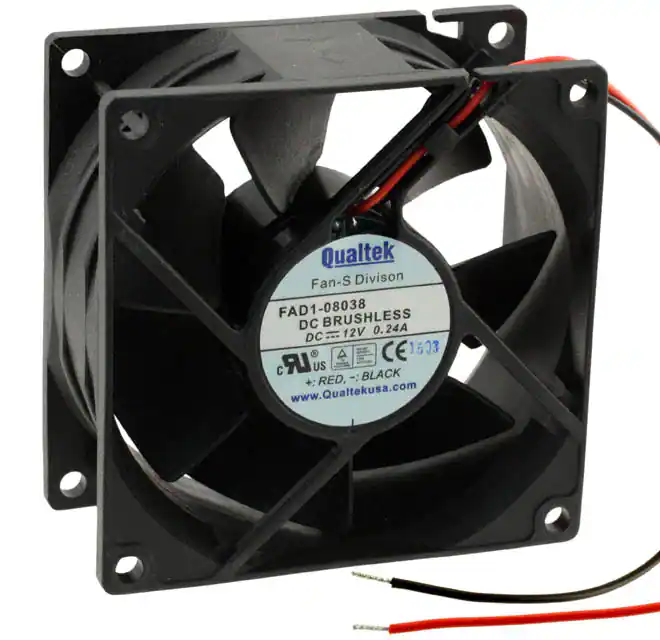

FAD1-08038CBLW12FAN AXIAL 80.5X38MM 12VDC WIRE Qualtek |
122 | - |
|
数据表 |
FAD1-08038 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 38.7 CFM (1.08m³/min) | 0.132 in H2O (32.9 Pa) | Ball | 0.264 lb (119.75 g) | Tubeaxial | - | 38.00mm | 32.3dB(A) | 1.2 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12038EBHW12FAN AXIAL 120X38.5MM 48VDC WIRE Qualtek |
488 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 105.5 CFM (2.95m³/min) | 0.265 in H2O (66.0 Pa) | Ball | 0.518 lb (234.96 g) | Tubeaxial | - | 38.50mm | 46.7dB(A) | 8.64 W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

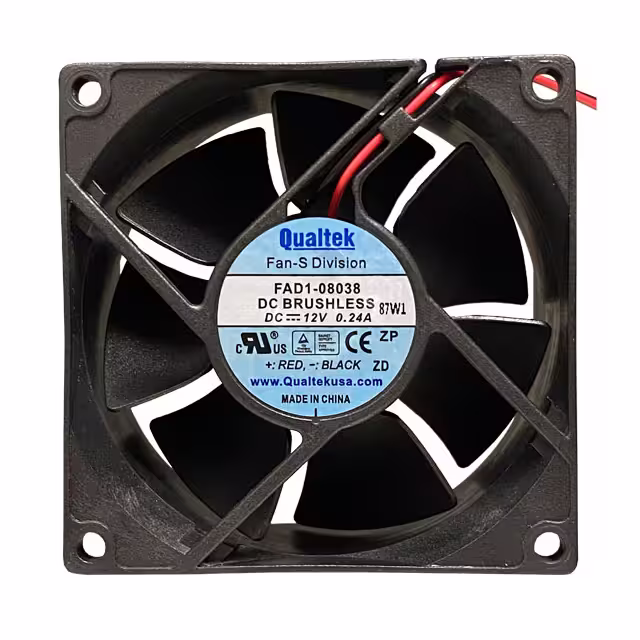

FAD1-08038CBHW12FAN AXIAL 80.5X38MM 12VDC WIRE Qualtek |
188 | - |
|
数据表 |
FAD1-08038 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 53.3 CFM (1.49m³/min) | 0.222 in H2O (55.3 Pa) | Ball | 0.264 lb (119.75 g) | Tubeaxial | - | 38.00mm | 39.9dB(A) | 3.12 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12038DHJW32FAN AXIAL 120X38.5MM 24VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Hydrodynamic | 0.656 lb (297.56 g) | Tubeaxial | - | 38.50mm | 48.0dB(A) | 9.12 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

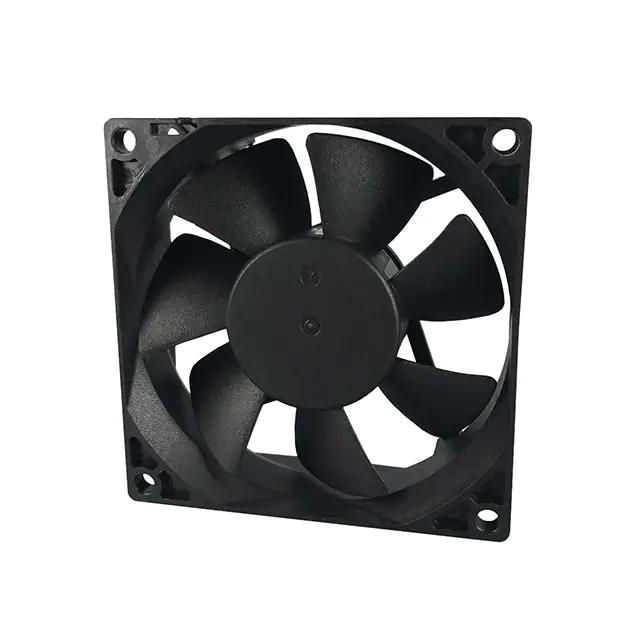

FAD1-08025DHHW11-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
94 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025DHMW11-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
52 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 30.5 CFM (0.854m³/min) | 0.112 in H2O (27.9 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.44 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

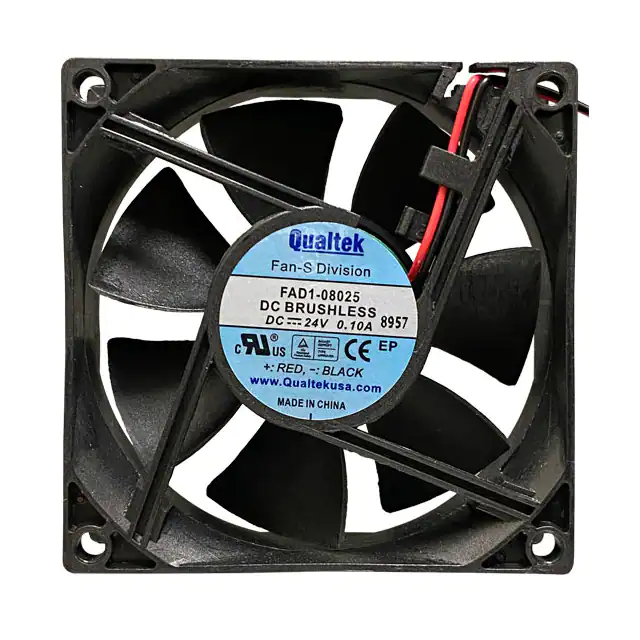

FAD1-08025DHLW11-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
88 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 24.4 CFM (0.683m³/min) | 0.068 in H2O (17.0 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 23.6dB(A) | 1.44 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025DBHW12-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
46 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025CBMW11-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
82 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 30.5 CFM (0.854m³/min) | 0.112 in H2O (27.9 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.56 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025CHHW12-AFAN AXIAL 60X25MM 12VDC WIRE Qualtek |
78 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 33.1dB(A) | 2.76 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
