直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-08025DBJW12-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
358 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 45.0 CFM (1.26m³/min) | 0.216 in H2O (53.9 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 42.0dB(A) | 3.84 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025CBKW12-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
263 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 56.8 CFM (1.59m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 48.1dB(A) | 5.4 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-04010CBLW11FAN AXIAL 40X10MM 12VDC WIRE Qualtek |
629 | - |
|
数据表 |
FAD1-04010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 0.037 lb (16.78 g) | Tubeaxial | - | 10.00mm | 21.0dB(A) | 720 mW | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025CBKW12-AFAN AXIAL 60X25MM 12VDC WIRE Qualtek |
156 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 31.5 CFM (0.882m³/min) | 0.445 in H2O (110.8 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 42.7dB(A) | 3.84 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12025CBMW12FAN AXIAL 120X25.5MM 12VDC WIRE Qualtek |
557 | - |
|
数据表 |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 81.0 CFM (2.27m³/min) | 0.113 in H2O (28.1 Pa) | Ball | 0.344 lb (156.04 g) | Tubeaxial | - | 25.50mm | 38.0dB(A) | 1.92 W | CE, cURus, TUV | 2050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025BBHW12-AFAN AXIAL 60X25MM BALL 5VDC WIRE Qualtek |
1,521 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 33.1dB(A) | 1.75 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025DBMW11-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
222 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 30.5 CFM (0.854m³/min) | 0.112 in H2O (27.9 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.44 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

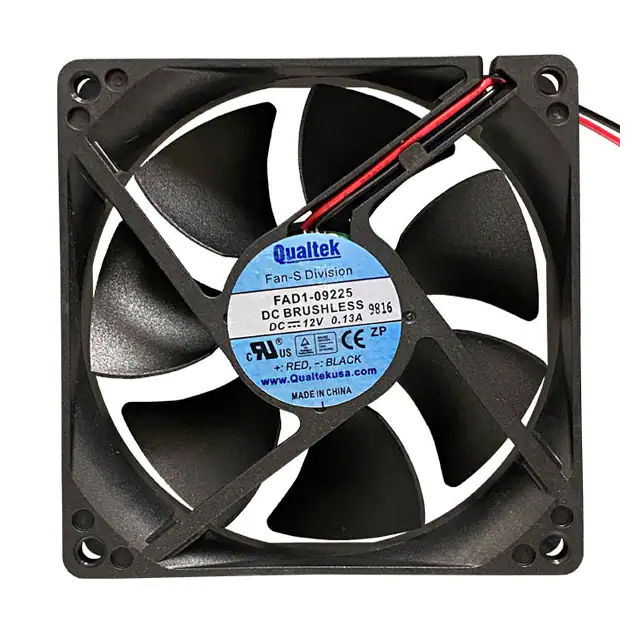

FAD1-09225CBMW11FAN AXIAL 92.5X25MM 12VDC WIRE Qualtek |
483 | - |
|
数据表 |
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 44.7 CFM (1.25m³/min) | 0.101 in H2O (25.1 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | - | 25.00mm | 31.2dB(A) | 1.8 W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-04020DBHW11FAN AXIAL 40X20MM 24VDC WIRE Qualtek |
1,195 | - |
|
数据表 |
FAD1-04020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | - | 20.00mm | 36.0dB(A) | 1.68 W | CE, cURus, TUV | 7800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-04020CBMW11FAN AXIAL 40X20MM 12VDC WIRE Qualtek |
939 | - |
|
数据表 |
FAD1-04020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | - | 20.00mm | 33.0dB(A) | 960 mW | CE, cURus, TUV | 6900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
