直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-04010BBLW11FAN AXIAL 40X10MM BALL 5VDC WIRE Qualtek |
3,473 | - |
|
数据表 |
FAD1-04010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.060 in H2O (14.9 Pa) | Ball | 0.037 lb (16.78 g) | Tubeaxial | - | 10.00mm | 21.0dB(A) | 350 mW | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-04010CBMW11FAN AXIAL 40X10MM 12VDC WIRE Qualtek |
2,834 | - |
|
数据表 |
FAD1-04010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.0 CFM (0.140m³/min) | 0.078 in H2O (19.4 Pa) | Ball | 0.037 lb (16.78 g) | Tubeaxial | - | 10.00mm | 22.0dB(A) | 720 mW | CE, cURus, TUV | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

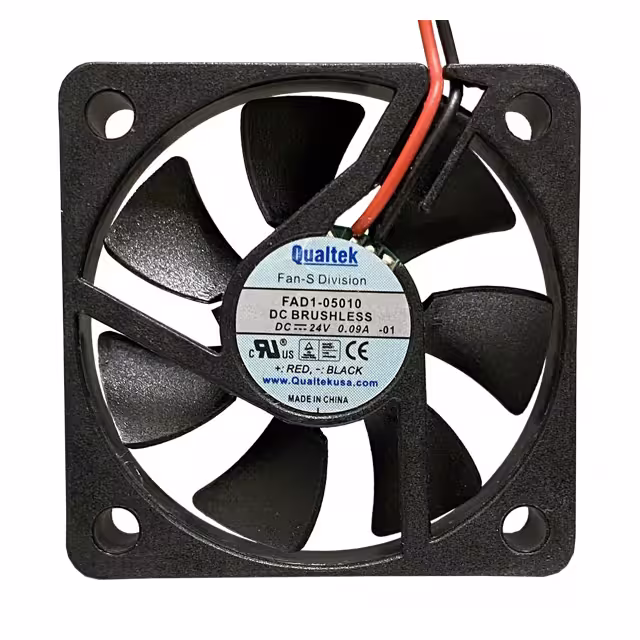

FAD1-05010CBLW11FAN AXIAL 50X10.5MM 12VDC WIRE Qualtek |
2,600 | - |
|
数据表 |
FAD1-05010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 8.0 CFM (0.224m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.04 lb (18.14 g) | Tubeaxial | - | 10.50mm | 20.0dB(A) | 960 mW | CE, cURus, TUV | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06020DBMW11FAN AXIAL 60X20MM 24VDC WIRE Qualtek |
562 | - |
|
数据表 |
FAD1-06020 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.3 CFM (0.400m³/min) | 0.112 in H2O (27.9 Pa) | Ball | 0.108 lb (48.99 g) | Tubeaxial | - | 20.00mm | 28.0dB(A) | 960 mW | CE, cURus, TUV | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-04020CBHW11FAN AXIAL 40X20MM 12VDC WIRE Qualtek |
945 | - |
|
数据表 |
FAD1-04020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | - | 20.00mm | 36.0dB(A) | 1.2 W | CE, cURus, TUV | 7800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025BBLW12-AFAN AXIAL 60X25MM BALL 5VDC WIRE Qualtek |
129 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 18.9dB(A) | 1 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12032EBHW12FAN AXIAL 120X32.3MM 48VDC WIRE Qualtek |
190 | - |
|
数据表 |
FAD1-12032 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 111.7 CFM (3.13m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 0.469 lb (212.73 g) | Tubeaxial | - | 32.30mm | 43.3dB(A) | 5.28 W | CE, cURus, TUV | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-04010BHLW11FAN AXIAL 40X10MM 5VDC WIRE Qualtek |
514 | - |
|
数据表 |
FAD1-04010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.060 in H2O (14.9 Pa) | Hydrodynamic | 0.037 lb (16.78 g) | Tubeaxial | - | 10.00mm | 21.0dB(A) | 350 mW | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-09225CBLW11FAN AXIAL 92.5X25MM 12VDC WIRE Qualtek |
1,020 | - |
|
数据表 |
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 40.7 CFM (1.14m³/min) | 0.081 in H2O (20.1 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | - | 25.00mm | 29.2dB(A) | 1.2 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-06020CHKW11FAN AXIAL 60X20MM 12VDC WIRE Qualtek |
547 | - |
|
数据表 |
FAD1-06020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.283 in H2O (70.5 Pa) | Hydrodynamic | 0.108 lb (48.99 g) | Tubeaxial | - | 20.00mm | 39.0dB(A) | 2.4 W | CE, cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
