直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDD1-17238DBLW42FAN AXIAL 172X38.5MM 24VDC WIRE Qualtek |
10 | - |
|
数据表 |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 245.0 CFM (6.86m³/min) | 0.732 in H2O (182.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 38.50mm | 56.0dB(A) | 18.7 W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

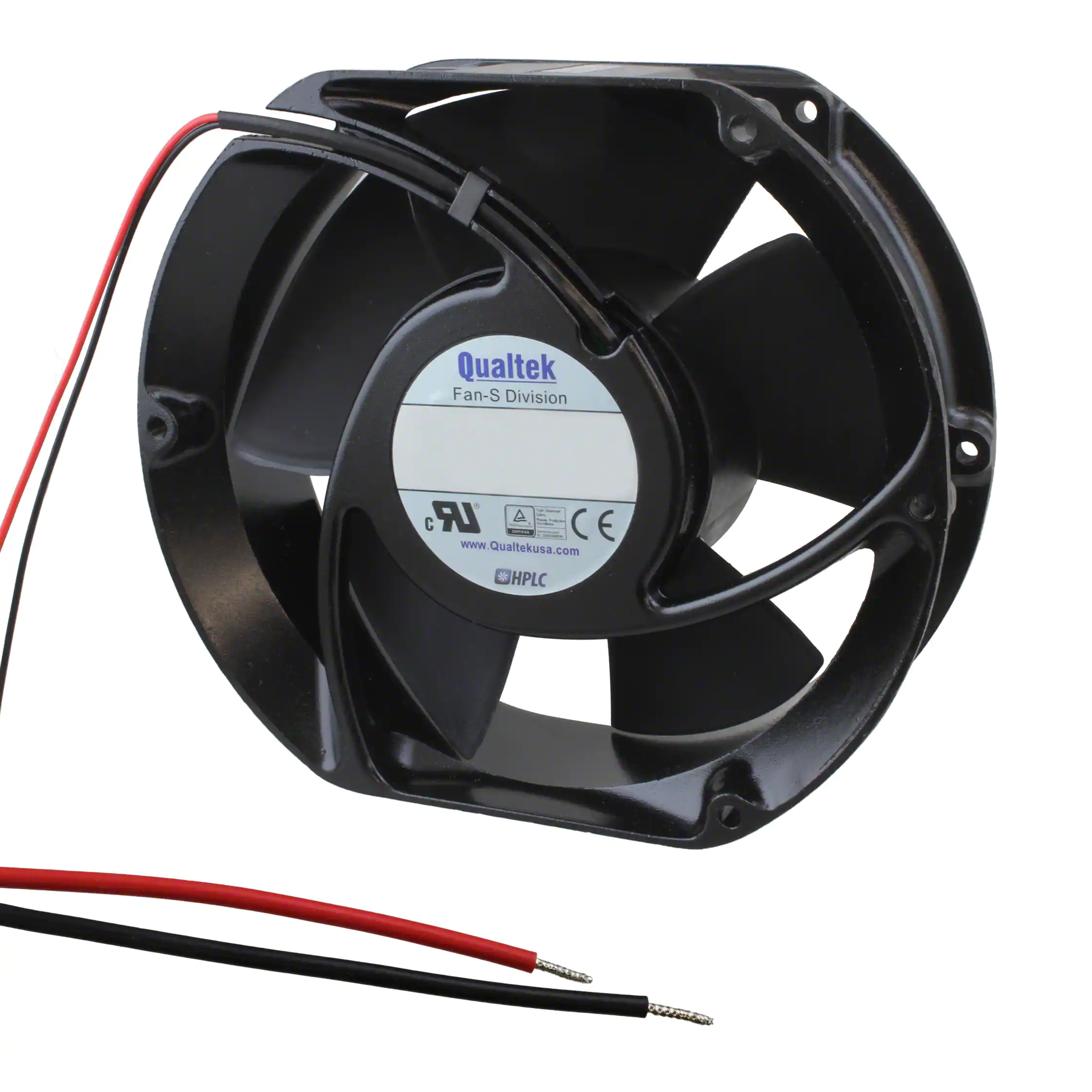

FDD1-17251EBHW32FAN AXIAL 172X51MM 48VDC WIRE Qualtek |
2 | - |
|
数据表 |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 64.0dB(A) | 37.9 W | CE, cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

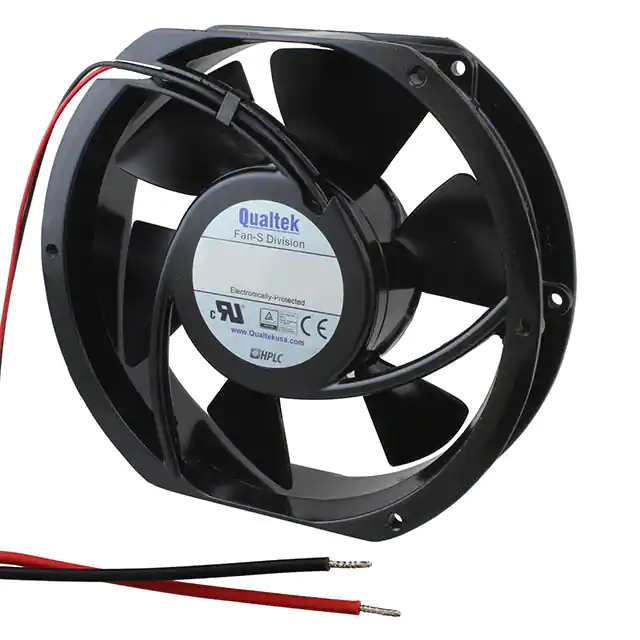

FDD1-17238DBHW42FAN AXIAL 172X38.5MM 24VDC WIRE Qualtek |
5 | - |
|
数据表 |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 310.0 CFM (8.68m³/min) | 1.122 in H2O (279.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 38.50mm | 64.0dB(A) | 33.1 W | CE, cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
FDD1-17251CBLW32FAN AXIAL 172X51MM 12VDC WIRE Qualtek |
20 | - |
|
数据表 |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 22.6 W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
FDD1-17251DBLW32FAN AXIAL 172X51MM 24VDC WIRE Qualtek |
11 | - |
|
数据表 |
HPLC, FDD1-17251 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 255.0 CFM (7.14m³/min) | 0.736 in H2O (183.3 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 56.0dB(A) | 21.4 W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FDD1-17251CBHW32FAN AXIAL 172X51MM 12VDC WIRE Qualtek |
10 | - |
|
数据表 |
HPLC, FDD1-17251 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 64.0dB(A) | 44.8 W | CE, cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FDD1-17238EBLW42FAN AXIAL 172X38.5MM 48VDC WIRE Qualtek |
6 | - |
|
数据表 |
HPLC, FDD1-17238 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 245.0 CFM (6.86m³/min) | 0.732 in H2O (182.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 38.50mm | 56.0dB(A) | 17.8 W | CE, cURus, TUV | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FDD1-17238CBHW42FAN AXIAL 172X38.5MM 12VDC WIRE Qualtek |
5 | - |
|
数据表 |
HPLC, FDD1-17238 | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 151mm H | 310.0 CFM (8.68m³/min) | 1.122 in H2O (279.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 38.50mm | 64.0dB(A) | 39.96 W | CE, cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025CBHW12-AFAN AXIAL 60X25MM 12VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.4 CFM (0.655m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 33.1dB(A) | 2.76 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025DHLW12-AFAN AXIAL 60X25MM 24VDC WIRE Qualtek |
0 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 18.9dB(A) | 720 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
