直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-06025DBLW12-AFAN AXIAL 60X25MM 24VDC WIRE Qualtek |
94 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 18.9dB(A) | 720 mW | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025DBMW12-AFAN AXIAL 60X25MM 24VDC WIRE Qualtek |
65 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.9 CFM (0.501m³/min) | 0.152 in H2O (37.9 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 28.1dB(A) | 2.16 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

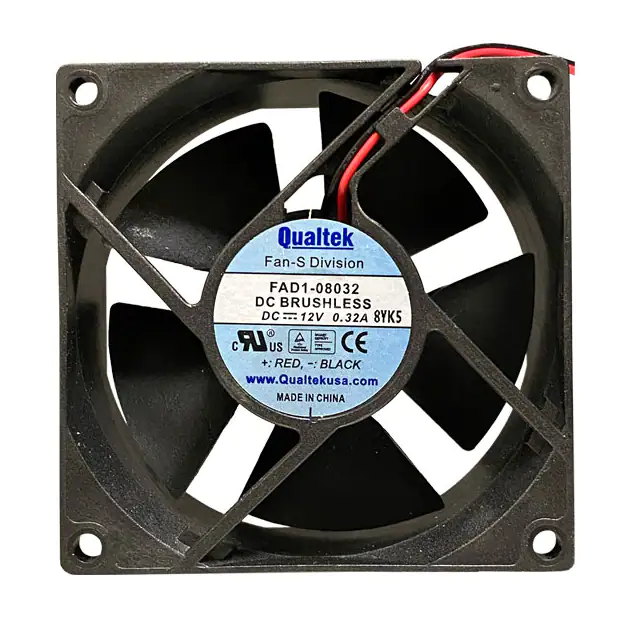

FAD1-08032CBMW12FAN AXIAL 80.5X32MM 12VDC WIRE Qualtek |
93 | - |
|
数据表 |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 44.8 CFM (1.25m³/min) | 0.241 in H2O (60.0 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | - | 32.00mm | 36.7dB(A) | 1.92 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12025CBHW12FAN AXIAL 120X25.5MM 12VDC WIRE Qualtek |
79 | - |
|
数据表 |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 87.9 CFM (2.46m³/min) | 0.134 in H2O (33.5 Pa) | Ball | 0.344 lb (156.04 g) | Tubeaxial | - | 25.50mm | 39.1dB(A) | 3.48 W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08032CBHW12FAN AXIAL 80.5X32MM 12VDC WIRE Qualtek |
52 | - |
|
数据表 |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 50.0 CFM (1.40m³/min) | 0.292 in H2O (72.7 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | - | 32.00mm | 42.4dB(A) | 2.28 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

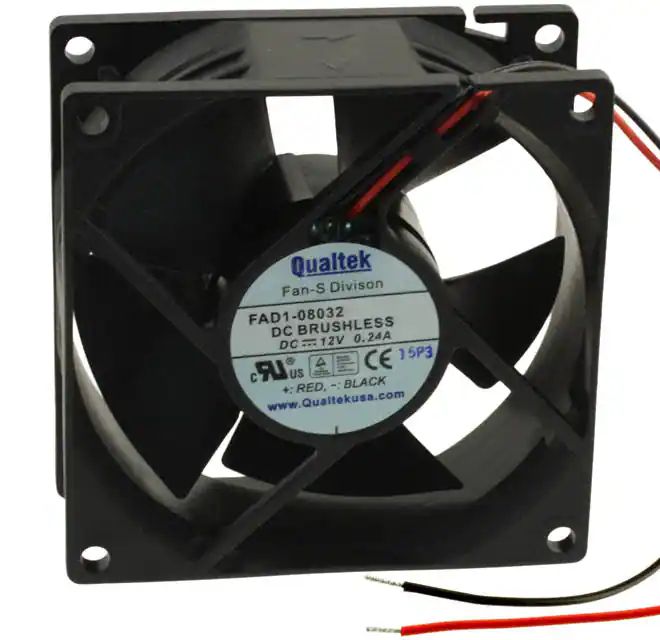

FAD1-08032CBLW12FAN AXIAL 80.5X32MM 12VDC WIRE Qualtek |
45 | - |
|
数据表 |
FAD1-08032 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 39.6 CFM (1.11m³/min) | 0.187 in H2O (46.6 Pa) | Ball | 0.238 lb (107.95 g) | Tubeaxial | - | 32.00mm | 35.5dB(A) | 1.32 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-08025CHHW11-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
97 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 35.8dB(A) | 2.16 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025CHJW11-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
42 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 43.6 CFM (1.22m³/min) | 0.204 in H2O (51.0 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 40.5dB(A) | 3 W | CE, cURus, TUV | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-12038CBLW12FAN AXIAL 120X38.5MM 12VDC WIRE Qualtek |
45 | - |
|
数据表 |
FAD1-12038 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 71.6 CFM (2.00m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.518 lb (234.96 g) | Tubeaxial | - | 38.50mm | 36.2dB(A) | 2.64 W | CE, cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-06025CHMW12-AFAN AXIAL 60X25MM 12VDC WIRE Qualtek |
87 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 17.9 CFM (0.501m³/min) | 0.152 in H2O (37.9 Pa) | Hydrodynamic | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 28.1dB(A) | 1.56 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
