直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WP0824S401FAN AXIAL 80X25MM 24VDC WIRE |
12 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 2.4 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD1238-48HHB10AZX48VDC 120X120X38MM REVERSIBLE FL |
7 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 146.0 CFM (4.09m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 8.2 W | CE, cURus, TUV, UR | 3590 RPM | 5 ~ 149°F (-15 ~ 65°C) | 4 Wire Leads | - |
|
|
9BMB24H201FAN BLOWER 97.1X33MM 24VDC WIRE |
30 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 57.0dB(A) | 13.2 W | cURus, TUV | 4850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
12038VA-24R-EL-E0FAN AXIAL 120X38MM 24VDC WIRE |
40 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 66.0dB | 35.5 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
9G1212M102FAN AXIAL 119X38MM 12VDC WIRE |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | - | 38.00mm | 32.0dB(A) | 2.52 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238BF-295-628DC AXIAL FAN, 92 MM SQUARE, 38 M |
48 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 62.8dB(A) | 20.64 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9RA1212H1002120X38MM 12VDC |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
9RA1224H10021120X38MM 24VDC RBLS |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
9G0624P4H0011FAN AXIAL 60X25MM 24VDC WIRE |
77 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 42.7 CFM (1.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 49.0dB(A) | 6 W | cURus, TUV | 9500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0924H4D0192X25MM 24V,HIGH PERF., LOW POWE |
54 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9RA1212H1D001120X38MM 12VDC LCKRTRSNS |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9RA1224H1D001120X38MM 24VDC LCKRTRSNS |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
OD1225-12HBVXE10ADC FAN - 12V 120 X 120 X 25MM - |
89 | - |
|
数据表 |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 57.3dB(A) | 16.8 W | CE, cURus, UR | 4000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
OD1225-24HBVXE10ADC FAN - 24V 120 X 120 X 25MM - |
62 | - |
|
数据表 |
OD1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 57.3dB(A) | 20.4 W | CE, cURus, UR | 4000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
9WP0848S4011FAN AXIAL 80X25MM 48VDC WIRE |
27 | - |
|
数据表 |
San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 2.88 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9BMB24P2H01FAN BLOWER 97.1X33MM 24VDC WIRE |
19 | - |
|
数据表 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 39.2 CFM (1.10m³/min) | 1.968 in H2O (490.0 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.00mm | 57.0dB(A) | 13.2 W | cURus, TUV | 4850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9BMB12P2S01FAN BLOWER 97.1X33MM 12VDC WIRE |
16 | - |
|
数据表 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 43.1 CFM (1.21m³/min) | 2.450 in H2O (610.0 Pa) | Ball | 0.419 lb (190.06 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.00mm | 59.0dB(A) | 16.8 W | cURus, TUV | 5250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1248H1021FAN AXIAL 120X38MM 48VDC WIRE |
34 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238BF-2110-663-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
45 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 151.0 CFM (4.23m³/min) | 2.900 in H2O (722.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.3dB(A) | 33.36 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

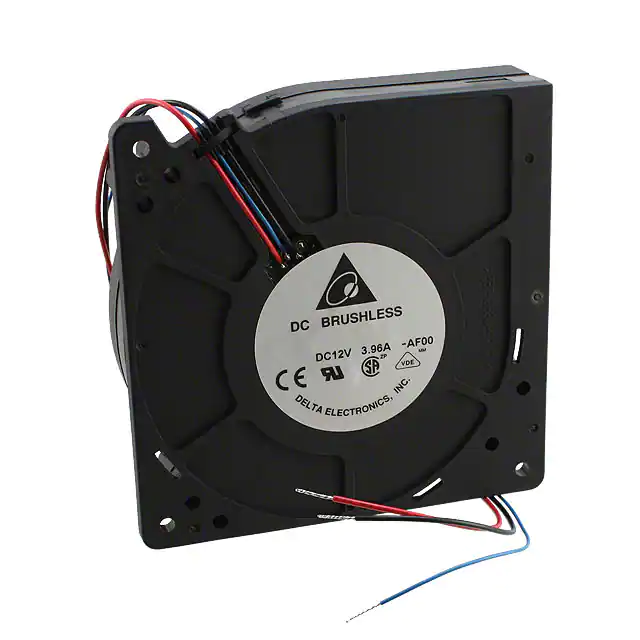

BFB1212GH-AF00FAN BLOWER 120X32MM 12VDC WIRE |
84 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | 0.661 lb (299.82 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 65.0dB(A) | 39.6 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
