直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9G1224E1D01FAN AXIAL 119X38MM 24VDC WIRE |
17 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9RA1224G1002120X38MM 24VDC |
32 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
9WG1212E102-EFAN AXIAL 120X38MM 12VDC WIRE |
42 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 46.0dB(A) | 7.32 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9RA0924H1001FAN AXIAL 92X38MM 24VDC TACH |
56 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 83.4 CFM (2.36m³/min) | 0.409 in H2O (102.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 40.0dB(A) | 6.2 W | cURus, TUV | 4650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0924G1001FAN AXIAL 92X38MM 24VDC TACH |
56 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 11.5 W | cURus, TUV | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0912H1001FAN AXIAL 92X38MM 12VDC TACH |
55 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 83.4 CFM (2.36m³/min) | 0.409 in H2O (102.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 40.0dB(A) | 6.2 W | cURus, TUV | 4650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1224E1D001120X38MM 24VDC LCKRTRSNS |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9RA1212E1D001120X38MM 12VDC LCKRTRSNS |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.402 in H2O (100.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | 5.6 W | cURus, TUV | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1212H10021120X38MM 12VDC RBLS |
40 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
9WF0624H6D01FAN AXIAL 60X20MM 24VDC WIRE |
44 | - |
|
数据表 |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 24.3 CFM (0.680m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 0.177 lb (80.29 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 42.0dB(A) | 3.6 W | CSA, TUV, UL | 6600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|

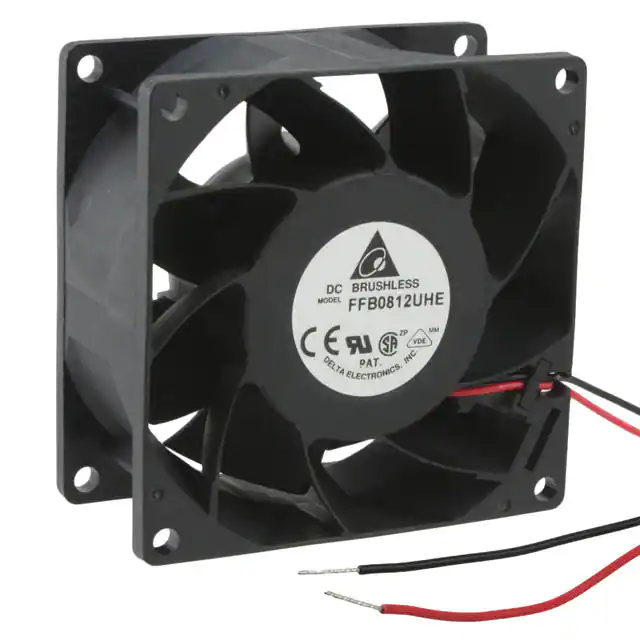

FFB0812UHEFAN AXIAL 80X38MM 12VDC WIRE |
53 | - |
|
数据表 |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 102.0 CFM (2.86m³/min) | 1.233 in H2O (307.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 62.2dB(A) | 18 W | CE, CSA, UL, VDE | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

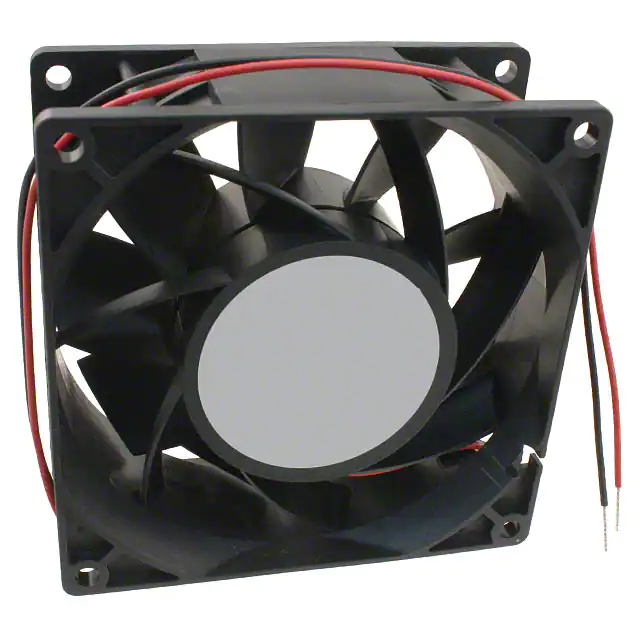

PFB0912DHEFAN AXIAL 92X38MM 12VDC WIRE |
96 | - |
|
数据表 |
PFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 66.5dB(A) | 37.2 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9GV0648P1H18FAN 48VDC 60X38MM TACH/PWM CONN |
90 | - |
|
数据表 |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | - | - | 14500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
9G1224H1H01120X38MM 24V,HIGH PERF. DC LOW S |
18 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | - | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PFB0824DHEP0AXIAL 80X38 24VPWM |
80 | - |
|
数据表 |
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 30.24 W | CE, cURus, VDE | 9000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0924P1G001FAN AXIAL 92X38MM 24VDC TACH PWM |
22 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 11.5 W | cURus, TUV | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0912P1G001FAN AXIAL 92X38MM 12VDC TACH PWM |
18 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 11.5 W | cURus, TUV | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9WF0924H401FAN AXIAL 92X25MM 24VDC WIRE |
22 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.264 lb (119.75 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 42.5dB(A) | 3.12 W | CSA, TUV, UL | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
|
9GV0824G1D0180X38MM 24V,GUIDE VANE DC LCKRTR |
9 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | 65.0dB(A) | - | - | 10200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
FFB0848SHE-TP36FAN AXIAL 80X38MM 48VDC WIRE |
81 | - |
|
数据表 |
FFB | Box | Active | 48VDC | Square - 80mm L x 80mm H | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 48.5dB(A) | 7.68 W | CE, CSA, UL, VDE | 4900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
