直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12038VA-12R-EA-E0FAN AXIAL 120X38MM 12VDC WIRE |
39 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 66.0dB | 36 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
12038VA-12P-EAE-0FAN AXIAL 120X38MM 12VDC WIRE |
37 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 59.5dB | 18 W | - | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238BF68-265-535-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
53 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 53.5dB(A) | 10.8 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD1238-12HHB10AZX12VDC 120X120X38MM REVERSIBLE FL |
39 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 146.0 CFM (4.09m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 8.2 W | CE, cURus, TUV, UR | 3590 RPM | 5 ~ 149°F (-15 ~ 65°C) | 4 Wire Leads | - |
|
|
9RA0948H1001FAN AXIAL 92X38MM 48VDC TACH |
28 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 83.4 CFM (2.36m³/min) | 0.409 in H2O (102.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 40.0dB(A) | 6.7 W | cURus, TUV | 4650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0948G1001FAN AXIAL 92X38MM 48VDC TACH |
26 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 12 W | cURus, TUV | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9S1212P4F141FAN 12VDC 120X25MM TACH/PWM CONN |
29 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | - | - | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
9RA0948P1G001FAN AXIAL 92X38MM 48VDC TACH PWM |
28 | - |
|
数据表 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 105.9 CFM (2.97m³/min) | 0.634 in H2O (157.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 12 W | cURus, TUV | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA1224H10011120X38MM 24VDC RBLS TACH |
37 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 37.0dB(A) | 3.1 W | cURus, TUV | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1224H1D0011120X38MM 24VDC RBLS LCKRTRSNS |
31 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 37.0dB(A) | 3.1 W | cURus, TUV | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

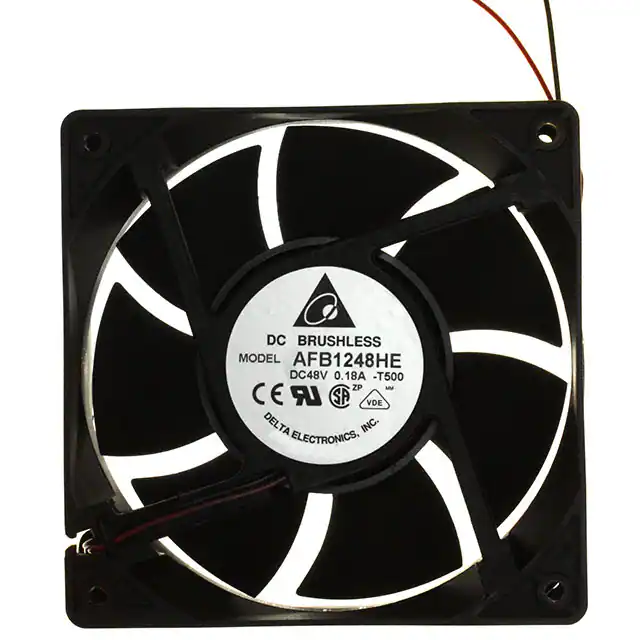

AFB1248HE-T500FAN AXIAL 120X38MM 48VDC WIRE |
23 | - |
|
数据表 |
AFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 41.0dB(A) | 5.76 W | CE, CSA, UL, VDE | 2600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9CRV0412P5H20140X56MM 12VDC COUNTER ROTATING T |
84 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PFB0924DHE-F00FAN AXIAL 92X38MM 24VDC WIRE |
84 | - |
|
数据表 |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 66.5dB(A) | 34.8 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
CFM-9238BF68-165-535DC AXIAL FAN, 92 MM SQUARE, 38 M |
97 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 53.5dB(A) | 8.4 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0624M400260X25MM 24VDC IP68 HIGH PERF. |
80 | - |
|
数据表 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WF0924S2D01FAN AXIAL 92X32MM 24VDC WIRE |
29 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 98.9 CFM (2.78m³/min) | 1.020 in H2O (255.0 Pa) | Ball | 0.408 lb (185.07 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 58.0dB(A) | 12 W | CSA, TUV, UL | 7300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
|
9RA1224H1002120X38MM 24VDC |
42 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
PFB0924GHEP6AXIAL 92X38 24V PWM IP68 |
83 | - |
|
数据表 |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 124.2 CFM (3.48m³/min) | 1.004 in H2O (250.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 60.5dB(A) | 15.6 W | CE, cURus, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA1212H1D0011120X38MM 12VDC RBLS LCKRTRSNS |
41 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9RA1212H1001120X38MM 12VDC TACH |
38 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.281 in H2O (70.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 37.0dB(A) | 3 W | cURus, TUV | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
