直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8025BG68-170-524-22DC AXIAL FAN, 80 MM SQUARE, 25 M |
87 | - |
|
数据表 |
CFM-80BG68 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.6 CFM (2.06m³/min) | 0.830 in H2O (206.7 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 52.4dB(A) | 8.64 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9GA0612P1J031FAN AXIAL 60X38MM 12VDC WIRE |
14 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 62.0 CFM (1.74m³/min) | 3.290 in H2O (820.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 63.0dB(A) | 18 W | CSA, TUV, UL | 17500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
CFM-9225BG68-257-533-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
92 | - |
|
数据表 |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 101.2 CFM (2.83m³/min) | 0.720 in H2O (179.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 53.3dB(A) | 11.28 W | CE, cURus, TUV | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFM-9225BG68-157-533-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
80 | - |
|
数据表 |
CFM-92BG68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 101.2 CFM (2.83m³/min) | 0.720 in H2O (179.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 53.3dB(A) | 11.16 W | CE, cURus, TUV | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WF0824S4D01FAN AXIAL 80X25MM 24VDC WIRE |
28 | - |
|
数据表 |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 38.0dB(A) | 3.84 W | CSA, TUV, UL | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
|
PFB0824GHEP0AXIAL 80X38 24VPWM |
88 | - |
|
数据表 |
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 86.4 CFM (2.45m³/min) | 0.898 in H2O (223.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 55.5dB(A) | 10.8 W | CE, cURus, VDE | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-9238BF-265-535-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
50 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 53.5dB(A) | 4.2 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-165-535-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
25 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 53.5dB(A) | 8.4 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GL1224H102FAN AXIAL 119X38MM 24VDC WIRE |
44 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | - | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9WP0624G4D01FAN AXIAL 60X25MM 24VDC WIRE |
75 | - |
|
数据表 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 39.0dB(A) | 3.12 W | CSA, TUV, UL | 5600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFM-9238BF-280-585-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
50 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | 13.68 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9GL1212H1D01FAN AXIAL 119X38MM 12VDC WIRE |
25 | - |
|
数据表 |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 39.0dB(A) | 4.56 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-195-628DC AXIAL FAN, 92 MM SQUARE, 38 M |
47 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.310 in H2O (575.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 62.8dB(A) | 21.6 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

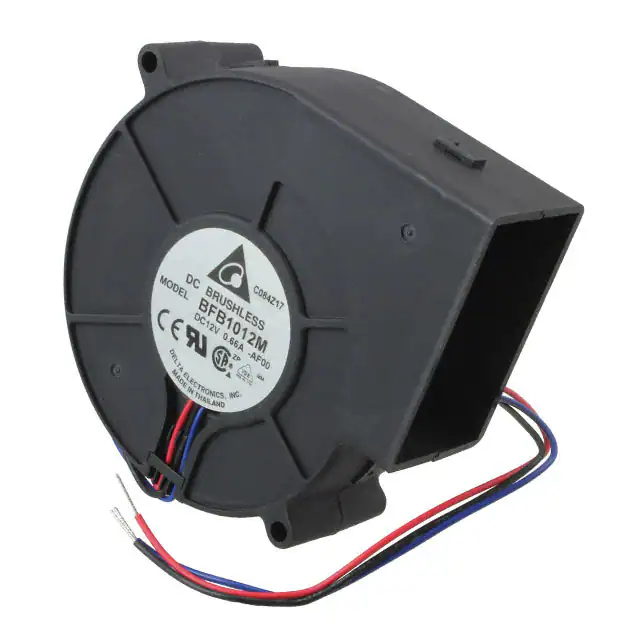

BFB1012M-AF00FAN BLOWER 97.2X33MM 12VDC WIRE |
49 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 22.6 CFM (0.633m³/min) | 0.893 in H2O (222.4 Pa) | Ball | 0.366 lb (166.01 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 33.00mm | 52.5dB(A) | 6.6 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
BFB1012HH-AFAN BLOWER 97.2X33MM 12VDC WIRE |
53 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 34.3 CFM (0.960m³/min) | 1.564 in H2O (389.6 Pa) | Ball | 0.397 lb (180.08 g) | Blower | Locked Rotor Protection | 33.00mm | 57.0dB(A) | 15 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9GL1224G1D01FAN AXIAL 119X38MM 24VDC WIRE |
41 | - |
|
数据表 |
San Ace 120L | Box | Active | 24VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
OD1225-48HBVXEDC FAN - 48V 120 X 120 X 25MM - |
84 | - |
|
数据表 |
OD1225 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 158.7 CFM (4.49m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 57.3dB(A) | 14.4 W | CE, cURus, UR | 4000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
BFB1012VH-AF00FAN BLOWER 97.2X33MM 12VDC WIRE |
56 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 38.0 CFM (1.06m³/min) | 1.952 in H2O (486.2 Pa) | Ball | 0.397 lb (180.08 g) | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.00mm | 60.0dB(A) | 18 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
9GL1248H101FAN AXIAL 119X38MM 48VDC WIRE |
39 | - |
|
数据表 |
San Ace 120L | Box | Active | 48VDC | Square - 119mm L x 119mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9WP0824S4D01FAN AXIAL 80X25MM 24VDC WIRE |
36 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 34.0dB(A) | 2.4 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
