直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0924DHEP0AXIAL 92X38 24V PWM |
50 | - |
|
数据表 |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.5dB(A) | 34.8 W | CE, cURus, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA1224E1001120X38MM 24VDC TACH |
37 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.402 in H2O (100.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | 5.8 W | cURus, TUV | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1224G1D001120X38MM 24VDC LCKRTRSNS |
37 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9RA1212G10011120X38MM 12VDC RBLS TACH |
37 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 141.0 CFM (3.95m³/min) | 0.542 in H2O (135.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 8.4 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1224G10011120X38MM 24VDC RBLS TACH |
34 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 141.0 CFM (3.95m³/min) | 0.542 in H2O (135.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 8.4 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1212E1D0011120X38MM 12VDC RBLS LCKRTRSNS |
28 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120.1mm L x 120.1mm H | 116.5 CFM (3.26m³/min) | 0.386 in H2O (96.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Sensor | 120.0mm | 45.0dB(A) | 4.92 W | - | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

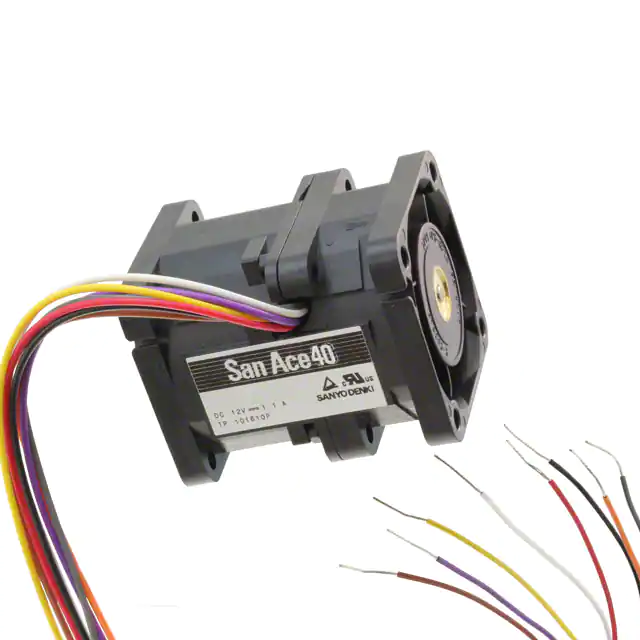

9CRA0412P5K03FAN AXIAL DUAL 40X56MM 12VDC |
93 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 33.5 CFM (0.938m³/min) | 2.610 in H2O (650.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 56.00mm | 65.0dB(A) | 21.6 W | CSA, TUV, UL | 17000 Front, 13000 Rear | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads per Fan | - |
|
|
CFM-9238BF68-180-585DC AXIAL FAN, 92 MM SQUARE, 38 M |
89 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 58.5dB(A) | 14.4 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFM-9238BF68-295-628DC AXIAL FAN, 92 MM SQUARE, 38 M |
86 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 62.8dB(A) | 22.8 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9RA1248H1D0011120X38MM 48VDC RBLS LCKRTRSNS |
21 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9RA1248H1D001120X38MM 48VDC LCKRTRSNS |
21 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
CFM-9238BF68-195-628-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
90 | - |
|
数据表 |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 62.8dB(A) | 23.4 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

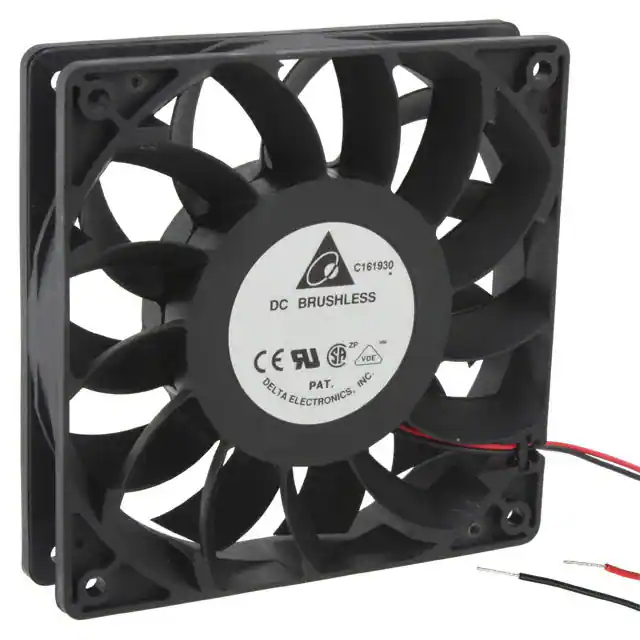

FFB1224VHEFAN AXIAL 120X38MM 24VDC WIRE |
65 | - |
|
数据表 |
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 53.0dB(A) | 13.44 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9RA0912J1001FAN AXIAL 92X38MM 12VDC TACH |
27 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 117.0 CFM (3.28m³/min) | 0.771 in H2O (192.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 14.9 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1248E10021120X38MM 48VDC RBLS |
21 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|

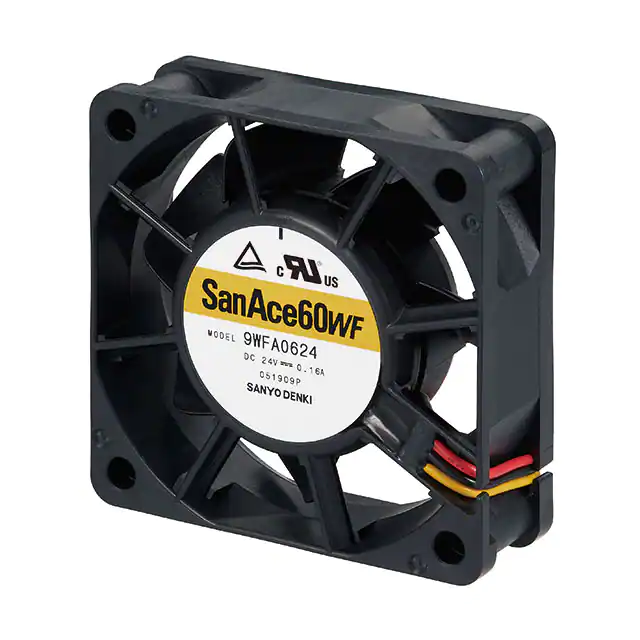

9WFA0624G6001FAN AXIAL 60X20MM 24VDC WIRE |
86 | - |
|
数据表 |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.9 CFM (0.781m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 48.0dB(A) | 3.8 W | cURus, TUV | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
THD0848MEFAN AXIAL 80X38MM 48VDC WIRE |
77 | - |
|
数据表 |
THD - Bionic Blade | Box | Active | 48VDC | Square - 80mm L x 80mm H | 128.0 CFM (3.58m³/min) | 1.476 in H2O (367.6 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 26.4 W | CE, cURus, TUV | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0812P7G010FAN 12VDC 80X15MM TACH/PWM CONN |
48 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | 41.0dB(A) | - | - | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
9RA0912P1J001FAN AXIAL 92X38MM 12VDC TACH PWM |
19 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 117.0 CFM (3.28m³/min) | 0.771 in H2O (192.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 14.9 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0924P1J001FAN AXIAL 92X38MM 24VDC TACH PWM |
19 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 117.0 CFM (3.28m³/min) | 0.771 in H2O (192.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 14.9 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
