直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB03812MN-F00FAN AXIAL 38X28MM 12VDC WIRE |
49 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 12.4 CFM (0.347m³/min) | 0.566 in H2O (141.0 Pa) | Ball | 0.102 lb (46.27 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 45.0dB(A) | 3 W | CE, CSA, UL, VDE | 10000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
OD8038-48HBVXEThermal Products |
79 | - |
|
数据表 |
OD8038 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 105.0 CFM (2.94m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 62.3dB(A) | 27.8 W | CE, cURus, TUV, UR | 7400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD8038-48MBVXEThermal Products |
39 | - |
|
数据表 |
OD8038 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 1.000 in H2O (249.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 59.1dB(A) | 24.5 W | CE, cURus, TUV, UR | 6525 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
11938KA-12J-EA-00FAN AXIAL 119X38.4MM 12VDC WIRE |
36 | - |
|
数据表 |
11938KA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.40mm | 37.0dB | 3.24 W | - | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9G0912A202FAN AXIAL 92X32MM 12VDC WIRE |
44 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 88.2 CFM (2.47m³/min) | 0.462 in H2O (115.2 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 32.00mm | 44.0dB(A) | 6.96 W | CSA, TUV, UL | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9225BG68-240-438-20DC AXIAL FAN, 92 MM SQUARE, 25 M |
86 | - |
|
数据表 |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 70.2 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 43.8dB(A) | 4.8 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9G0812G1011FAN AXIAL 80X38MM 12VDC WIRE |
52 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 90.0 CFM (2.52m³/min) | 0.847 in H2O (211.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 13.2 W | CSA, TUV, UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0424P3G0011FAN AXIAL 40X28MM 24VDC WIRE |
69 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 21.5 CFM (0.602m³/min) | 1.810 in H2O (450.8 Pa) | Ball | 0.117 lb (53.07 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 53.0dB(A) | 5.28 W | CSA, TUV, UL | 16500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GA0624H6002FAN AXIAL 60X20MM 24VDC WIRE |
41 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.156 lb (70.76 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 30.0dB(A) | 960 mW | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB1248HHE-F00FAN AXIAL 120X38MM 48VDC WIRE |
72 | - |
|
数据表 |
AFB | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | 0.565 lb (256.28 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 7.2 W | CE, CSA, UL, VDE | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
9GA0812H7002FAN AXIAL 80X15MM 12VDC WIRE |
49 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 29.0dB(A) | 1.08 W | cURus, TUV | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
11938KA-24J-EL-00FAN AXIAL 119X38.4MM 24VDC WIRE |
26 | - |
|
数据表 |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.40mm | 37.0dB | 3.6 W | - | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
11938KA-12N-EL-00FAN AXIAL 119X38.4MM 12VDC WIRE |
20 | - |
|
数据表 |
11938KA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 129.9 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.40mm | 50.0dB | 12 W | - | 3600 RPM | 14 ~ 104°F (-10 ~ 40°C) | 3 Wire Leads | - |
|
|
9GA0624G600160X20MM 24V,HIGH PERF.,LOW POWER |
88 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|

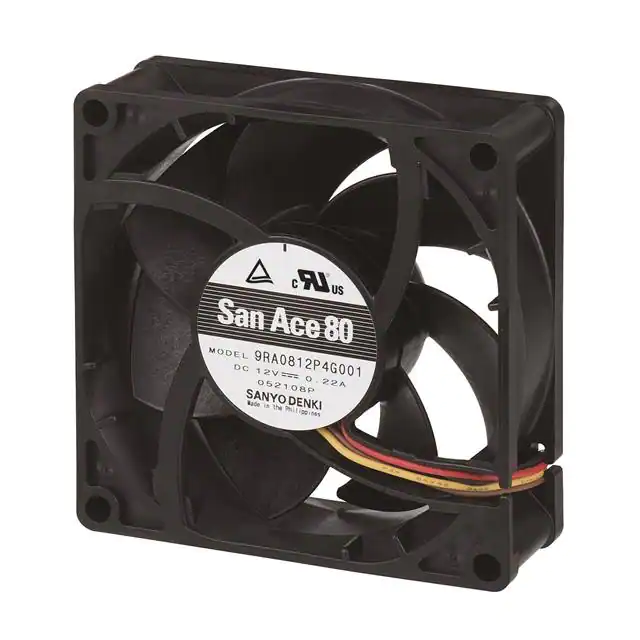

9RA0824M4002FAN |
76 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
9RA0824H40021FAN |
73 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
09238RA-24N-ELD-0FAN AXIAL 92X38MM 24VDC WIRE |
67 | - |
|
数据表 |
09238RA | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 141.2 CFM (3.95m³/min) | 1.020 in H2O (255.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 59.0dB | 17.04 W | - | 6200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0812M700180X15MM, DC 12V, HIGH PERF., LOW |
12 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9G0824H1D01FAN AXIAL 80X38MM 24VDC WIRE |
54 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 49.0dB(A) | 10.1 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0824H101FAN AXIAL 80X38MM 24VDC WIRE |
37 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 80.0 CFM (2.24m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 10.1 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
