直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DV6248TDADC TUBEAXIAL FAN |
0 | - |
|
数据表 |
DV6248 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 412.3 CFM (11.54m³/min) | - | Ball | - | Tubeaxial | - | 50.80mm | 69.0dB(A) | 89 W | CSA, CE, VDE, UL | 5500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
6448/12HAU-211DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G190-AB25-02FAN IMP MTRZD 190X68.5MM 48VDC |
0 | - |
|
数据表 |
R1G190 | Bulk | Active | 48VDC | Round - 190mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.50mm | 68.0dB(A) | 51 W | CCC, EAC | 2950 RPM | -13 ~ 104°F (-25 ~ 40°C) | 4 Wire Leads with Splice Terminals | IP22 |
|
|
R1G190-AB27-02FAN IMP MTRZD 190X72MM 24VDC |
0 | - |
|
数据表 |
R1G190 | Bulk | Active | 24VDC | Round - 190mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.00mm | 68.0dB(A) | 51 W | EAC | 2950 RPM | -13 ~ 104°F (-25 ~ 40°C) | 4 Wire Leads with Splice Terminals | IP20 |
|
|
8315100100DC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 64.5mm L x 64.1mm H | 18.1 CFM (0.507m³/min) | - | Ball | - | Blower, Centrifugal | - | 65.50mm | 58.0dB(A) | 38 W | CSA, CE, VDE, UL | 38000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
8315100111DC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Rectangular/Rounded - 66mm L x 64mm H | 15.9 CFM (0.445m³/min) | - | Ball | - | Blower, Centrifugal | - | 65.00mm | 58.0dB(A) | 30 W | CSA, CE, VDE, UL | 33000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
8315100115DC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 64.6mm L x 64.5mm H | 17.7 CFM (0.496m³/min) | 18.066 in H2O (4500.0 Pa) | Ball | - | Blower, Centrifugal | Auto Restart, PWM Control, Speed Sensor (Tach) | 65.50mm | 58.0dB(A) | 36 W | CCC, CSA, CE, EAC, VDE, UL | 36500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
RVE45-3/52/2PDC CENTRIFUGAL FAN |
0 | - |
|
数据表 |
RVE45 | Bulk | Active | 12VDC | Rectangular/Rounded - 64.5mm L x 64.1mm H | 15.9 CFM (0.445m³/min) | - | Ball | - | Blower, Centrifugal | - | 65.50mm | 58.0dB(A) | 30 W | CSA, CE, VDE, UL | 33000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
55668.06030DC CROSSFLOW BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RER190-45/18/2TDMPS-FORCE EC RADIAL BLOWER |
0 | - |
|
数据表 |
RER190 | Bulk | Active | 48VDC | Round - 190mm Dia | 517.6 CFM (14.49m³/min) | - | Ball | - | Blower, Centrifugal | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 114 W | - | 3900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
RER190-45/14/2TDMPS-FORCE EC RADIAL BLOWER |
0 | - |
|
数据表 |
RER190 | Bulk | Active | 24VDC | Round - 190mm Dia | 517.6 CFM (14.49m³/min) | - | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 114 W | - | 3900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
DV6224TDFAN AXIAL 171.5X50.8MM 24VDC |
0 | - |
|
数据表 |
DV6200TD | Bulk | Active | 24VDC | Round - 171.5mm Dia | 412.0 CFM (11.54m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 69.0dB(A) | 91 W | CSA, UL, VDE | 5500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
55668.34010FAN BLOWER CF 324X96MM 24VDC |
0 | - |
|
数据表 |
QLZ06DC | Bulk | Active | 24VDC | Rectangular - 324mm L x 83mm H | 129.0 CFM (3.61m³/min) | 0.321 in H2O (80.0 Pa) | - | - | Blower, Cross Flow | - | 96.00mm | - | 17 W | - | 1800 RPM | 32 ~ 140°F (0 ~ 60°C) | Terminal Block | IP20 |
|
G1G097-AA07-01DC CENTRIFUGAL BLOWER |
0 | - |
|
数据表 |
G1G097 | Bulk | Active | 48VDC | Rectangular/Rounded - 143mm L x 137mm H | - | - | Ball | - | Blower, Centrifugal | PWM Control, Speed Sensor (Tach) | 40.00mm | - | 16 W | CCC | 2650 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP22 |
|
G2G085-AB04-10FAN BLOWER 117X76MM 12VDC WIRE |
0 | - |
|
数据表 |
G2G085 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 117mm L x 127mm H | 47.0 CFM (1.32m³/min) | - | Ball | 2 lbs (907.2 g) | Blower | - | 76.00mm | 52.0dB(A) | 10 W | - | - | - | 2 Wire Leads | - |
|

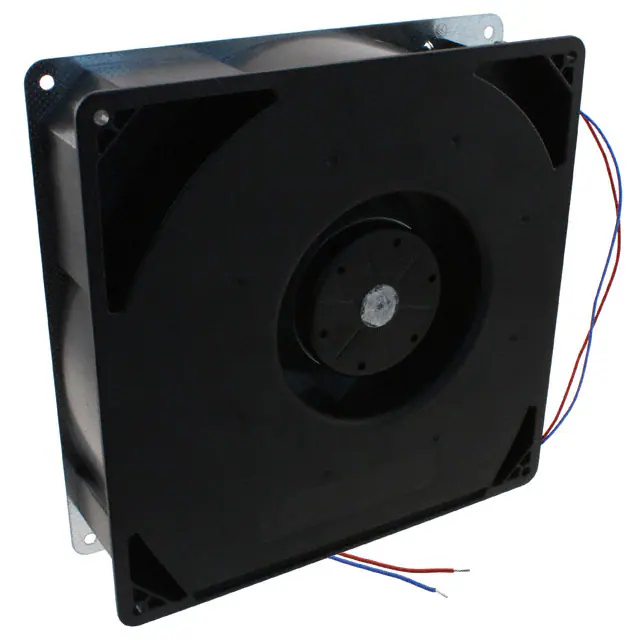

RG160-28/18NTDIFAN BLOWER CF 220X56MM 48VDC |
0 | - |
|
数据表 |
RG160NTD | Box | Active | 48VDC | Square - 220mm L x 220mm H | 176.6 CFM (4.94m³/min) | - | Ball | 3.1 lbs (1.4 kg) | Blower, Centrifugal | Temperature Sensor | 56.00mm | - | 58 W | - | - | - | 2 Wire Leads | - |
|
|
RER225-63/14/2TDLPS-FORCE EC RADIAL BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G225-AC73-52FAN IMP MTRZD 225X99MM 48VDC |
0 | - |
|
数据表 |
R1G225 | - | Obsolete | 48VDC | Round - 225mm Dia | 625.0 CFM (17.50m³/min) | - | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 73.0dB(A) | 110 W | - | - | - | 4 Wire Leads | - |
|
|
RER225-63/18/2TDLPS-FORCE EC RADIAL BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RER190-45/182TDPFAN IMP MTRZD 192X69MM 48VDC |
0 | - |
|
数据表 |
RER190TD | Box | Active | 48VDC | Round - 192mm Dia | 635.7 CFM (17.80m³/min) | - | Ball | 1.8 lbs (816.5 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 216 W | - | 4600 RPM | - | 4 Wire Leads | - |
