直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R172H2-051-D0750DC AXIAL FAN |
0 | - |
|
数据表 |
R172 | Box | Active | 48VDC | Round - 172.7mm Dia | 364.0 CFM (10.19m³/min) | 2.236 in H2O (557.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 66.0dB | 48 W | - | 5000 RPM | - | 4 Wire Leads | - |
|
|
6248N/19TDI-264DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G120-AD17-11DC BACKWARD-CURVED MOTORIZED IMP |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9WG5748G5002FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 546.0 CFM (15.29m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 78.0dB(A) | 140 W | CSA, TUV, UL | 8600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
THB2048CTC3PFAN AXIAL 208X70MM 48VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV6224U-525DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
DV6200 | Bulk | Active | 24VDC | Round - 171.5mm Dia | 312.2 CFM (8.74m³/min) | 1.666 in H2O (415.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 65.0dB(A) | 37 W | CCC, CSA, CE, EAC, VDE, UL | 4300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
5318/2TDHPFAN AXIAL 140X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
5300TD | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 241.3 CFM (6.76m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 70.0dB(A) | 41 W | - | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
DV6424/12DV6424/12 |
1 | - |
|
数据表 |
DV6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 159.7mm H | 306.3 CFM (8.58m³/min) | 1.710 in H2O (425.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.00mm | 63.0dB(A) | 41 W | CCC, CSA, CE, EAC, VDE, UL | 4300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
RER1013614N2HHAFAN IMP MTRZD 101X52MM 24VDC |
0 | - |
|
数据表 |
RER101 | Box | Active | 24VDC | Round - 101mm Dia | 111.8 CFM (3.13m³/min) | - | Ball | 0.67 lb (303.91 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 52.00mm | 69.0dB(A) | 23 W | - | - | - | 4 Wire Leads | - |
|
|
55668.42040FAN BLOWER CF 266X108.4MM 24VDC |
0 | - |
|
数据表 |
QLN65DC | Bulk | Active | 24VDC | Rectangular - 266mm L x 64mm H | 123.9 CFM (3.47m³/min) | 0.441 in H2O (110.0 Pa) | - | - | Blower, Cross Flow | - | 108.4mm | - | 16 W | - | 1850 RPM | 32 ~ 140°F (0 ~ 60°C) | Terminal Block | IP20 |
|

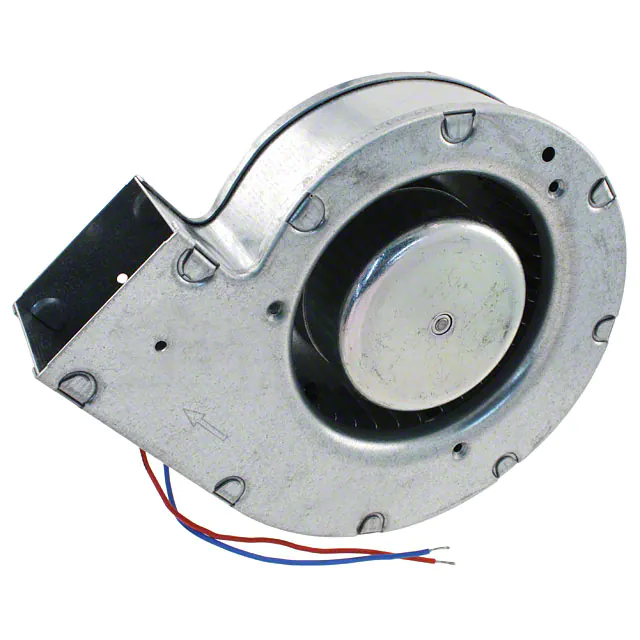

G2G097-AA16-01FAN BLOWER 143X41MM 24VDC WIRE |
0 | - |
|
数据表 |
G2G097 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 143mm L x 137mm H | 50.0 CFM (1.40m³/min) | - | Ball | 2 lbs (907.2 g) | Blower | - | 41.00mm | 57.0dB(A) | 18 W | - | - | - | 2 Wire Leads | - |
|
6314HFAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
6300H | Bulk | Active | 24VDC | Round - 172mm Dia | 349.0 CFM (9.77m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 31 W | - | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
6248N/12TDP-274FAN IMP MTRZD 171.5X50.8MM 48VDC |
0 | - |
|
数据表 |
6200N | Bulk | Obsolete | 48VDC | Round - 171.5mm Dia | 353.0 CFM (9.88m³/min) | - | Ball | - | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 50.80mm | - | 52.8 W | CSA, UL, VDE | 5160 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
DV6428UDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F175A3-062-D0550FAN IMP MTRZD 175X69.3MM 24VDC |
0 | - |
|
数据表 |
F175 | Bulk | Obsolete | 24VDC | Round - 175mm Dia | 505.0 CFM (14.14m³/min) | 4.260 in H2O (1061.2 Pa) | Ball | 2.3 lbs (1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.30mm | 77.0dB(A) | 92.4 W | - | 5300 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
6318N/2TDH3PDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
6300NTD | Bulk | Active | 48VDC | Round - 171.5mm Dia | 606.7 CFM (16.99m³/min) | - | Ball | - | Tubeaxial | Alarm Sensor, Speed Sensor (Tach) | 51.00mm | 83.0dB(A) | 152 W | CSA, VDE, UL | 7500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
R172A8-051-D0590DC AXIAL FAN |
0 | - |
|
数据表 |
R172A | Box | Active | 24VDC | Round - 172.7mm Dia | 585.0 CFM (16.38m³/min) | 6.118 in H2O (1524.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 82.0dB | 206 W | - | 9300 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
R172A9-051-D0560DC AXIAL FAN |
0 | - |
|
数据表 |
R172A | Box | Active | 24VDC | Round - 172.7mm Dia | 410.0 CFM (11.48m³/min) | 3.139 in H2O (782.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 74.0dB | 67.2 W | - | 6300 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
MSI2577H24B-BBRFAN IMP MTRZD 250X77.3MM 24VDC |
0 | - |
|
数据表 |
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | 4.4 lbs (2 kg) | Motorized Impellers | Auto Restart | 77.30mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
MSI2577H48B-BBRFAN IMP MTRZD 250X77.3MM 48VDC |
0 | - |
|
数据表 |
MSI2577 | Box | Active | 48VDC | Round - 250mm Dia | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | 4.4 lbs (2 kg) | Motorized Impellers | Auto Restart | 77.30mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
