直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD280-24HBFAN AXIAL 280X89MM 24VDC WIRE |
0 | - |
|
数据表 |
OD280 | Box | Active | 24VDC | Square - 280mm L x 280mm H | 1200.0 CFM (33.60m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 72.0dB | 104 W | cURus, TUV | 2550 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | - |
|
|
OD280-24MBFAN AXIAL 280X89MM 24VDC WIRE |
0 | - |
|
数据表 |
OD280 | Box | Active | 24VDC | Square - 280mm L x 280mm H | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 56.0dB | 60 W | cURus, TUV | 2200 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | - |
|
OD280-12MTBDC FAN 12V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 56.0dB(A) | 90 W | CE, cURus, TUV, UR | 2150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280-24MTBDC FAN 24V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 56.0dB(A) | 60 W | CE, cURus, TUV, UR | 2150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280-24LTBDC FAN 24V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 48.0dB(A) | 27 W | CE, cURus, TUV, UR | 1800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280-24LBDC FAN 24V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 48.0dB(A) | 27 W | CE, cURus, TUV, UR | 1800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD280-12LBDC FAN 12V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 48.0dB(A) | 50 W | CE, cURus, TUV, UR | 1800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD280-12LTBDC FAN 12V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 48.0dB(A) | 50 W | CE, cURus, TUV, UR | 1800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280-24HTBDC FAN 24V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 72.0dB(A) | 105 W | CE, cURus, TUV, UR | 2400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280AN-24HBThermal Products |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 72.0dB(A) | 105 W | CE, cURus, TUV, UR | 2400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
K1G220-AA67-02ENERGY-SAVING CENTRIFIGUAL MODUL |
0 | - |
|
数据表 |
K1G220 | Bulk | Active | 48VDC | Square - 270mm L x 270mm H | 605.0 CFM (16.94m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 92.00mm | 71.0dB(A) | 94 W | CSA, EAC, UL | 3100 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP42 |
|
|
K1G220-AA89-02ENERGY-SAVING CENTRIFIGUAL MODUL |
0 | - |
|
数据表 |
K1G220 | Bulk | Active | 24VDC | Square - 270mm L x 270mm H | - | - | Ball | - | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 92.00mm | - | 68 W | CSA, EAC, UL | 2800 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP42 |
|

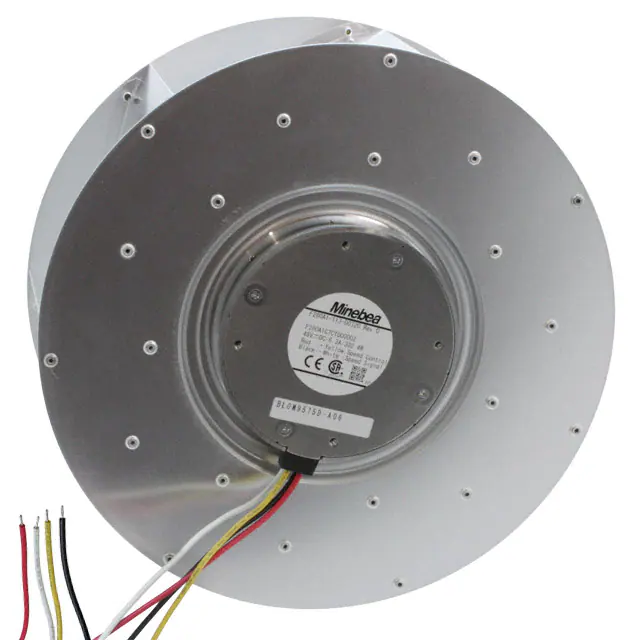

F280A2-113-D0720FAN IMP MTRZD 280X128.7MM 48VDC |
0 | - |
|
数据表 |
F280 | Bulk | Active | 48VDC | Round - 280mm Dia | 1071.0 CFM (30.00m³/min) | 1.668 in H2O (415.5 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 128.7mm | 75.0dB(A) | 134.4 W | - | 2000 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
F280A4-113-D0510FAN IMP MTRZD 280X128.7MM 24VDC |
0 | - |
|
数据表 |
F280 | Bulk | Active | 24VDC | Round - 280mm Dia | 940.0 CFM (26.32m³/min) | 1.206 in H2O (300.4 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 128.7mm | 70.0dB | 93.6 W | - | 1700 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
OD280AN-48HBFAN AXIAL 280X89MM 48VDC WIRE |
0 | - |
|
数据表 |
OD280 | Box | Active | 48VDC | Square - 280mm L x 280mm H | 1200.0 CFM (33.60m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 72.0dB | 104 W | cURus, TUV | 2550 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | - |
|
|
OD280-48MBFAN AXIAL 280X89MM 48VDC WIRE |
0 | - |
|
数据表 |
OD280 | Box | Active | 48VDC | Square - 280mm L x 280mm H | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 56.0dB | 60 W | cURus, TUV | 2200 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | - |
|
|
OD280-48LTBDC FAN 48V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 870.0 CFM (24.36m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 48.0dB(A) | 27 W | cURus, TUV | 1800 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Terminals | - |
|
|
OD280-48HTBDC FAN 48V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 72.0dB(A) | 106 W | CE, cURus, TUV, UR | 2400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280-48MTBDC FAN 48V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 56.0dB(A) | 60 W | CE, cURus, TUV, UR | 2150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280-48LBDC FAN 48V 280X89MM |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 870.0 CFM (24.36m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 48.0dB(A) | 27 W | cURus, TUV | 1800 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | - |
