直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD280AN-24MTBThermal Products |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 56.0dB(A) | 60 W | CE, cURus, TUV, UR | 2150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280AN-24LTBThermal Products |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 48.0dB(A) | 27 W | CE, cURus, TUV, UR | 1800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280AN-12MTBThermal Products |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 56.0dB(A) | 90 W | CE, cURus, TUV, UR | 2150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
RER225-63/18/2TDPS-FORCE EC RADIAL BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
REF100-11/12/17U-202DC FLATPAK - RADIAL BLOWER |
0 | - |
|
数据表 |
REF100 | Bulk | Active | 12VDC | Round - 104mm Dia | 50.6 CFM (1.42m³/min) | - | Ball | - | Blower, Centrifugal | - | 24.90mm | - | 7.5 W | CE | 5400 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
F225A2-092-D0730FAN IMP MTRZD 225X99MM 48VDC |
0 | - |
|
数据表 |
F225 | Bulk | Active | 48VDC | Round - 225mm Dia | 763.0 CFM (21.36m³/min) | 3.440 in H2O (856.9 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 79.0dB(A) | 201.6 W | - | 3600 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
F225A4-092-D0530FAN IMP MTRZD 225X99MM 24VDC |
0 | - |
|
数据表 |
F225 | Bulk | Active | 24VDC | Round - 225mm Dia | 763.0 CFM (21.36m³/min) | 3.440 in H2O (856.9 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 79.0dB(A) | 172.8 W | - | 3600 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
F225A3-092-D0720FAN IMP MTRZD 225X99MM 48VDC |
0 | - |
|
数据表 |
F225 | Bulk | Active | 48VDC | Round - 225mm Dia | 618.0 CFM (17.30m³/min) | 2.305 in H2O (574.2 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 74.0dB(A) | 105.6 W | - | 2900 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
F225A5-092-D0520FAN IMP MTRZD 225X99MM 24VDC |
0 | - |
|
数据表 |
F225 | Bulk | Active | 24VDC | Round - 225mm Dia | 611.0 CFM (17.11m³/min) | 2.305 in H2O (574.2 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 74.0dB(A) | 93.6 W | - | 2900 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
OD280-12HBFAN AXIAL 280X89MM 12VDC WIRE |
0 | - |
|
数据表 |
OD280 | Box | Active | 12VDC | Square - 280mm L x 280mm H | 1200.0 CFM (33.60m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 72.0dB | - | cURus, TUV | 2550 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | - |
|
|
OD280AN-48MTBThermal Products |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 56.0dB(A) | 60 W | CE, cURus, TUV, UR | 2150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
OD280AN-48MBThermal Products |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 56.0dB(A) | 60 W | CE, cURus, TUV, UR | 2150 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD280AN-48HTBThermal Products |
0 | - |
|
数据表 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 72.0dB(A) | 106 W | CE, cURus, TUV, UR | 2400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
W1G180-AB31-01FAN AXIAL 200X70MM 24VDC WIRE |
0 | - |
|
数据表 |
W1G180 | Bulk | Active | 24VDC | Round - 200mm Dia | 529.7 CFM (14.83m³/min) | - | Ball | 4 lbs (1.8 kg) | Tubeaxial | - | 70.00mm | 68.0dB(A) | 93 W | CE, CSA, UL | 4550 RPM | -13 ~ 140°F (-25 ~ 60°C) | 2 Wire Leads | - |
|
|
RG190-39/182TDOFAN,CENTRIFUGAL,48VDC,-CFM,-W-A, |
0 | - |
|
数据表 |
RG190TD | Bulk | Active | 48VDC | Square - 226mm L x 226mm H | 547.8 CFM (15.34m³/min) | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 79.50mm | - | 140 W | - | 4400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|

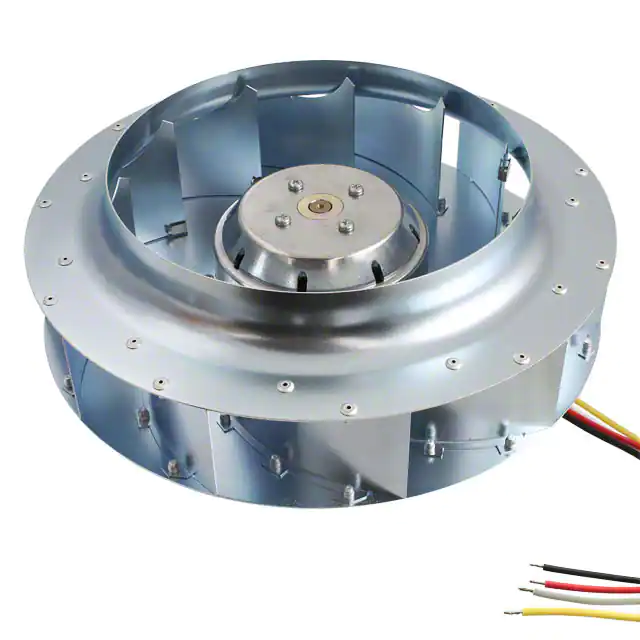

F250A4-072-D0720FAN IMP MTRZD 250X99.8MM 48VDC |
0 | - |
|
数据表 |
F250 | Bulk | Active | 48VDC | Round - 250mm Dia | 693.0 CFM (19.40m³/min) | 1.964 in H2O (489.2 Pa) | Ball | 5.3 lbs (2.4 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.80mm | 74.0dB(A) | 88.8 W | - | 2500 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|

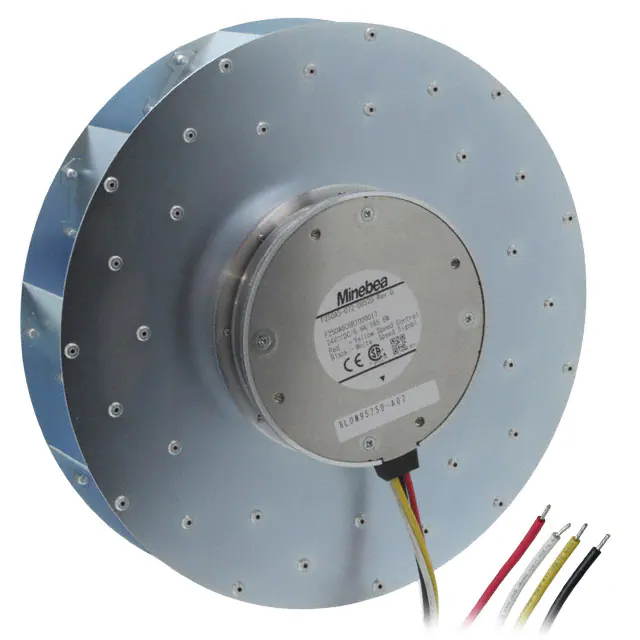

F250A5-072-D0520FAN IMP MTRZD 250X99.8MM 24VDC |
0 | - |
|
数据表 |
F250 | Bulk | Active | 24VDC | Round - 250mm Dia | 806.0 CFM (22.57m³/min) | 2.593 in H2O (646.2 Pa) | Ball | 5.3 lbs (2.4 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.80mm | 78.0dB(A) | 145.2 W | - | 2900 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
F250A6-072-D0420FAN IMP MTRZD 250X99.8MM 24VDC |
0 | - |
|
数据表 |
F250 | Bulk | Active | 24VDC | Round - 250mm Dia | 668.0 CFM (18.70m³/min) | 1.845 in H2O (459.6 Pa) | Ball | 5.2 lbs (2.4 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.80mm | 73.0dB(A) | 84 W | - | 2400 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
RG225-55/14/2TDMLOFAN BLOWER CF 270X119.0MM 24VDC |
0 | - |
|
数据表 |
RER225TD, S-Force | Bulk | Active | 24VDC | Square - 270mm L x 270mm H | 642.0 CFM (17.98m³/min) | - | Ball | - | Blower, Centrifugal | PWM Control, Speed Sensor (Tach) | 119.0mm | - | 80 W | - | 2500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
OD280-12MBFAN AXIAL 280X89MM 12VDC WIRE |
0 | - |
|
数据表 |
OD280 | Box | Active | 12VDC | Square - 280mm L x 280mm H | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | - | 89.00mm | 56.0dB | 90 W | cURus, TUV | 2200 RPM | 5 ~ 149°F (-15 ~ 65°C) | 2 Wire Leads | - |
