直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

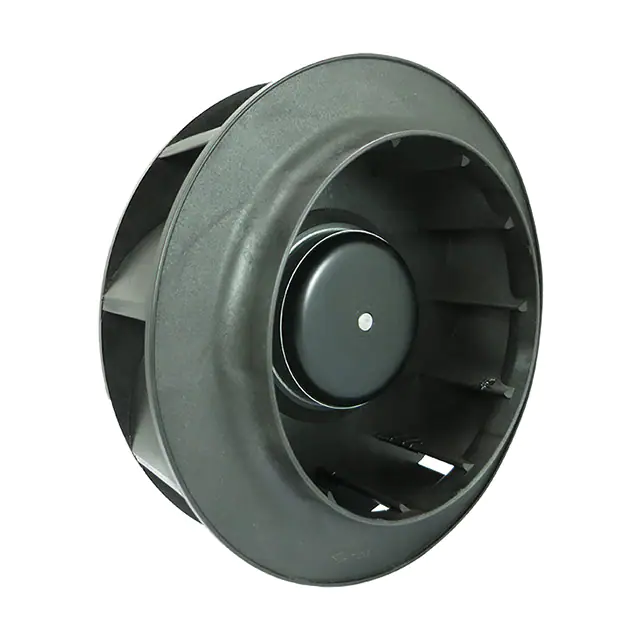

ODB250110-48HB10AFAN IMP MTRZD 250X106.5MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Round - 250mm Dia | 790.0 CFM (22.12m³/min) | 2.220 in H2O (553.0 Pa) | Ball | 5.1 lbs (2.3 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 106.5mm | 78.0dB | 130 W | CE, cURus, TUV, UR | 2600 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|
DV6448/12FAN AXIAL 171.5X50.8MM 48VDC |
0 | - |
|
数据表 |
DV6400 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 312.0 CFM (8.74m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 65.0dB(A) | 40 W | - | 4300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
F175H5-061-D0750FAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
F175H | Bulk | Obsolete | 48VDC | Round - 175mm Dia | 610.0 CFM (17.08m³/min) | 4.190 in H2O (1046.0 Pa) | Ball | 2 lbs (907.2 g) | Motorized Impellers | - | 69.00mm | 78.0dB(A) | 182 W | - | 5400 RPM | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
|
F175H8-061-D0750FAN IMP MTRZD 175X69MM BALL |
0 | - |
|
数据表 |
F175H | Bulk | Obsolete | - | Round - 175mm Dia | - | - | Ball | 2 lbs (907.2 g) | Motorized Impellers | - | 69.00mm | - | - | - | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
|
G2G085-AB02-01FAN BLOWER 117X76MM 24VDC WIRE |
0 | - |
|
数据表 |
G2G085 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 117mm L x 127mm H | 47.0 CFM (1.32m³/min) | - | Ball | 2 lbs (907.2 g) | Blower | - | 76.00mm | 53.0dB(A) | 13 W | - | - | - | 2 Wire Leads | - |
|
RVE45-3/14/2PFAN BLOWER CF 69.5X66.7MM 24VDC |
0 | - |
|
数据表 |
RVE45 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 69.5mm L x 64.6mm H | 13.5 CFM (0.378m³/min) | 17.263 in H2O (4300.0 Pa) | Ball | - | Blower, Centrifugal | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.70mm | 50.0dB(A) | 36 W | CCC, CE, CSA, EAC, UL, VDE | 36500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
DV6248UFAN AXIAL 171.5X50.8MM 48VDC |
0 | - |
|
数据表 |
DV6200U | Bulk | Active | 48VDC | Round - 171.5mm Dia | 317.8 CFM (8.90m³/min) | - | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 50.80mm | 63.0dB(A) | 40 W | UL | 4300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
55668.42030FAN BLOWER CF 266X108.4MM 24VDC |
0 | - |
|
数据表 |
QLN65DC | Bulk | Active | 24VDC | Rectangular - 266mm L x 64mm H | 123.9 CFM (3.47m³/min) | 0.441 in H2O (110.0 Pa) | - | - | Blower, Cross Flow | - | 108.4mm | - | 16 W | - | 1850 RPM | 32 ~ 140°F (0 ~ 60°C) | Terminal Block | IP20 |
|
|
4114N/2H8PUFAN,AXIAL,24VDC,332.5CFM,120W5A, |
0 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 332.4 CFM (9.31m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 78.0dB(A) | 120 W | - | 11000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
R200A1-051-D0750DC AXIAL FAN |
0 | - |
|
数据表 |
R200A | Box | Active | 48VDC | Round - 200mm Dia | 590.0 CFM (16.52m³/min) | 3.324 in H2O (828.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.00mm | 67.0dB | 62.4 W | - | 5000 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
R200A5-051-D0540DC AXIAL FAN |
0 | - |
|
数据表 |
R200A | Box | Active | 24VDC | Round - 200mm Dia | 472.0 CFM (13.22m³/min) | 2.124 in H2O (529.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.00mm | 61.0dB | 36 W | - | 4000 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
6318N/2TDH3PUDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DV6424/2TDP-815FAN AXIAL 171.5X50.8MM 24VDC |
1 | - |
|
数据表 |
DV6400TD | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 171.5mm L x 159.7mm H | 400.0 CFM (11.20m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 71.0dB(A) | 91 W | - | 5500 RPM | - | 3 Wire Leads | - |
|
|
F175H2-061-D0740FAN AXIAL 175X69MM 48VDC WIRE |
0 | - |
|
数据表 |
F175H | Bulk | Active | 48VDC | Round - 175mm Dia | 514.0 CFM (14.39m³/min) | 3.400 in H2O (846.9 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 69.00mm | 73.0dB | 110.4 W | - | 4500 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
F175H4-061-D0540FAN AXIAL 175X69MM 24VDC WIRE |
0 | - |
|
数据表 |
F175H | Bulk | Active | 24VDC | Round - 175mm Dia | 455.0 CFM (12.74m³/min) | 2.600 in H2O (647.7 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 69.00mm | 71.0dB | 72 W | - | 4000 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
DV6248/2TDPFAN AXIAL 171.5X50.8MM 48VDC |
0 | - |
|
数据表 |
DV6400TD | Bulk | Obsolete | 48VDC | Round - 171.5mm Dia | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 50.80mm | - | 89 W | CE, CSA, UL, VDE | 5500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
DV6424TD-844DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
DV6400 | Bulk | Active | 24VDC | Round - 171.5mm Dia | 400.0 CFM (11.20m³/min) | - | Ball | - | Tubeaxial | - | 50.80mm | 71.0dB(A) | 91 W | - | 5500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109E2024H001FAN AXIAL 200X70MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 289.5 CFM (8.11m³/min) | 0.771 in H2O (192.0 Pa) | Ball | 3.9 lbs (1.8 kg) | Tubeaxial | Speed Sensor (Tach) | 70.00mm | 51.0dB(A) | 24 W | CSA, TUV, UR | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
109E2024S001FAN AXIAL 200X70MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 369.0 CFM (10.33m³/min) | 1.153 in H2O (287.1 Pa) | Ball | 3.9 lbs (1.8 kg) | Tubeaxial | Speed Sensor (Tach) | 70.00mm | 57.0dB(A) | 45.6 W | CSA, TUV, UR | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
6318/2TDH4PUS-FORCE DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
