直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD254AP-12HTBIP69KFAN IMP MTRZD 254X89MM 12VDC |
0 | - |
|
数据表 |
OD254AP-IP69K | Box | Active | 12VDC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Motorized Impellers | Auto Restart | 89.00mm | 62.1dB(A) | 65 W | CE, cURus, TUV, UR | 2450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof |
|
RER175-42/14/2TDMLPFAN IMP MTRZD 175X69MM 24VDC |
0 | - |
|
数据表 |
RER175TD, S-Force | Bulk | Active | 24VDC | Round - 175mm Dia | 353.0 CFM (9.88m³/min) | - | Ball | 1.7 lbs (780.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 48 W | - | 3400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
R150H3-051-D0760FAN AXIAL 172.7X50.8MM 48VDC |
0 | - |
|
数据表 |
R150 | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 473.0 CFM (13.24m³/min) | 3.200 in H2O (797.1 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 73.0dB(A) | 180 W | - | 6500 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
R150H1-051-D0560FAN AXIAL 172.7X50.8MM 24VDC |
0 | - |
|
数据表 |
R150 | Box | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 473.0 CFM (13.24m³/min) | 3.204 in H2O (798.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 73.0dB | 96 W | - | 6500 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
R150H4-051-D0760FAN AXIAL 172.7X50.8MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R150H3-051-D0750FAN AXIAL 172.7X50.8MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV5214/2NU-805DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
DV5200 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 159.0 CFM (4.45m³/min) | 1.084 in H2O (270.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | 18.5 W | CCC, CSA, CE, EAC, VDE, UL | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD254AP-48HTBIP69KFAN IMP MTRZD 254X89MM 48VDC |
0 | - |
|
数据表 |
OD254AP-IP69K | Box | Active | 48VDC | Round - 254mm Dia | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Motorized Impellers | Auto Restart | 89.00mm | 62.1dB(A) | 65 W | CE, cURus, TUV, UR | 2450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
6424/2HP-210FAN AXL 171.5X50.8MM 24VDC RECT |
0 | - |
|
数据表 |
6400 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 288.6 CFM (8.08m³/min) | 0.984 in H2O (245.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 50.80mm | 63.0dB(A) | 31.4 W | CE, CSA, EAC, UL, VDE | 4270 RPM | -4 ~ 162°F (-20 ~ 72°C) | 4 Position Rectangular Connector | - |
|
|
4158N/2H7PS-FORCE DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4154N/2H8PS-FORCE DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 315.0 CFM (8.82m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 80.0dB(A) | 120 W | - | 11000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
4158N/2H8PS-FORCE DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4154N/2H7PS-FORCE DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
4154N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 274.0 CFM (7.67m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 77.0dB(A) | 90 W | - | 9500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
DV6424/12DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
DV6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 159.7mm H | 306.3 CFM (8.58m³/min) | 1.710 in H2O (425.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.00mm | 63.0dB(A) | 41 W | CCC, CSA, CE, EAC, VDE, UL | 4300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
R1G133-AB75-20FAN IMP MTRZD 133X59.5MM 12VDC |
0 | - |
|
数据表 |
R1G133AB | - | Obsolete | 12VDC | Round - 133mm Dia | 160.0 CFM (4.48m³/min) | - | Ball | 1.6 lbs (725.7 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 59.50mm | 64.0dB(A) | 18 W | - | - | - | 4 Wire Leads | - |
|
|
R150A3-051-D0790FAN AXIAL 172.7X50MM 48VDC WIRE |
0 | - |
|
数据表 |
R150 | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 544.0 CFM (15.23m³/min) | 6.210 in H2O (1546.9 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.00mm | 85.0dB | 196.8 W | - | 9300 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|

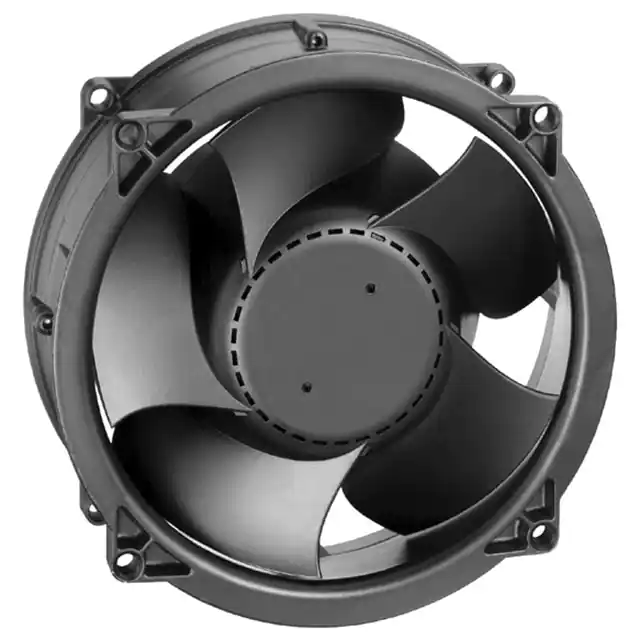

W1G180-AA03-10FAN AXIAL 200X70MM 48VDC WIRE |
0 | - |
|
数据表 |
W1G180 | - | Obsolete | 48VDC | Round - 200mm Dia | 377.0 CFM (10.56m³/min) | - | Ball | 4.2 lbs (1.9 kg) | Tubeaxial | - | 70.00mm | 59.0dB(A) | 36 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
W2G110-AK67-24FAN AXIAL 119X38MM 12VDC TERM |
0 | - |
|
数据表 |
W2G110 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 17 W | EAC, UL | 4400 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Terminals | IP42 |
|
|
R172H4-051-D0550DC AXIAL FAN |
0 | - |
|
数据表 |
R172 | Box | Active | 24VDC | Round - 172.7mm Dia | 364.0 CFM (10.19m³/min) | 2.236 in H2O (557.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 66.0dB | 48 W | - | 5000 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
|
R172H3-051-D0560DC AXIAL FAN |
0 | - |
|
数据表 |
R172 | Box | Active | 24VDC | Round - 172.7mm Dia | 473.0 CFM (13.24m³/min) | 3.204 in H2O (798.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 73.0dB | 96 W | - | 6500 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
