直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8218J/2NP-181DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
THB1548DG-CXKRFAN AXIAL 172X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
THB | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 410.5 CFM (11.49m³/min) | 2.085 in H2O (519.3 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 70.0dB(A) | 75.36 W | CE, cURus, TUV | 5800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
9GV1424H1D001140X38MM 24V, GUIDE VANE, HIGH A |
0 | - |
|
数据表 |
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
RG90-18/18NFAN BLOWER 135X38MM 48VDC WIRE |
0 | - |
|
数据表 |
RG90DC | Bulk | Active | 48VDC | Square - 135mm L x 135mm H | 32.4 CFM (0.907m³/min) | - | Ball | 0.97 lb (439.98 g) | Blower | - | 38.00mm | 55.0dB(A) | 5.5 W | - | - | - | 2 Wire Leads | - |
|
|
9WL0824P4H001FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.2 W | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

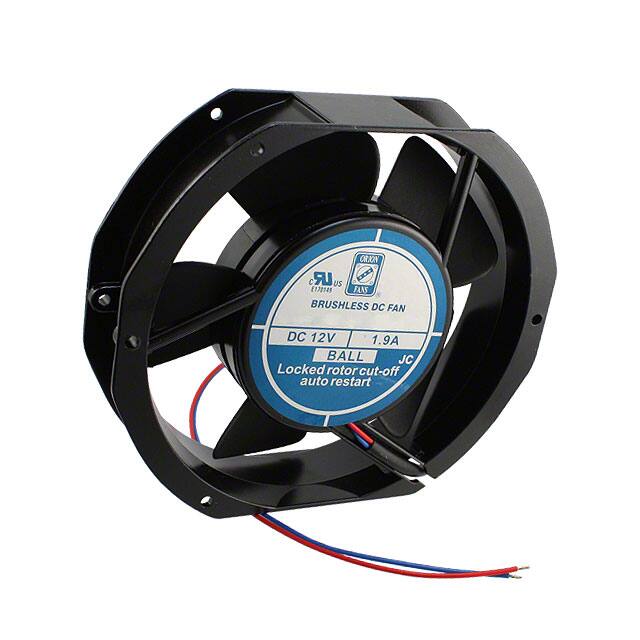

OD172SAPL-12HBFAN AXIAL 172X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD172SAPL | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 225.0 CFM (6.30m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Auto Restart | 38.50mm | 55.0dB | - | cURus, TUV | 4000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
4114N/2HHFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 153.0 CFM (4.28m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 67.0dB(A) | 12.4 W | - | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|

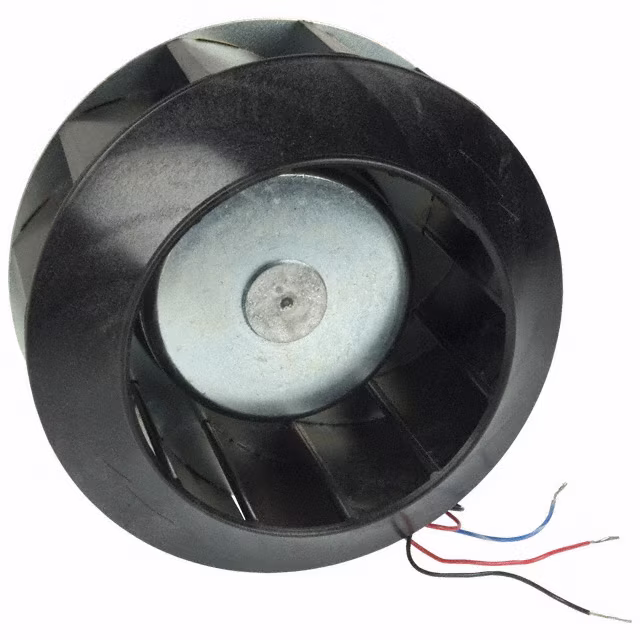

19039834AFAN IMP MTR 133X91MM DD523648K1A |
0 | - |
|
数据表 |
Diplomat | - | Obsolete | 48VDC | Round - 133mm Dia | 200.0 CFM (5.60m³/min) | 1.750 in H2O (435.9 Pa) | Ball | 1.5 lbs (680.4 g) | Motorized Impellers | Speed Sensor (Tach) | 91.00mm | 65.9dB(A) | 31.2 W | CE, cUL, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
9WL0612S4002FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 53.0dB(A) | 8.04 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL0612S4D001FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 53.0dB(A) | 8.04 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL0624S400160X25MM 24V; SPLASH & DUST PROOF |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
19044009AFAN AXIAL 200.7X69.9MM MFSE48Z |
0 | - |
|
数据表 |
Mixtus | Bulk | Active | 48VDC | Round - 200.7mm Dia | 530.0 CFM (14.84m³/min) | 2.820 in H2O (702.5 Pa) | Ball | 4 lbs (1.8 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.00mm | 65.4dB(A) | 110 W | CE, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

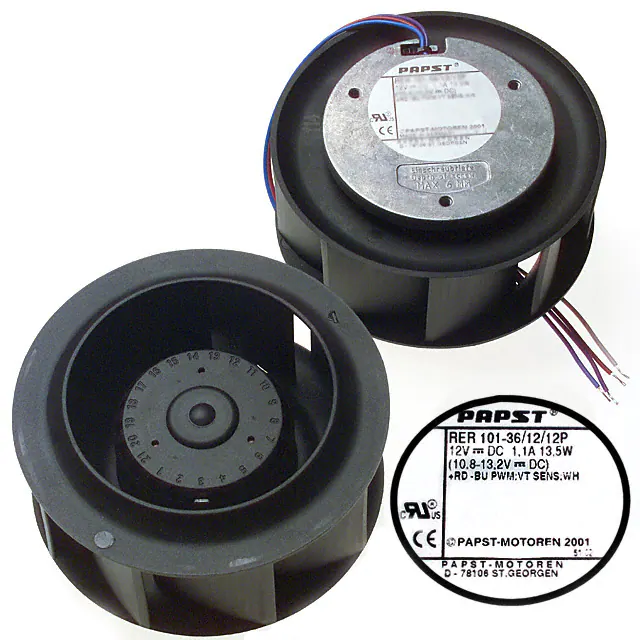

RER101-36/12/12PFAN IMP MTRZD 101X52MM 12VDC |
0 | - |
|
数据表 |
RER101 | - | Obsolete | 12VDC | Round - 101mm Dia | 90.0 CFM (2.52m³/min) | - | Ball | 0.56 lb (254.01 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 52.00mm | 69.0dB(A) | 13.5 W | - | - | - | 4 Wire Leads | - |
|
|
EFC1748DG-TYSGFAN AXIAL 172X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
EFC | Bulk | Active | 48VDC | Round - 172mm Dia | 415.7 CFM (11.64m³/min) | 1.771 in H2O (441.1 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 63.4dB(A) | 59.04 W | - | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
109L5712H502FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | - | 51.00mm | 52.0dB(A) | 14.4 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109L5712M502FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | - | 51.00mm | 41.0dB(A) | 5.76 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109L5724H502FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | - | 51.00mm | 52.0dB(A) | 13.92 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109L5724M502FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | - | 51.00mm | 41.0dB(A) | 4.8 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109L1712H502FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 12VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | - | 51.00mm | 47.0dB(A) | 14.4 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109L1712M502FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 12VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | - | 51.00mm | 36.0dB(A) | 5.76 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
