直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GT0912M1D001FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 58.0dB(A) | 18 W | CSA, TUV, UL | 8100 RPM | -40 ~ 185°F (-40 ~ 85°C) | 3 Wire Leads | - |
|
|
9GT0912M1001FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 18 W | CSA, TUV, UL | 8100 RPM | -40 ~ 185°F (-40 ~ 85°C) | 3 Wire Leads | - |
|
|
9GT0924M1D00192X38MM 24V, WIDE TEMPERATURE RA |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9WV1212J1002FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV1224H102FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 58.0dB(A) | 19.2 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV1248J1002FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 31.2 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

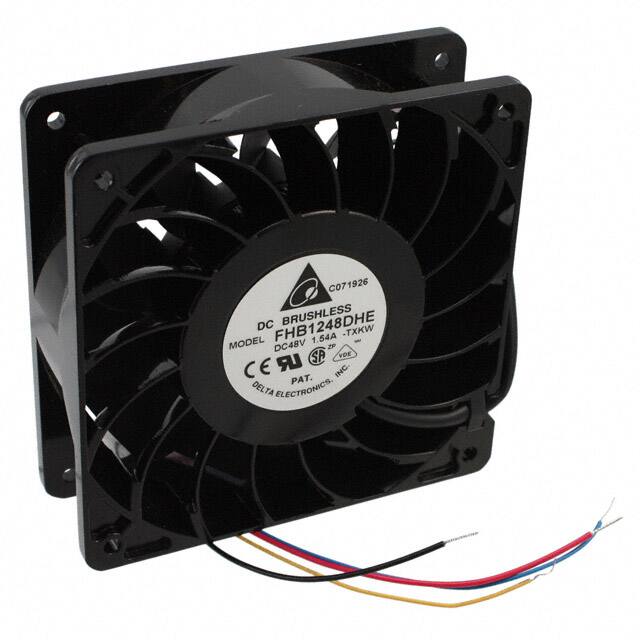

FHB1248DHE-TXKWFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
FHB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 245.8 CFM (6.88m³/min) | 1.502 in H2O (374.1 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 71.5dB(A) | 63.36 W | CE, CSA, UL, VDE | 5800 RPM | -40 ~ 176°F (-40 ~ 80°C) | 4 Wire Leads | - |
|
|
8452/2NDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 39.5 CFM (1.11m³/min) | 0.205 in H2O (51.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 1.9 W | CCC, CSA, CE, EAC, VDE, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9WV1224H1D001FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 58.0dB(A) | 19.2 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV1248J1D001FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 64.0dB(A) | 31.2 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV1224H101FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 19.2 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV1224J1001FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV1248J1001FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.970 lb (440.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 31.2 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV1212J1D001120X38MM 12V, SPLASH PROOF,RBLS |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9HVA0848P1G601180X38MM 48VDC TACH/PWM CLOSELOOP |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 134.0 CFM (3.75m³/min) | 5.020 in H2O (1250.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 73.0dB(A) | 43.2 W | cURus, TUV | 16100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
OD172SAPL-48MBDC FAN 48V 172X150X38MM |
0 | - |
|
数据表 |
OD172SAPL | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 190.0 CFM (5.32m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 45.0dB(A) | - | cURus, TUV | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
OD172SAPL-48LBDC FAN 48V 172X150X38MM |
0 | - |
|
数据表 |
OD172SAPL | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 120.0 CFM (3.36m³/min) | 0.350 in H2O (87.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.50mm | 40.0dB(A) | - | cURus, TUV | 2000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
109E5748F502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 47.0dB(A) | 9.12 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E5748M502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 41.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E1748F502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 42.0dB(A) | 9.12 W | CSA, TUV, UL | 2500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
