直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E1748M502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 36.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
3314U-348DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109E5748C502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 66.0dB(A) | 57.6 W | CSA, TUV, UL | 4800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E5748K502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 60.0dB(A) | 33.6 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109E1748C502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 60.0dB(A) | 57.6 W | CSA, TUV, UL | 4800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E1748K502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 55.0dB(A) | 33.6 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109E5748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 52.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E5748F501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 47.0dB(A) | 9.12 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 47.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1748F501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 42.0dB(A) | 9.12 W | CSA, TUV, UL | 2500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E1748M501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 36.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1748K501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 55.0dB(A) | 33.6 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
_Series.JPG)
|
6248N/12FAN AXL 171.5X50.8MM 48VDC TERM |
0 | - |
|
数据表 |
6200N | Bulk | Obsolete | 48VDC | Round - 171.5mm Dia | 241.3 CFM (6.76m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 55.0dB(A) | 17 W | - | 3400 RPM | 14 ~ 162°F (-10 ~ 72°C) | 3 Terminals | - |
|
|
5218NHHDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
5200N | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 200.3 CFM (5.61m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 58.0dB(A) | 18 W | - | 4900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|

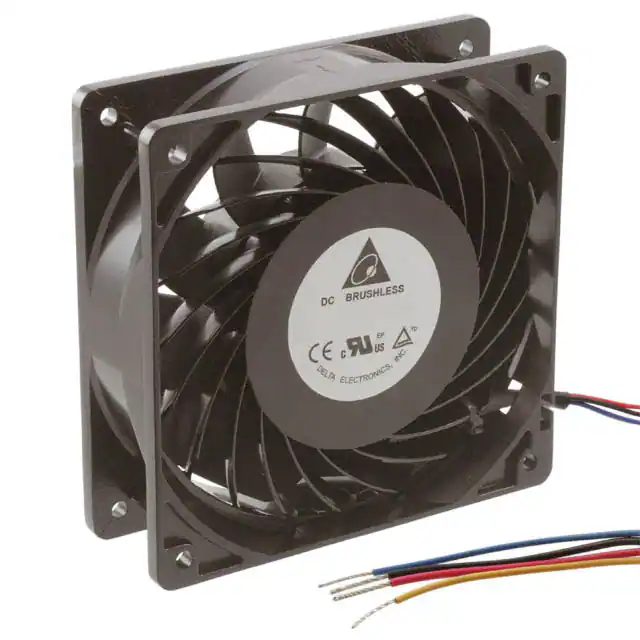

THA1248BEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THA | Box | Active | 48VDC | Square - 120mm L x 120mm H | 318.2 CFM (8.91m³/min) | 3.091 in H2O (770.0 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 72.0dB(A) | 99.36 W | CE, cURus, TUV | 7600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
|
AFB1548VH-CD8GFAN AXIAL 172X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 305.0 CFM (8.54m³/min) | 1.198 in H2O (298.4 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 65.0dB(A) | 31.2 W | CE, cURus, VDE | 5000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | - |
|
|
8452/2LDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 17.7 CFM (0.496m³/min) | 0.048 in H2O (11.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 14.0dB(A) | 410 mW | CCC, CSA, CE, EAC, VDE, UL | 1700 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
8452/2HHPDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 48.9 CFM (1.37m³/min) | - | Ball | - | Tubeaxial | - | 25.40mm | 42.0dB(A) | 3.5 W | - | 4400 RPM | -4°F (-20°C) | 2 Wire Leads | - |
|
|
9GV1412H1002140X38MM 12V, GUIDE VANE, HIGH A |
0 | - |
|
数据表 |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
THB1448AEFAN AXIAL 139.7X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THB | Box | Active | 48VDC | Square - 139.7mm L x 139.7mm H | 325.9 CFM (9.13m³/min) | 1.650 in H2O (411.0 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.8dB(A) | 52.8 W | CE, cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
