直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WL0912P4H001FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 1.8 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL0924P4H001FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 1.68 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
19040451AFAN IMP 175X53MM DD692148K1A-E2 |
0 | - |
|
数据表 |
Diplomat | Bulk | Active | 48VDC | Round - 175mm Dia | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | 2.4 lbs (1.1 kg) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 53.30mm | 67.2dB(A) | 31.2 W | CE, cUR, UL | 3000 RPM | -40 ~ 167°F (-40 ~ 75°C) | 3 Wire Leads | - |
|
RV40-18/12LFAN BLOWER CF 105X58.85MM 12VDC |
0 | - |
|
数据表 |
RV40 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 105mm L x 77.3mm H | 10.6 CFM (0.297m³/min) | - | Ball | - | Blower, Centrifugal | Locked Rotor Protection, Speed Sensor (Tach) | 58.85mm | - | 2 W | CE | 3900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9WL0612H400260X25MM 12V; SPLASH & DUST PROOF |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
REF100-11/12FAN IMP MTRZD 100X24.9MM 12VDC |
0 | - |
|
数据表 |
REF100 | Bulk | Active | 12VDC | Round - 100mm Dia | 50.6 CFM (1.42m³/min) | - | Ball | - | Motorized Impellers | Locked Rotor Protection | 24.90mm | - | 7.5 W | CE | 5400 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
5214N/2HHFAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
5200N | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 203.0 CFM (5.68m³/min) | - | Ball | 0.684 lb (310.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 17.5 W | - | 4900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
5218N/2HHDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
5200N | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 200.3 CFM (5.61m³/min) | 0.863 in H2O (215.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 18 W | CCC, CSA, CE, EAC, VDE, UL | 4900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
9WL0624H400160X25MM 24V; SPLASH & DUST PROOF |
0 | - |
|
数据表 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL0824P4G001FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | 54.4 CFM (1.52m³/min) | 0.393 in H2O (98.0 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 3.36 W | CSA, TUV, UL | 5500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9RA1412M1D001140X38MM 12VDC LOW NOISE LCKRTRS |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424M1D0011140X38MM 24VDC LOW NOISE RBLS LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424H1D0011140X38MM 24VDC LOW NOISE RBLS LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424H1D001140X38MM 24VDC LOW NOISE LCKRTRS |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424M1D001140X38MM 24VDC LOW NOISE LCKRTRS |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412M1D0011140X38MM 12VDC LOW NOISE RBLS LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412H1D0011140X38MM 12VDC LOW NOISE RBLS LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412H1D001140X38MM 12VDC LOW NOISE LCKRTRS |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

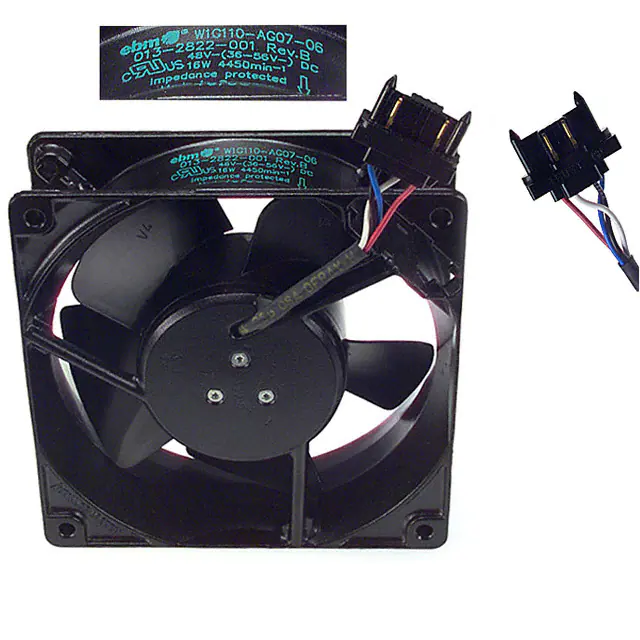

W1G110-AG07-06FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
W1G110 | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 157.0 CFM (4.40m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 63.0dB(A) | 16 W | - | - | - | 2 Wire Leads | - |
|

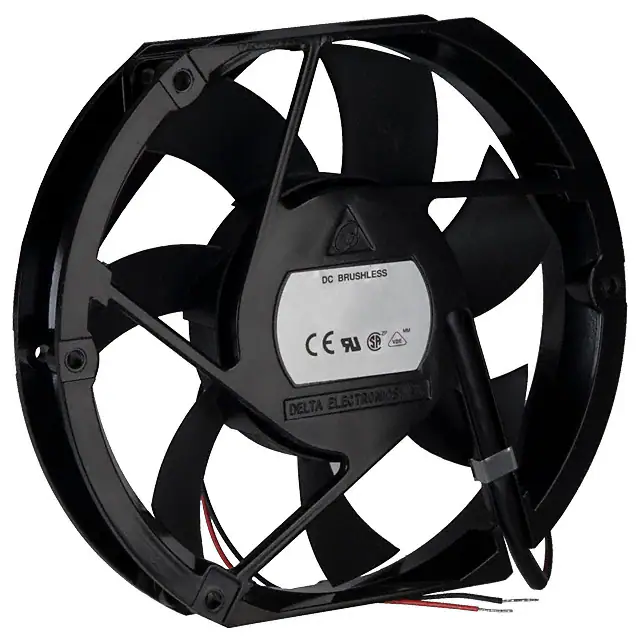

AFB1512L-TA50FAN AXIAL 172X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 46.0dB(A) | 6.72 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
