直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109L1724M5D01FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 24VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 36.0dB(A) | 4.8 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1712M501FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 12VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 36.0dB(A) | 5.76 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1724M501FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 24VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 36.0dB(A) | 4.8 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
LPC17KM99-BTLREC FAN 162X55MM 90-264VAC |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4184NXHUFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | - | 38.00mm | 57.0dB(A) | 11 W | - | 4400 RPM | - | 2 Wire Leads | - |
|

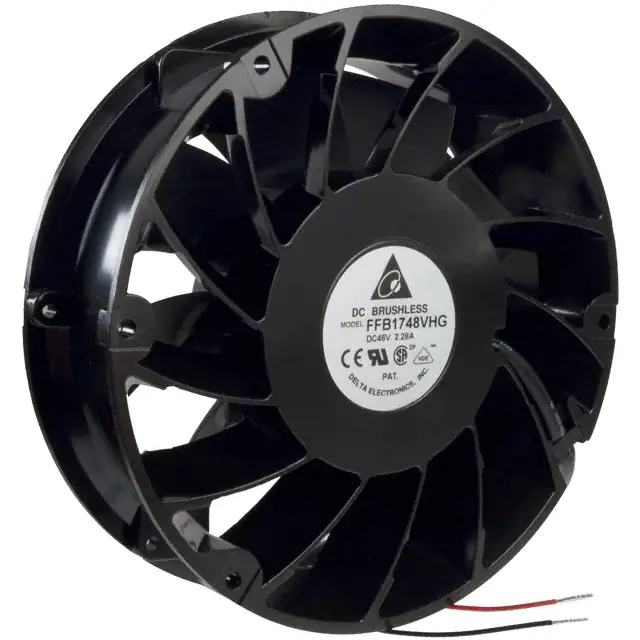

FFB1748VHGFAN AXIAL 172X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Tray | Obsolete | 48VDC | Round - 172mm Dia | 432.8 CFM (12.12m³/min) | 1.578 in H2O (393.1 Pa) | Ball | 2.1 lbs (952.5 g) | Tubeaxial | - | 50.80mm | 72.0dB(A) | 91.2 W | CE, CSA, UL, VDE | 4600 RPM | - | 2 Wire Leads | - |
|
|
OD172SAP-12MBDC FAN 12V 172X150X51MM |
0 | - |
|
数据表 |
OD172SAP | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 180.0 CFM (5.04m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 42.0dB(A) | 13.2 W | CE, cURus, TUV, UR | 2500 RPM | -13 ~ 149°F (-25 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172SAP-12LBThermal Products |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
19040799AFAN MIXTUS 24VDC 96W 5050RPM |
0 | - |
|
数据表 |
Mixtus | Bulk | Active | 24VDC | Round - 172mm Dia | 390.0 CFM (10.92m³/min) | - | Ball | - | Tubeaxial | - | 50.80mm | - | 96 W | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
19041040AFAN MIXTUS 48VDC 96W 5050RPM |
0 | - |
|
数据表 |
Mixtus | Bulk | Active | 48VDC | Round - 172mm Dia | 390.0 CFM (10.92m³/min) | - | Ball | - | Tubeaxial | - | 50.80mm | - | 96 W | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
19040719AFAN MIXTUS 24VDC 96W 5050RPM |
0 | - |
|
数据表 |
Mixtus | Bulk | Active | 24VDC | Round - 172mm Dia | 390.0 CFM (10.92m³/min) | 2.230 in H2O (555.5 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 69.1dB(A) | 96.5 W | - | 5050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
19040720AFAN MIXTUS 48VDC 96W 5050RPM |
0 | - |
|
数据表 |
Mixtus | Bulk | Active | 48VDC | Round - 172mm Dia | 390.0 CFM (10.92m³/min) | 2.230 in H2O (555.5 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 69.1dB(A) | 96.5 W | - | 5050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

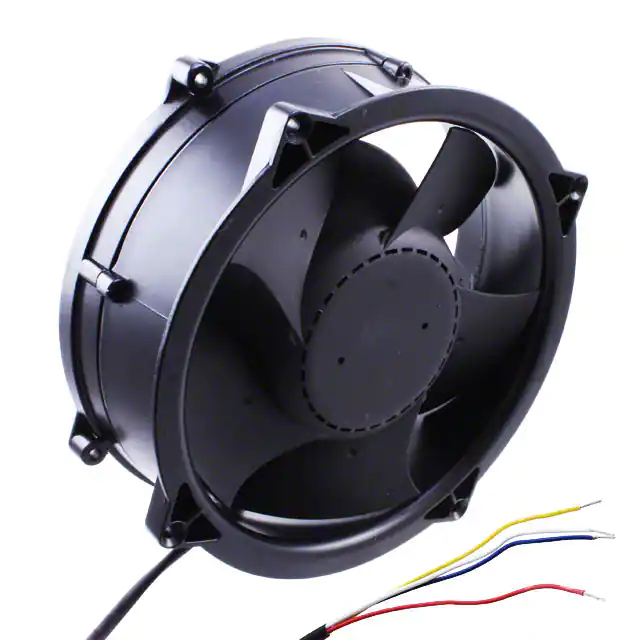

19044008AFAN AXIAL 200.7X69.9MM MFSE24Z |
0 | - |
|
数据表 |
Mixtus | Bulk | Active | 24VDC | Round - 200.7mm Dia | 530.0 CFM (14.84m³/min) | 2.820 in H2O (702.5 Pa) | Ball | 4 lbs (1.8 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.00mm | 65.4dB(A) | 108 W | CCC, CE, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
OD172SAP-24HB01FAN AXIAL 172X50.8MM 24VDC WIRE |
0 | - |
|
数据表 |
OD172S | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.80mm | 52.0dB | - | cURus, TUV | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
|
OD172SAP-24MBThermal Products |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OD172SAP-24LBThermal Products |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109L5748H502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | - | 51.00mm | 52.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109L5748M502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | - | 51.00mm | 41.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109L1748H502FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | - | 51.00mm | 47.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9W1TM48P4H01FAN IMP MTRZD 100X25MM 48VDC |
0 | - |
|
数据表 |
San Ace 100W | Box | Active | 48VDC | Round - 100mm Dia | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 0.353 lb (160.12 g) | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 60.0dB(A) | 10.56 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP54 - Dust Protected, Water Resistant |
