直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

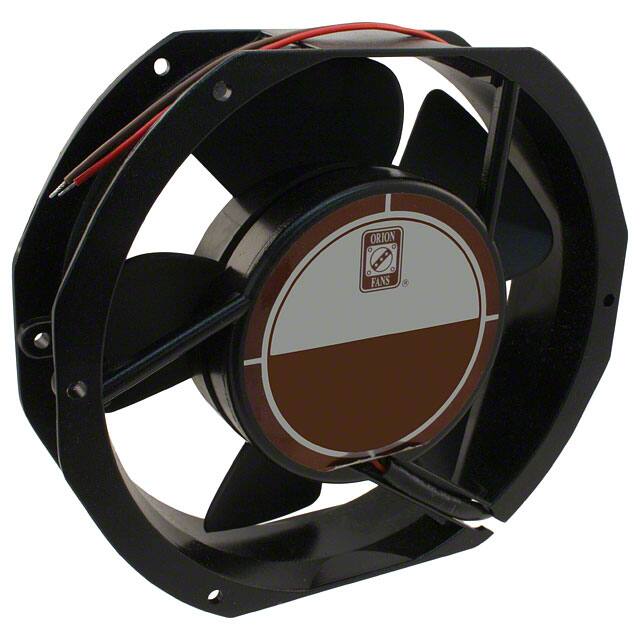

OD172SAPL-48HBFAN AXIAL 172X38.5MM 48VDC WIRE |
0 | - |
|
数据表 |
OD172SAPL | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 225.0 CFM (6.30m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Auto Restart | 38.50mm | 55.0dB | - | cURus, TUV | 4000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
109L5748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 52.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L5748M5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 41.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1748H5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 47.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1748M5D01FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 36.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1748M501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 36.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
OD172SAP-24HB04FAN AXIAL 172X50.8MM 24VDC WIRE |
0 | - |
|
数据表 |
OD172S | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Thermistor | 50.80mm | 52.0dB | - | cURus, TUV | 3300 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Wire Leads | - |
|
|
9RA1424S1D001140X38MM 24VDC LOW NOISE LCKRTRS |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1424S1D0011140X38MM 24VDC LOW NOISE RBLS LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412S1D001140X38MM 12VDC LOW NOISE LCKRTRS |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1412S1D0011140X38MM 12VDC LOW NOISE RBLS LC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OD172AP-12MBThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 41.3dB(A) | 13.2 W | CE, cURus, TUV, UR | 2475 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-24H3BThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 24VDC | Round - 172mm Dia | 318.0 CFM (8.90m³/min) | 1.050 in H2O (261.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 60.1dB(A) | 63.6 W | CE, cURus, TUV, UR | 4125 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-12H3BThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 318.0 CFM (8.90m³/min) | 1.050 in H2O (261.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 60.1dB(A) | 64.8 W | CE, cURus, TUV, UR | 4125 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-48HHBThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 298.0 CFM (8.34m³/min) | 0.970 in H2O (241.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 57.4dB(A) | 49.4 W | CE, cURus, TUV, UR | 3900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-48H3BThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 318.0 CFM (8.90m³/min) | 1.050 in H2O (261.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 60.1dB(A) | 62.4 W | CE, cURus, TUV, UR | 4125 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-24HHBThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 24VDC | Round - 172mm Dia | 298.0 CFM (8.34m³/min) | 0.970 in H2O (241.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 57.4dB(A) | 50.4 W | CE, cURus, TUV, UR | 3900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-12HHBThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 12VDC | Round - 172mm Dia | 298.0 CFM (8.34m³/min) | 0.970 in H2O (241.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 57.4dB(A) | 50.4 W | CE, cURus, TUV, UR | 3900 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-48HBThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 48VDC | Round - 172mm Dia | 230.0 CFM (6.44m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 52.7dB(A) | 23.5 W | CE, cURus, TUV, UR | 3250 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD172AP-24MBThermal Products |
0 | - |
|
数据表 |
OD172AP | Bulk | Active | 24VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.520 in H2O (129.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.00mm | 41.3dB(A) | 13 W | CE, cURus, TUV, UR | 2475 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
