直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA1248G4D0011120X25MM 48V, LOW NOISE, RBLS DC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248E4D0011120X25MM 48V, LOW NOISE, RBLS DC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248A4D001120X25MM 48V, LOW NOISE DC LCKRT |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248A4D0011120X25MM 48V, LOW NOISE, RBLS DC |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1248G4D001120X25MM 48V, LOW NOISE DC LCKRT |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4412FGMLFAN AXIAL 119X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4400F | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 67.1 CFM (1.88m³/min) | - | Sintec | 0.386 lb (175.09 g) | Tubeaxial | - | 25.40mm | 32.0dB(A) | 2 W | CE, CSA, UL, VDE | 1950 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
MSI1225L24B-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
0 | - |
|
数据表 |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | - | - | Ball | 0.356 lb (161.48 g) | Motorized Impellers | Auto Restart | 25.80mm | - | - | CE, cUL, TUV, UL | - | - | 2 Wire Leads | - |
|

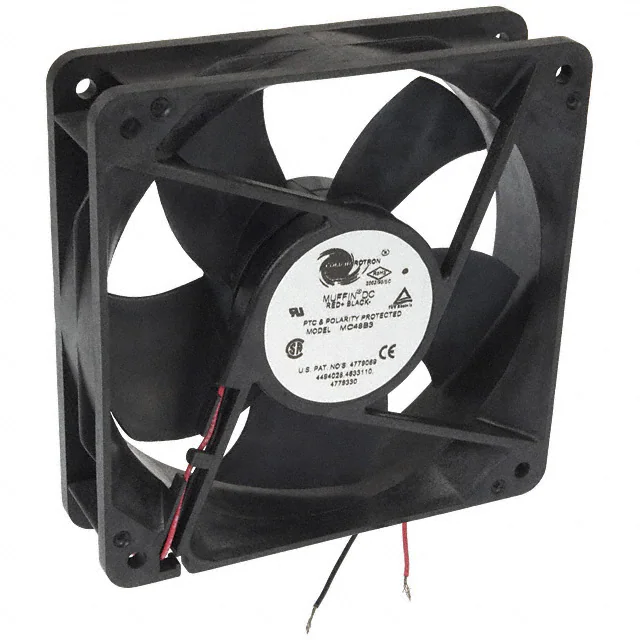

19031792AFAN AXIAL 120X32MM 48VDC MC48K3 |
0 | - |
|
数据表 |
Muffin | - | Active | 48VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.505 in H2O (125.8 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | - | 10.6 W | - | 4100 RPM | - | 2 Wire Leads | - |
|
TGD0412HS-00EA8FAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
TGD | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 39.3 CFM (1.10m³/min) | 5.800 in H2O (1444.7 Pa) | Ball | 0.201 lb (91.17 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 73.0dB(A) | 42 W | cURus, TUV | 27000 Front, 23000 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
PMD1204PPBX-A(2).Z.F.PWM.GNFAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
PMD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 26.7 CFM (0.748m³/min) | 2.330 in H2O (580.4 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control | 56.00mm | 66.6dB(A) | 13.1 W | - | 17600 Front, 13500 Rear | - | 3 Wire Leads | - |
|
|
PFB1248XHEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 306.9 CFM (8.59m³/min) | 2.175 in H2O (541.8 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 55.5dB(A) | 76.8 W | CE, cURus, VDE | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
GF80251B2-000U-AE9FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.232 lb (105.23 g) | Tubeaxial | Auto Restart | 25.00mm | 46.0dB(A) | 3.06 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF80251B3-000U-AE9FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.232 lb (105.23 g) | Tubeaxial | Auto Restart | 25.00mm | 44.5dB(A) | 2.4 W | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF80321B2-000U-AE9FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 55.9 CFM (1.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.241 lb (109.32 g) | Tubeaxial | - | 32.00mm | 43.1dB(A) | 2.76 W | - | 4500 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF80321B3-000U-AE9FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 50.3 CFM (1.41m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.241 lb (109.32 g) | Tubeaxial | - | 32.00mm | 41.1dB(A) | 2.28 W | - | 4100 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
PMD1204PPBX-A(2).Z.R.PWM.GNFAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 26.7 CFM (0.748m³/min) | 2.330 in H2O (580.4 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control | 56.00mm | 66.6dB(A) | 13.1 W | - | 17600 Front, 13500 Rear | - | 3 Wire Leads | - |
|

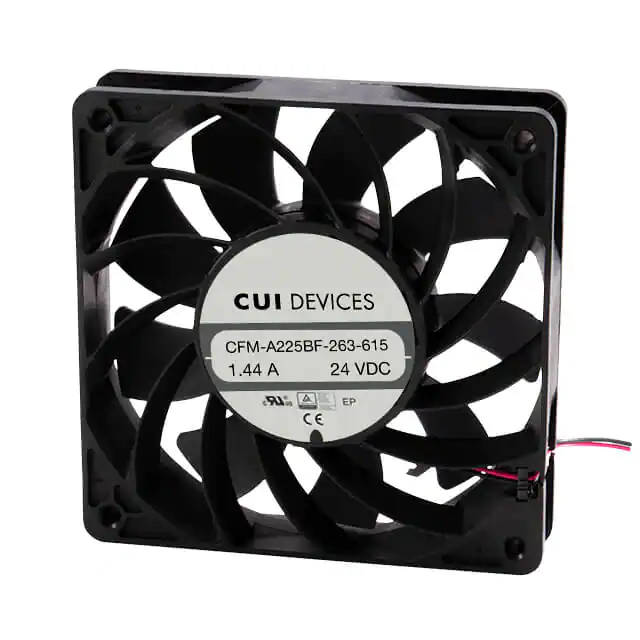

CFM-A238BF-270-651-20FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 230.3 CFM (6.45m³/min) | 1.650 in H2O (411.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 65.1dB(A) | 60.96 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
4214GHFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | - | Sintec | 0.63 lb (285.76 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 5.3 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|
|
12038VA-48R-EA-00FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 38.00mm | - | - | - | - | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
19030714AFAN AXIAL 119.1X39.1MM WD48B7 |
0 | - |
|
数据表 |
Whisper XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 85.0 CFM (2.38m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 39.10mm | 41.1dB(A) | 4.3 W | UL | 2475 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
